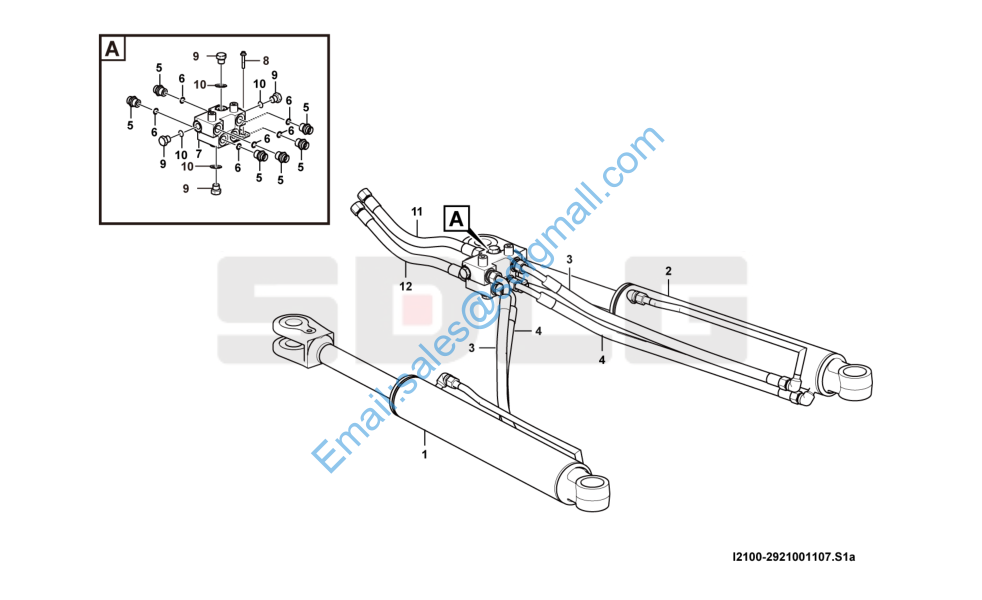

转向缸总成 Steering cylinder system I2100-2921001107

1 4120007561 左转向油缸H SG L-80*50*480-870C Steering cylinder Y 1

2 4120007562 右转向油缸H SG L-80*50*480-870C Steering cylinder Y 1

3 29210010181 转向缸小腔进油胶管 H ose assem bly Y 2

4 29210010191 转向缸大腔进油胶管 H ose assem bly Y 2

5 4041000143 直接头LG B120-02222 N ipple Y 6

6 4041000771 O 形圈LG B168-11924 O -ring Y 6

7 29210010651 分流块 Block Y 1

8 4011001294 螺栓G B16674.1-M 10*20flZnyc-8.8-480 Screw Y 2

9 4041000508 螺塞LG B135-01824 Plug Y 4

10 4041000768 O 形圈LG B168-11524 O -ring Y 4

11 4041002502 软管LG B127-006047 H ose assem bly Y 1

12 4041001667 软管LG B127-006051 H ose Y 1

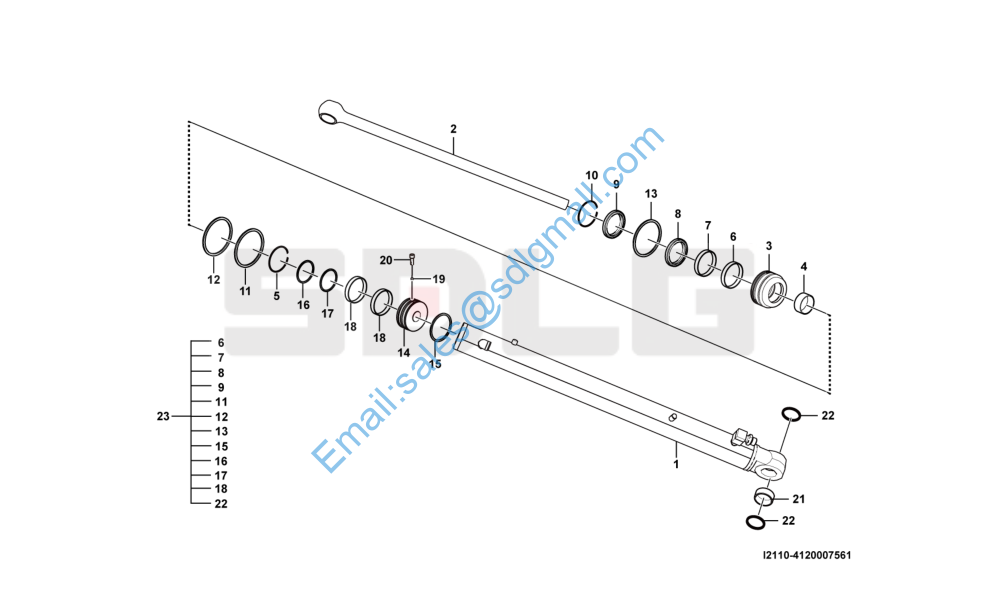

左转向油缸H SG L-8050480-870C(3713CH ) Steering cylinder assem bly I2110-4120007561

1 4120007561001 缸筒总成-左24A141290 Cylinder tube Y 1
2 4120005995002 活塞杆总成24A114170 Piston rod Y 1
3 4120008298003 缸盖24C105280 Cover Y 1
4 4120006629004 衬套24S250251 Bushing Y 1
5 4120006629005 钢丝挡圈-孔用24C090100 Retaining ring Y 1
6 4120006629006 密封件-缓冲24H 005004 Sealing ring N 1
7 4120005996004 密封件-活塞杆24F205003 Sealing ring N 1
8 4120008232002 挡圈-U 形圈24E00502C Retaining ring N 1
9 4120005996005 密封件-防尘24D 205002 Sealing ring N 1
10 4120006629009 钢丝挡圈-孔用24C090130 Retaining ring Y 1
11 4120006310007 O 形圈24K10750A O -ring N 1
12 4120008298008 挡圈-O 形圈24M 10800C Sealing ring N 1
13 4120006310009 O 形圈24K308001 O -ring N 1
14 4120008298009 活塞24C106230 Piston Y 1
15 4120006310016 密封件-活塞24P208002 Sealing ring N 1
16 4120005996008 O 形圈24K10500A Sealing ring N 1
17 4120008298012 挡圈-O 形圈24M 10550C Sealing ring N 1
18 4120005559012 支承环24G 208021 Sealing ring N 2
19 4120006603018 钢球24U 004001 Ball Y 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M 6*12L Screw Y 1
21 4120005996003 轴套24C116070 Bushing Y 1
22 4120005996010 销边防尘24R304530 Sealing ring Y 2
23 4120007561002 密封件维修包24A103920S Sealing kit Y 1

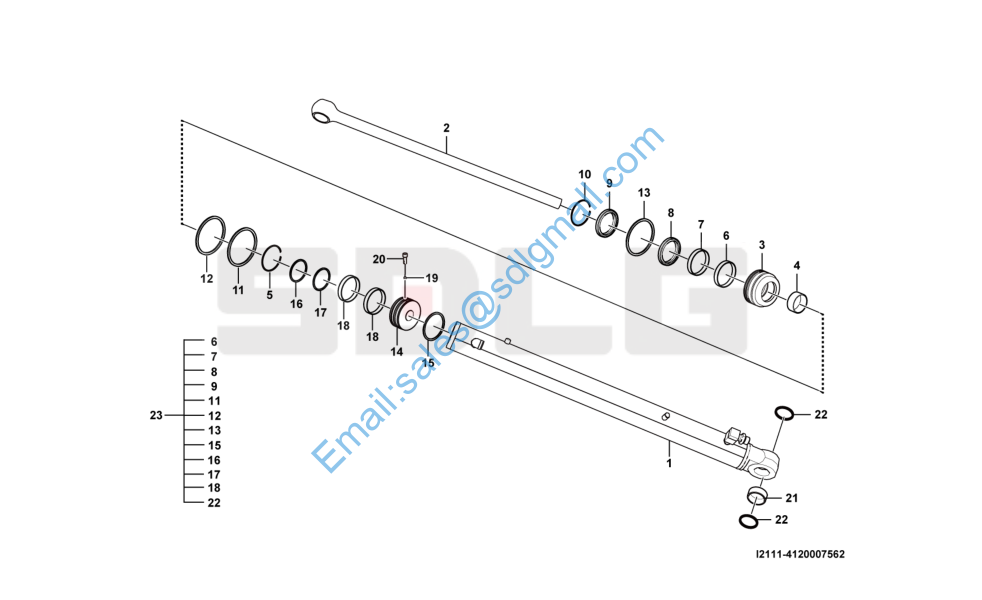

右转向油缸H SG L-8050480-870C(3713CH ) Steering cylinder assem bly I2111-4120007562

1 4120007562001 缸筒总成-右24A141320 Cylinder tube Y 1
2 4120005995002 活塞杆总成24A114170 Piston rod Y 1
3 4120008298003 缸盖24C105280 Cover Y 1
4 4120006629004 衬套24S250251 Bushing Y 1
5 4120006629005 钢丝挡圈-孔用24C090100 Retaining ring Y 1
6 4120006629006 密封件-缓冲24H 005004 Sealing ring N 1
7 4120005996004 密封件-活塞杆24F205003 Sealing ring N 1
8 4120008232002 挡圈-U 形圈24E00502C Retaining ring N 1
9 4120005996005 密封件-防尘24D 205002 Sealing ring N 1
10 4120006629009 钢丝挡圈-孔用24C090130 Retaining ring Y 1
11 4120006310007 O 形圈24K10750A O -ring N 1
12 4120008298008 挡圈-O 形圈24M 10800C Sealing ring N 1
13 4120006310009 O 形圈24K308001 O -ring N 1
14 4120008298009 活塞24C106230 Piston Y 1
15 4120006310016 密封件-活塞24P208002 Sealing ring N 1
16 4120005996008 O 形圈24K10500A Sealing ring N 1
17 4120008298012 挡圈-O 形圈24M 10550C Sealing ring N 1
18 4120005559012 支承环24G 208021 Sealing ring N 2
19 4120006603018 钢球24U 004001 Ball Y 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M 6*12L Screw Y 1
21 4120005996003 轴套24C116070 Bushing Y 1
22 4120005996010 销边防尘24R304530 Sealing ring Y 2
23 4120007562002 密封件维修包24A103930S Sealing kit Y 1
