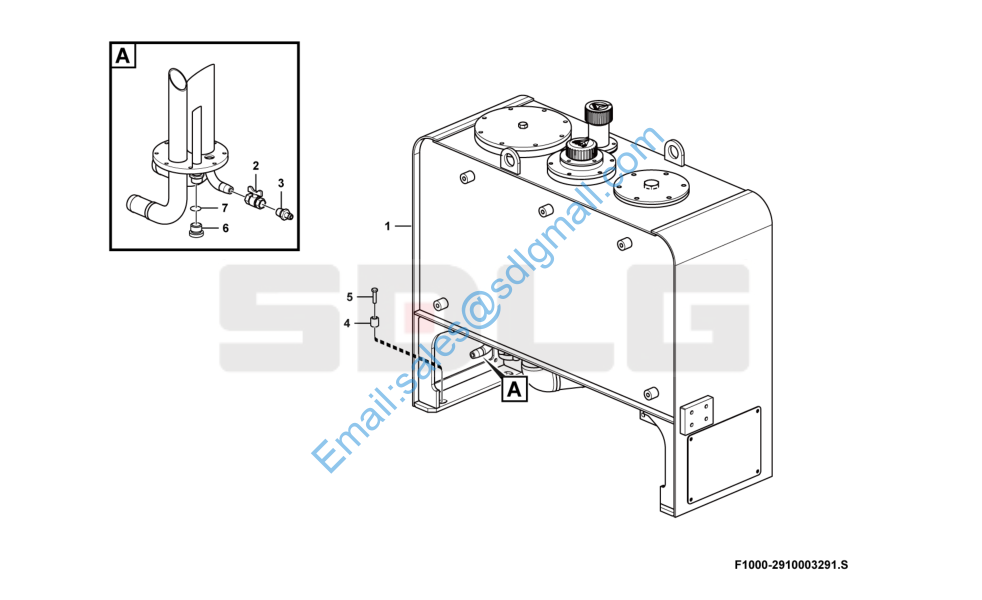

液压油箱总成 H ydraulic fluid tank system F1000-2910003291

1 29100032921 液压油箱 H ydraulic fluid tank Y 1

2 4120000099 球阀M BS216-1/2″ V alve Y 1

3 29100009061 放油接头 N ipple Y 1

4 4043003437 防松套LG B331-16*30*30flZnyc-45 Attaching sleeve Y 4

5 4011001429 螺栓G B5782-M 16*70flZnyc-10.9-480 H exagon screw Y 4

6 4041000680 堵塞LG B142-03016 Plug Y 1

7 4030000241 O 形圈G B3452.1-20.0*1.80G O -ring Y 1

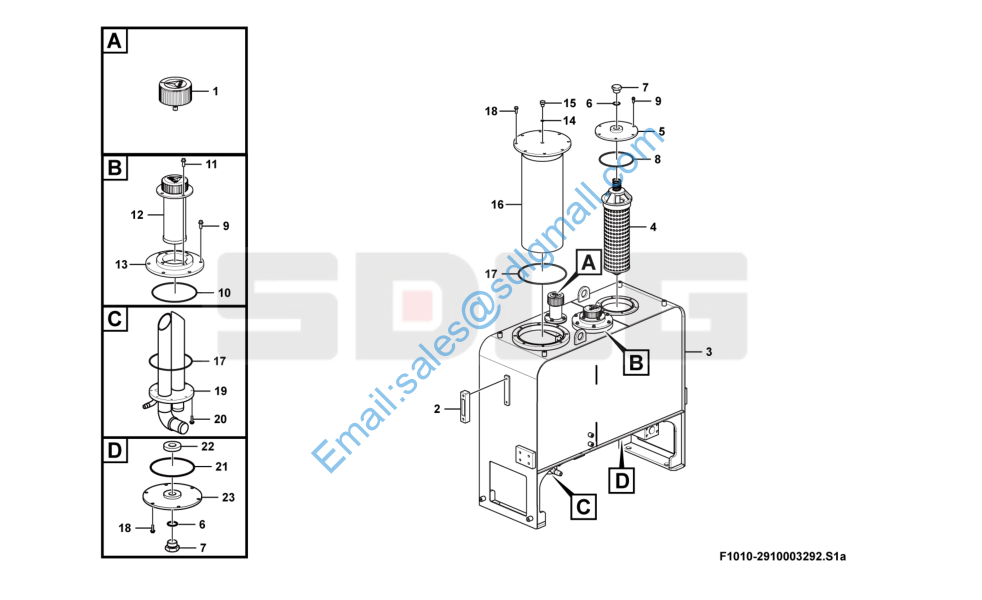

液压油箱 H ydraulic fluid tank F1010-2910003292

1 4120001088 换气过滤器L1.0807-31 Breather cap Y 1

2 4120003116 液位计YW Z-127-LG W ater level gauge Y 1

3 29100034881 液压油箱体 H ydraulic fluid tank N 1

4 4120003296 液压油箱回油滤芯 Filter insert Y 1

5 29100027921 回油法兰盖总成 Flange Y 1

6 4041000765 O 形圈LG B168-12931 O -ring Y 2

7 4041000192 螺塞LG B135-03341 Plug Y 2

8 4030000021 O 形圈G B3452.1-160*5.30G O -ring Y 1

9 4011000458 螺栓G B16674-M 8*20EpZn-8.8 Bolt Y 10

10 4030000452 O 形圈G B3452.1-160*3.55G O -ring Y 1

11 4011000461 螺栓G B16674-M 8*16EpZn-8.8 Bolt Y 4

12 4120005960 带锁加油滤芯 Filter insert Y 1

13 29100023251 法兰座 Seat Y 1

14 4041000767 O 形圈LG B168-11124 O -ring Y 1

15 4041000774 螺塞LG B135-01422 Plug Y 1

16 29100015481 吸油法兰总成 Flange Y 1

17 4030000598 O 形圈G B3452.1-230*5.30G O -ring Y 2

18 4011000474 螺栓G B16674-M 10*25EpZn-8.8 Bolt Y 14

19 29100032931 吸油法兰 Flange Y 1

20 4011000164 螺栓G B16674-M 10*35EpZn-8.8 Bolt Y 8

21 4030000234 O 形圈G B3452.1-212*5.30G O -ring Y 1

22 4190000008 环形磁铁LG 03-CT76*32*15 M agnet Y 1

23 29100001041 法兰盖 Flange Y 1

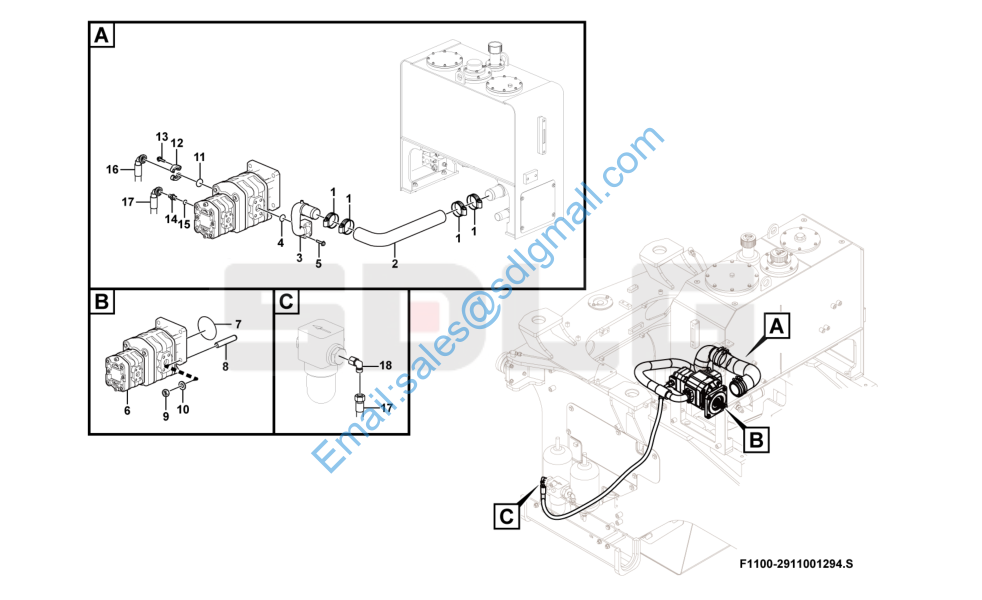

工作泵总成 W orking hydraulic pum p assem bly F1100-2911001294

1 4017000013 喉箍JB8870-d90 Clam p Y 4

2 29110012961 工作泵吸油胶管 H ose Y 1

3 29110012152 工作泵吸油钢管 Pipe Y 1

4 4030000482 O 形圈G B3452.1-50.0*3.55G O -ring Y 1

5 4011001530 螺栓G B16674.1-M 12*60flZnyc-8.8-480 Screw Y 4

6 4120007576 双联泵63/16 G ear pum p Y 1

7 4030000633 O 形圈G B3452.1-128*3.55G O -ring Y 1

8 4012000082 螺柱G B898-M 12*35flZnyc-8.8-480 Stud Y 4

9 4013000368 螺母G B6170-M 12flZnyc-8-480 N ut Y 4

10 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 4

11 4030000026 O 形圈G B3452.1-32.5*3.55G O -ring Y 2

12 4041000026 分体法兰LG B117-310491 Flange half Y 2

13 4011001300 螺栓G B16674.1-M 10*30flZnyc-8.8-480 Screw Y 8

14 4041000766 直接头LG B120-01818 N ipple Y 1

15 4041000768 O 形圈LG B168-11524 O -ring Y 1

16 29110012591 泵出油胶管 H ose assem bly Y 1

17 4041002713 软管LG B128-005151 H ose assem bly Y 1

18 4041001464 组合接头LG B143-11810 N ipple Y 1
