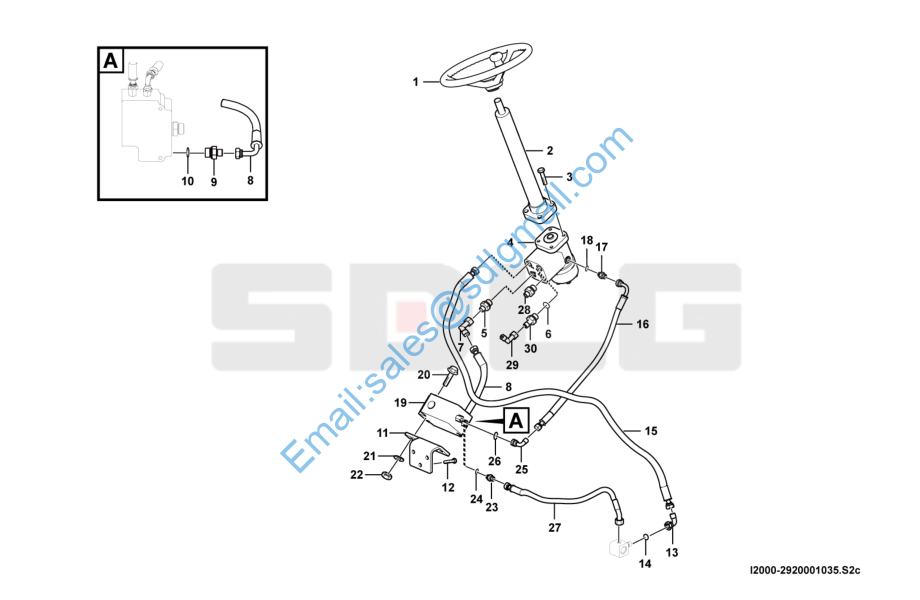

转向器总成 Steering gear I2000-2920001035

1 4120000018 方向盘FXP-50F Steering wheel Y 1

2 4120005368 转向柱LG20-ZXZ-27 Steering column Y 1

3 4011000163 螺栓GB16674-M10*40EpZn-8.8 Bolt Y 4

4 4120005369 转向器BZZ5-E250B Control valve Y 1

5 4041000564 直接头LGB120-02620 Nipple Y 1

6 4041000783 O形圈LGB168-11724 O-ring Y 4

7 29200009771 组合接头 Elbow nipple Y 1

8 29200008251 转向器进油胶管 Hose assembly Y 1

9 4041000187 直接头LGB120-02622 Nipple Y 1

10 4041000771 O形圈LGB168-11924 O-ring Y 1

11 29200010431 固定板 Anchor plate Y 1

12 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 3

13 4041001023 组合接头LGB143-01608 Nipple Y 1

14 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1

15 4041000856 软管LGB164-004075 Hose assembly Y 1

16 4041002079 软管LGB128-003038 Hose assembly Y 1

17 4041000131 直接头LGB120-01412 Nipple Y 2

18 4041000784 O形圈LGB168-10924 O-ring Y 2

19 4120004058 优先阀VLE-150-16 Priority valve Y 1

20 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 2

21 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

22 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

23 4041000084 直接头LGB155-01214 Nipple Y 1

24 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 1

25 4041001047 组合接头LGB143-01406 Nipple Y 1

26 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1

27 4041002104 软管LGB166-003045 Hose assembly Y 1

28 29200010381 直接头M20-M16 Nipple Y 2

29 29200010441 组合接头M16-67° Nipple Y 2

30 29200010391 加高直接头M20-M16 Nipple Y 1

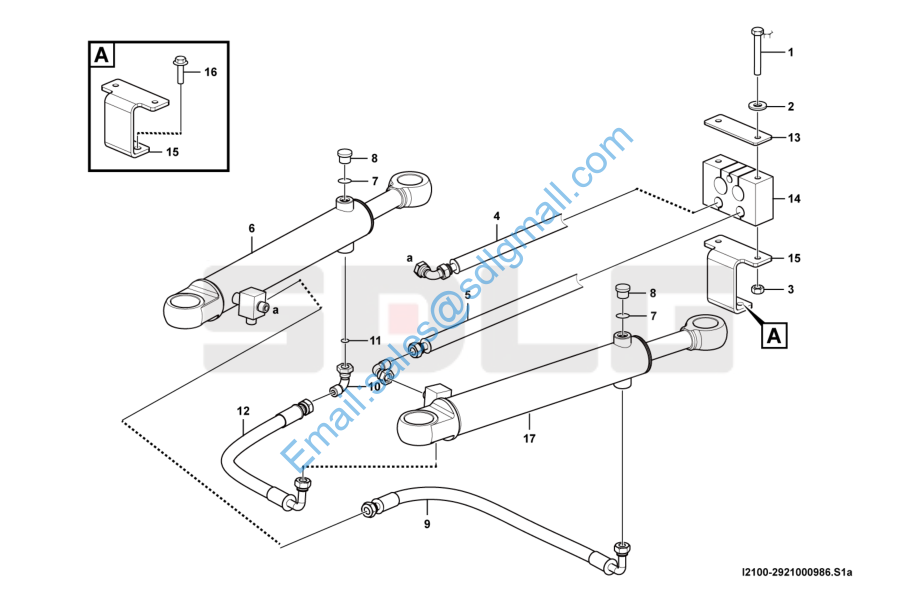

转向缸总成 Steering cylinder I2100-2921000986

1 4011000720 螺栓GB5782-M8*100EpZn-8.8 Bolt Y 2

2 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

3 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

4 4041002080 软管LGB128-004130 Hose assembly Y 1

5 4041001144 软管LGB128-004125 Hose assembly Y 1

6 4120006254 右转向油缸HSGL-50*30*295-590 Steering cylinder Y 1

7 4041000767 O形圈LGB168-11124 O-ring Y 2

8 4041000774 螺塞LGB135-01422 Plug Y 2

9 4041002287 软管LGB128-004056 Hose assembly Y 1

10 4041001023 组合接头LGB143-01608 Nipple Y 1

11 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1

12 4041000606 软管LGB128-004050 Hose Y 1

13 29210009621 压板 Plate Y 1

14 29210009611 橡胶管夹 Clamp Y 1

15 29210009601 固定板 Anchor plate Y 1

16 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 2

17 4120006253 左转向油缸HSGL-50*30*295-590 Steering cylinder Y 1

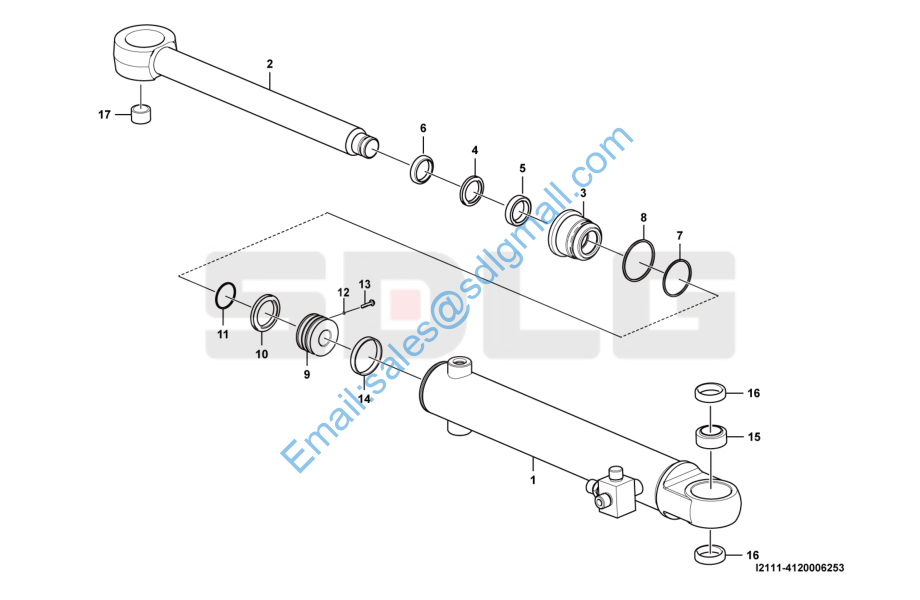

左转向油缸(3713CH) Steering cylinder I2110-4120006253

1 4120006253001 缸筒总成-左24A137040 Cylinder tube Y 1

2 4120006254002 活塞杆24A111140 Piston rod Y 1

3 4120006254003 缸盖24A170410 Cover Y 1

4 4120006254004 密封件包 Sealing ring kit Y 1

5 4120006254004 密封件包 Sealing ring kit Y 1

6 4120006254004 密封件包 Sealing ring kit Y 1

7 4120006254004 密封件包 Sealing ring kit Y 1

8 4120006254004 密封件包 Sealing ring kit Y 1

9 4120006254005 活塞24A180390 Piston Y 1

10 4120006254004 密封件包 Sealing ring kit Y 1

11 4120006254004 密封件包 Sealing ring kit Y 1

12 4120006316009 钢球24U004501 D4.5 Ball N 1

13 4120006254006 螺钉-内六角平端紧定24T608081 Screw Y 1

14 4120006254004 密封件包 Sealing ring kit Y 1

15 4120006254007 关节轴承24U103001 Spherical plain bearing Y 1

16 4120006254008 挡环24C014100 Retaining ring Y 2

17 4120006254009 轴套24C081020 Bushing Y 1

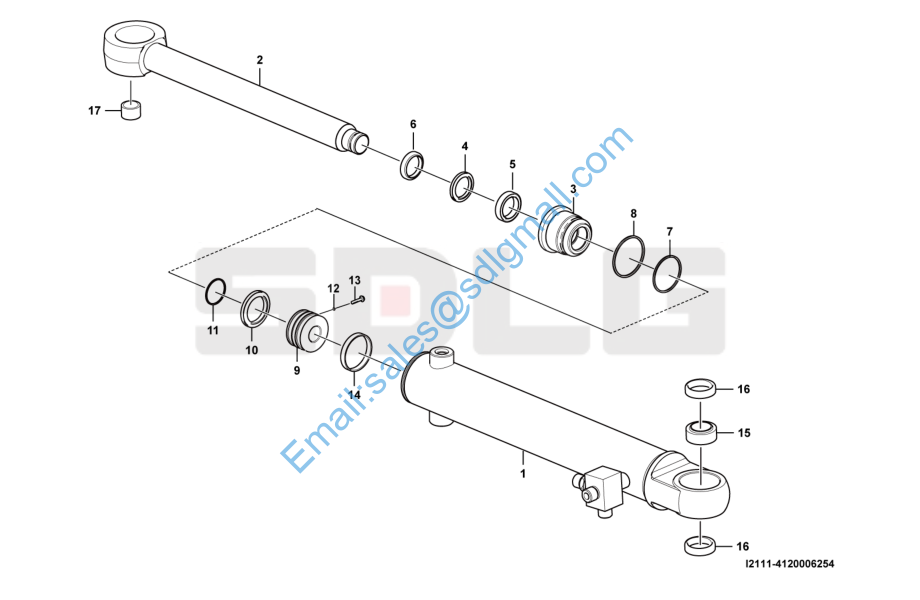

右转向油缸(3713CH) Steering cylinder I2110-4120006254

1 4120006254001 缸筒总成-右24A137070 Cylinder tube Y 1

2 4120006254002 活塞杆24A111140 Piston rod Y 1

3 4120006254003 缸盖24A170410 Cover Y 1

4 4120006254004 密封件包 Sealing ring kit Y 1

5 4120006254004 密封件包 Sealing ring kit Y 1

6 4120006254004 密封件包 Sealing ring kit Y 1

7 4120006254004 密封件包 Sealing ring kit Y 1

8 4120006254004 密封件包 Sealing ring kit Y 1

9 4120006254005 活塞24A180390 Piston Y 1

10 4120006254004 密封件包 Sealing ring kit Y 1

11 4120006254004 密封件包 Sealing ring kit Y 1

12 4120006316009 钢球24U004501 D4.5 Ball N 1

13 4120006254006 螺钉-内六角平端紧定24T608081 Screw Y 1

14 4120006254004 密封件包 Sealing ring kit Y 1

15 4120006254007 关节轴承24U103001 Spherical plain bearing Y 1

16 4120006254008 挡环24C014100 Retaining ring Y 2

17 4120006254009 轴套24C081020 Bushing Y 1
