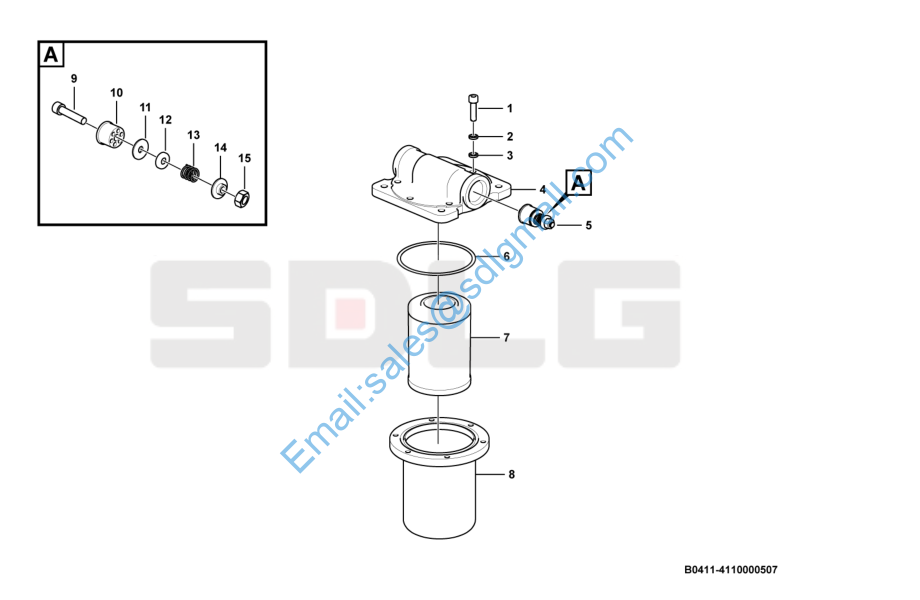

L916 SDLG 滤清器（410710） Oil filter 总成编号/Assembly NO. B0411-4110000507

1 4011000448 螺钉GB70.1-M8*30EpZn-8.8 Screw Y 6

2 4015000036 垫圈GB93-8-65Mn Spring washer Y 6

3 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 6

4 4110000507057 上壳体QF60M33G-1-001 Cover N 1

5 4110000507058 旁通阀QF60M33G-1-100 By-pass valve N 1

6 4030000305 O形圈GB3452.1-106*3.55G O-ring Y 1

7 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1

8 4110000507060 滤筒焊合件QF60M33G-1-200 Filter cartridge N 1

9 4014000119 螺钉GB70.1-M8*55EpZn-8.8 Screw Y 1

10 4110000507061 旁通阀壳体QF60M33G-1-101 Valve shelf N 1

11 4110000507062 密封垫DFM50S2T-10BG-204 Sealing washer N 1

12 4110000507063 弹簧座QF60M33G-1-102 Spring seat N 1

13 4110000507064 旁通阀弹簧QF60M33G-1-104 Spring N 1

14 4110000507065 弹簧盖QF60M33G-1-103 Spring plate N 1

15 4013000360 螺母GB6182-M8EpZn-9 Nut Y 1

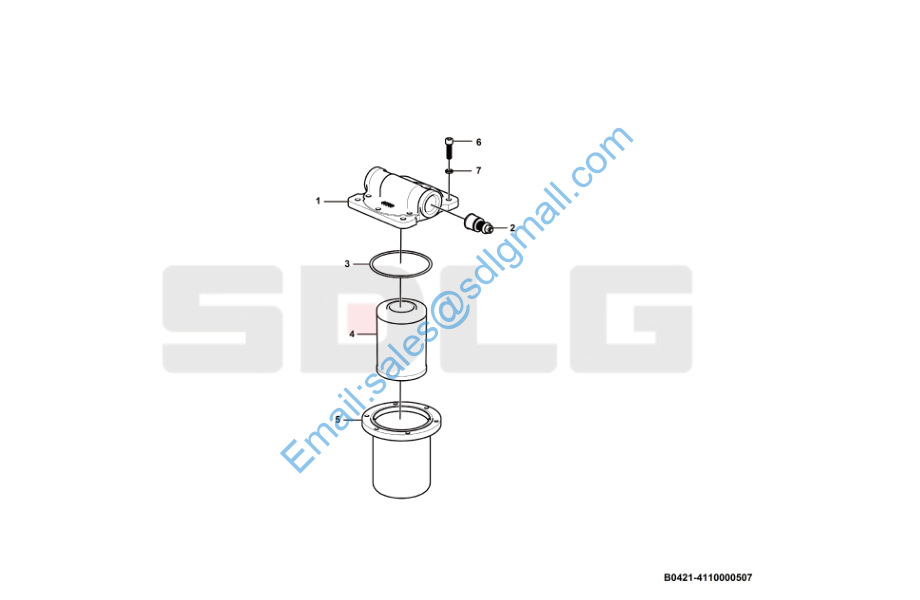

1 4110000507002 上壳体PYQ120A-001 Housing Y 1

2 4110000507003 旁通阀SFM360-300 Valve Y 1

3 4110000507004 胶圈PYQ120A-002W Sealing ring Y 1

4 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1

5 4110000507005 下壳体PYQ120A-200 Housing Y 1

6 4014000128 螺钉GB70-M8*25EpZn-8.8 Screw Y 6

7 4015000036 垫圈GB93-8-65Mn Spring washer Y 6

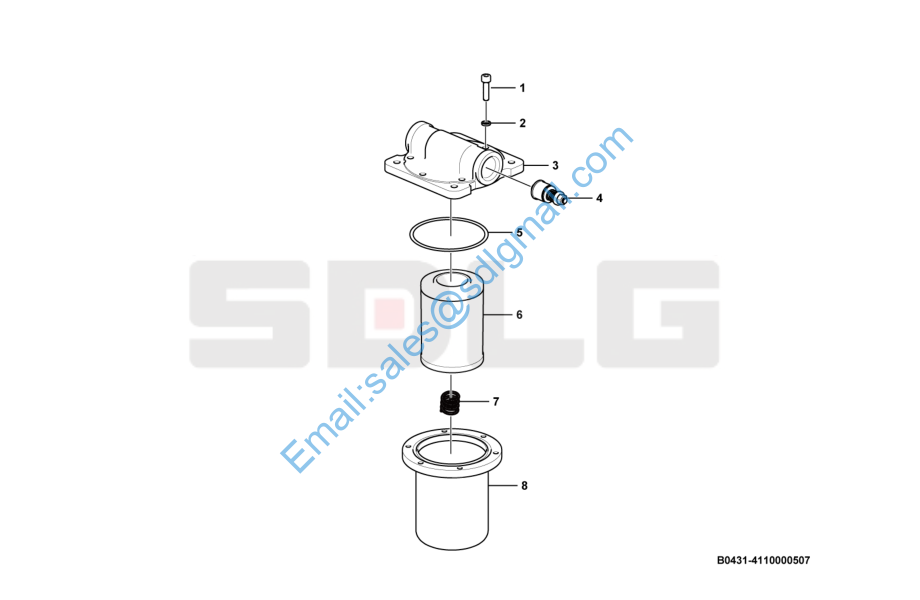

1 4011000448 螺钉GB70.1-M8*30EpZn-8.8 Screw Y 6

2 4015000036 垫圈GB93-8-65Mn Spring washer Y 6

3 4110000507052 上盖QF60M33G-1-01 Cover Y 1

4 4110000507053 旁通阀QF60M33G-1-02 By-pass valve N 1

5 4110000507054 O型圈QF60M33G-1-03 O-ring Y 1

6 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1

7 4110000507055 弹簧QF60M33G-1-06 Spring Y 1

8 4110000507056 筒体QF60M33G-1-05 Filter cartridge Y 1

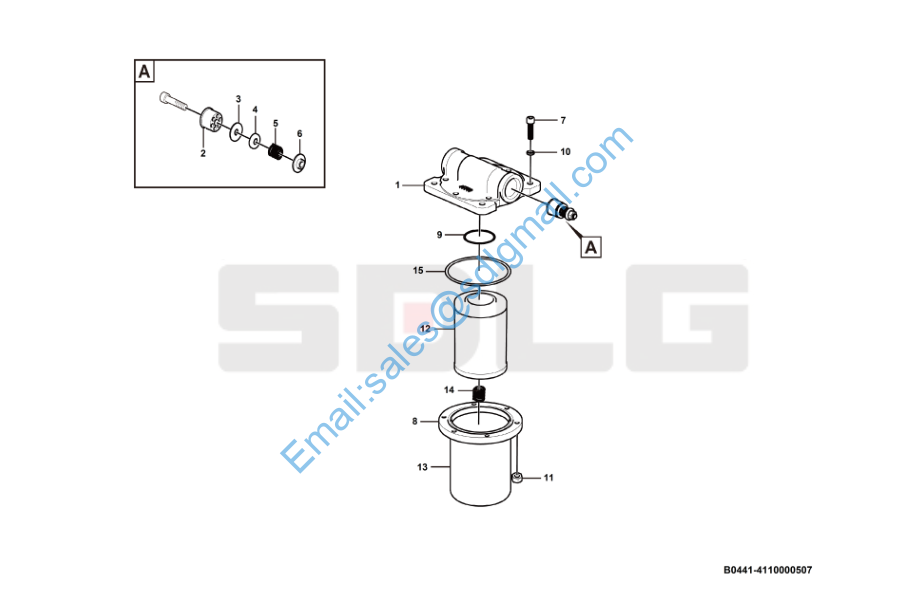

1 4110000507020 底座JS-LQQX-01 Seat N 1

2 4110000507021 阀体JS-LQQ-05-05 Valve body N 1

3 4110000507023 密封垫JS-LQQ-05-04 Sealing washer N 1

4 4110000507024 弹簧支撑JS-LQQ-05-03 Spring support N 1

5 4110000507025 弹簧JS-LQQ-05-02 Spring N 1

6 4110000507026 压紧螺母JS-LQQ-05-01 Nut N 1

7 4014000235 螺钉GB2671.2-M8*40EpZn-8.8 Screw Y 6

8 4110000507027 滤清器压板JS-LQQX-04 Plate N 1

9 4110000507028 O型密封圈44*3.1 JS-LQQ-06 Sealing ring Y 1

10 4015000036 垫圈GB93-8-65Mn Spring washer Y 6

11 4013000033 螺母GB6170-M8EpZn-8 Nut Y 6

12 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1

13 4110000507029 外罩JS-LQQX-03 Cover N 1

14 4110000507030 支撑簧JS-LQQX-08 Spring N 1

15 4110000507031 密封圈106*3.1 JS-LQQX-07 Sealing ring Y 1
