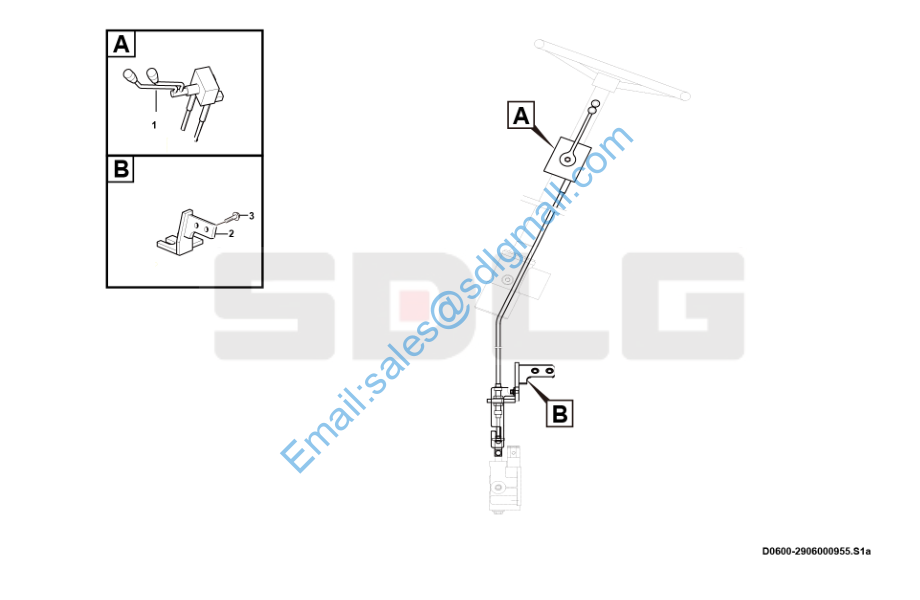

L916 SDLG 变速操纵总成 Control mechanism 总成编号/Assembly NO. D0600-2906000955

1 4110002149 变速操纵机构LG916D Control mechanism Y 1
2 29060009561 软轴固定支架 Bracket Y 1
3 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 2

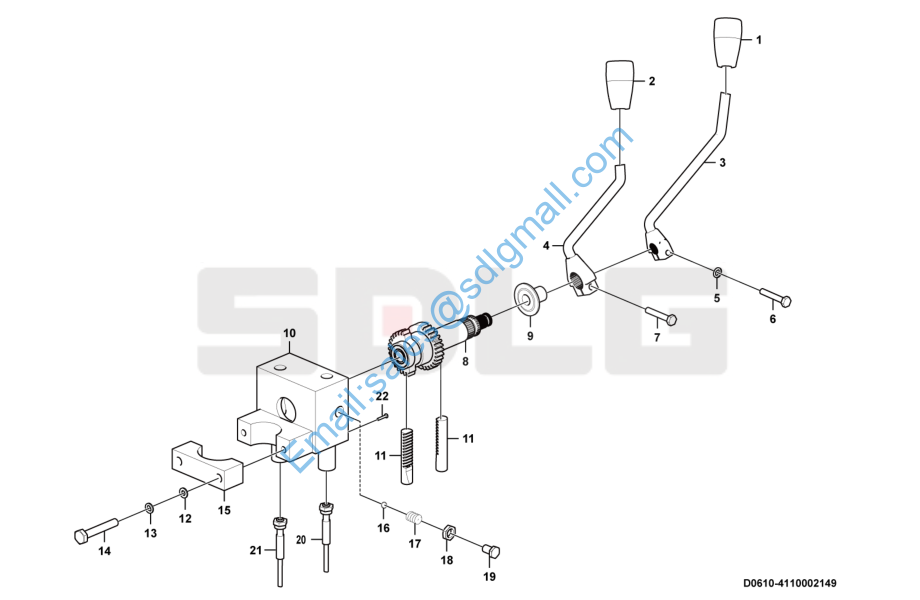

变速操纵机构LG916D(130501) Shift mechanism D0610-4110002149

1 4190002767001 换挡手球LGH9180001 Handle ball Y 1

2 4190002767002 高低速手球LGH9180002 Handle ball Y 1

3 4110002149001 换挡手柄焊合LGH9180003 Connecting rod Y 1

4 4190002767004 高低速手柄焊合LGH9180004 Connecting rod Y 1

5 4190002767005 φ6弹垫TD-001 Spring washer td-001 φ6 N 2

6 4190002767006 M6×1-25螺栓LGH9330007 Bolt N 2

7 4190002767007 M6×1-30螺栓LGH9180005 Bolt N 2

8 4190002767008 齿轮轴组合件LGH9180006 Shaft Y 1

9 4190002767009 连接颈LGH9180007 Link Y 1

10 4110002149002 换挡盒焊合件LGH916D0001 Box Y 1

11 4190002767011 齿条LGH9180009 Gear rack Y 2

12 4110002042019 平垫Φ8 PD-002 Washer Y 2

13 4110002042020 弹垫Φ8 TD-002 Washer Y 2

14 4011000702 螺栓GB5783-M8*50EpZn-8.8 Bolt Y 2

15 4110002149006 固定块LGH9530008-1 Block Y 1

16 4190002767016 φ8钢珠GZ-001 Ball N 2

17 4110002149005 弹簧LGH93300010 Spring Y 2

18 4190002767018 M12×1.25螺母RM-008-01 Nut rm-008-01 m12×1.25 N 2

19 4190002767019 M12×1.25-15螺栓LGH9330009 Bolt N 2

20 4110002149003 软轴总成LGHR916D0001 Control cable Y 1

21 4110002149004 软轴总成LGHR916D0002 Control cable Y 1

22 4190002767022 M6-7沉头螺栓LGH9330016 Bolt N 3
