Description

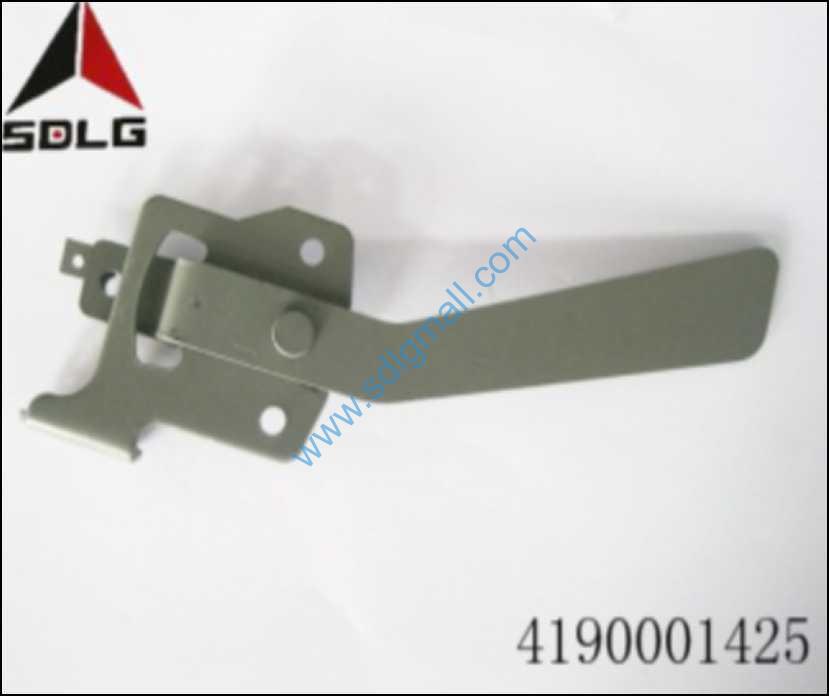

4190001425 HANDLE
| 26170012241 | 斗杆 | digging arm |
| 11213405 | 停用-轴套 | bushing |
| 11213406 | 停用-轴套 | bushing |
| 11213407 | 轴套 | bushing |
| 11210001 | 油杯 | grease cup |
| 26170012231 | 斗杆装配 | arm assembly |
| H34-6135 | 斗杆油缸 | ARM CYLINDER |
| 4011000048 | 螺栓GB5782-M10*50EpZn-8.8 | bolt |
| 4015000025 | 垫圈GB93-10-65Mn | spring washer |
| 4014000180 | 螺钉GB70.1-M8*30EpZn-10.9 | BOLT GB70.1-M8*30EpZn-10.9 |
| 4120003665 | O形圈21.89*2.622-118N552-90 | o-ring |
| 4120003126001 | 密封件包 | sealing ring kit |
| 4120003126001 | 密封件包 | sealing ring kit |
| 4120003126001 | 密封件包 | sealing ring kit |
| 4120003126001 | 密封件包 | sealing ring kit |
| 4014000072 | 螺钉GB77-M10*12EpZn-33H | BOLT |
| 4090000183 | 钢球GB308-6.5-GCr15 | STEEL BALL GB308-6.5-GCr15 |
| 4120003126001 | 密封件包 | sealing ring kit |
| 4120003126004 | 卡箍组件02165.0026Y.600 | clamp |
| 4120003126005 | 压板Q/HL 102118-2010 YB-04 | plate |
| 4011000184 | 螺栓GB5783-M10*40EpZn-8.8 | bolt |
| 4015000025 | 垫圈GB93-10-65Mn | spring washer |
| 4013000007 | 螺母GB6170-M10EpZn-8 | nut |
| 4120003126003 | 活塞杆02165.0026Y.100A | piston rod |
| 4120003126006 | 端盖02165.0026Y.007A | CYLINDER COVER 02165.0026Y.007A |
| 4120003126007 | 缸体组件02165.0026Y.200 | CYLINDER BODY 02165.0026Y.200 |
| 4120003126008 | 油管组件A 02165.0026Y.500 | pipe |
| 4120003126009 | 缓冲套Q/HL 102102-2010 d=75 | rubber sleeve |
| 4120003126002 | 活塞02165.0026Y.008 | PISTON 02165.0026Y.008 |
| 4120003126010 | 螺母02165.0026Y.003 | NUT 02165.0026Y.003 |
