Description

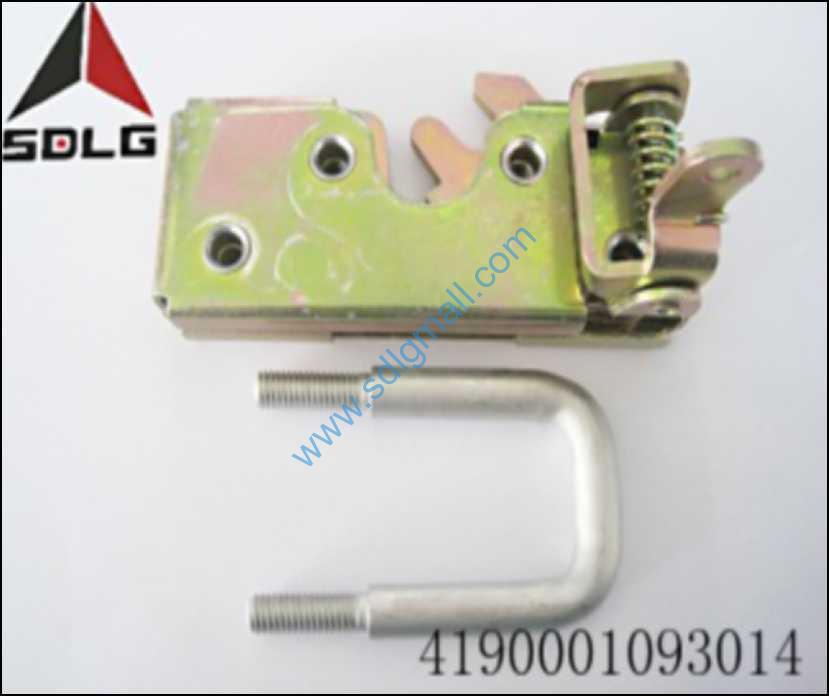

4190001093014 Positioning lock
| A100-6300 | 增压器进气管装置图 | Elbow connector |
| 4110000970167 | 进气弯管F04257229 | inlet hose |
| 4110000970133 | 软管管箍DIN 3017-A-90-110X13-W1-2 CQ676110B | clip |
| 4110000970134 | 软管管箍DIN 3017-A-110-130X13-W1-2 CQ676130B | clip |
| A101-6300 | 前悬运输支架逻辑总成 | Engine mounting |
| 4110000727155 | 前悬左支架F04288659 | engine anchorage |
| 4110000727046 | 平垫圈3701623-30D | plain washer |
| 4110000727171 | 六角头螺栓CQ1501640TF36 | screw |
| kongbai | kongbai | |
| 4110000727156 | 前悬右支架F04288660 | engine anchorage |
| A102-6300 | 起动机逻辑总成 | Starter |
| 4110000509315 | 六角头凸缘螺栓EN 1662-F-M10X38-10.9-ZNAL-A 1308626-52D | screw |
| 4110000988095 | 起动机 D01183290 | starter motor |
| A103-6300 | 紧固件 | Fastenings |
| 4110000727049 | 垫片 DIN 125-A 5,3-140HV-A4C B01107089 | plain washer |
| 4110000727177 | 六角螺母CQ34005TF36 | hexagon nut |
| A104-6300 | 堵逻辑总成 | Blanking parts |
| 4110000727018 | 螺塞DIN 908-M26X1.5-ST-A4C 1013632-52D | plug |
| 4110000509307 | 密封垫7603-A26X31-CU 1013633-52D | sealing ring |
| A105-6300 | 堵-停油电磁阀安装孔 | Blanking parts |
| 4110001007075 | 塞堵3754022-30D | plug |
| 4110001007076 | 圆形密封圈3754631-52D | o-ring |
| A10-6300 | 增压空气冷却器，管道阀门系统 | Charge air cooler, plumbing |
| 11212278 | 管夹 | clamp |
| 11212343 | 管夹 | clamp |
| 11210091 | 螺钉 | six point socket screw |
| 11210032 | 法兰螺钉 | flange screw |
| 11214711 | 中冷器进气管 | hose |
| 11214709 | 中冷器出气管 | hose |
| 11214710 | 软管 | hose |
| kongbai | kongbai | |
| 11212901 | 管夹 | clip |
| 11212902 | 支架 | bracket |
| 11210033 | 法兰螺钉 | flange screw |
| A106-6300 | 后吊耳逻辑总成 | Hitch lug |
| 4110000727003 | 后吊耳－气缸盖1003061-52D | lifting bracket |
| 4110000509052 | 六角头凸缘螺栓EN 1662-F-M10X25-10.9-ZNAL-A 1023614-52D | bolt |
| A107-6300 | 控制单元装置 | Control unit |
| 4110000970180 | ECU D04218015-BF6M1013-18T2-0878 | control unit |
| A108-6300 | 进气温度压力传感器总成 | Pressure sensor |
| 4110000727045 | 螺栓-涂密封材料EN1662-F-M6*20-10.9-ZNAl 3602666-30D | screw |
| 4110000727110 | 进气压力温度传感器总成D04213838 | temperature sensor |
| A109-6300 | 线束总成 | Cable harness |
| 26370003901 | EMR2线束 | cable harness |
| 4110000970031 | 内部连接线缆D04213153 | cable |
| A111-6300 | 预热器孔堵塞 | Blanking parts |
| 4110000727047 | 预热器孔堵塞3750211-56D | plug |
| A113-6300 | 转速传感器 | Impulsetransmitter |
| 4110000970027 | 速度传感器D01182850 | tachometer sensor |
| 4110000727192 | 六角头凸缘螺栓Q1840612TF36 | screw |
| A114-6300 | 脉冲信号发生器 | Impulsetransmitter |
| 4110000970026 | 脉冲信号发生器D01182834 | impulse sensor |
| 4110000727193 | 六角头凸缘螺栓Q1840616TF36 | screw |
| A11-6300 | 冷却系统 | Cooling system |
| 11214595 | 副水箱总成 | expansion tank |
| 11214712 | 副水箱 | tank |
| 11210240 | 液位传感器 | level sensor |
| 11210224 | 密封环 | sealing ring |
| 11210226 | 轴环 | collar |
| 11210225 | 密封环 | sealing ring |
| 11211145 | 压力盖 | pressure cap |
| 11210227 | 副水箱环箍 | tensioning band |
| kongbai | kongbai | |
| 11212280 | 停用-六角螺钉 | flange screw |
| 11210040 | 六角螺钉 | flange screw |
| 11211655 | 管夹 | insulating clip |
| 11210034 | 法兰螺钉 | flange screw |
| 11210033 | 法兰螺钉 | flange screw |
| 11210036 | 法兰螺钉 | flange screw |
| 11212368 | 密封条 | weatherstrip |
| 11211714 | 防护层 | cover |
| 11211136 | 卡箍 | hose clamp |
| 11211137 | 管夹 | hose clamp |
| 11210026 | 喉箍 | hose clamp |
| 11211629 | 锁紧螺母 | jam nut |
| 11210027 | 喉箍 | hose clamp |
| 11210695 | 垫圈 | washer |
| 11210232 | 限位块 | restrictor |
| 11210254 | 管夹 | clip |
| 11210260 | 管夹 | clip |
| kongbai | kongbai | |
| kongbai | kongbai | |
| 11212355 | 水管 | hose |
| 11216862 | 连接管 | hose |
| 11212357 | 水管 | hose |
| 11212341 | 水管 | hose |
| 11216849 | 软管 | hose |
| kongbai | kongbai | |
| 11212321 | 过渡钢管 | pipe |
| kongbai | kongbai | |
| 11216863 | 软管 | hose |
| kongbai | kongbai | |
| kongbai | kongbai | |
| 11212314 | 防护层 | guard |
| A12-6300 | 散热器 | Radiator |
| 11210199 | 垫圈 | plain washer |
| 11210223 | 六角螺钉 | hexagon screw |
| 11212277 | 中冷器 | charge air cooler |
| 11212285 | 水散热器 | radiator |
| 11212311 | 液压油散热器 | oil cooler |
| 11212316 | 滑槽 | channel housing |
| 11212286 | 板 | bracket |
| 11212320 | 网 | net |
| 11212317 | 十字杆 | track rod |
| 11212318 | 支架 | bracket |
| 11212276 | 橡胶减震器 | rubber damper |
| 11212275 | 泄放管 | bleeder nipple |
| 11212287 | 放水阀 | valve |
| kongbai | kongbai |
