Description

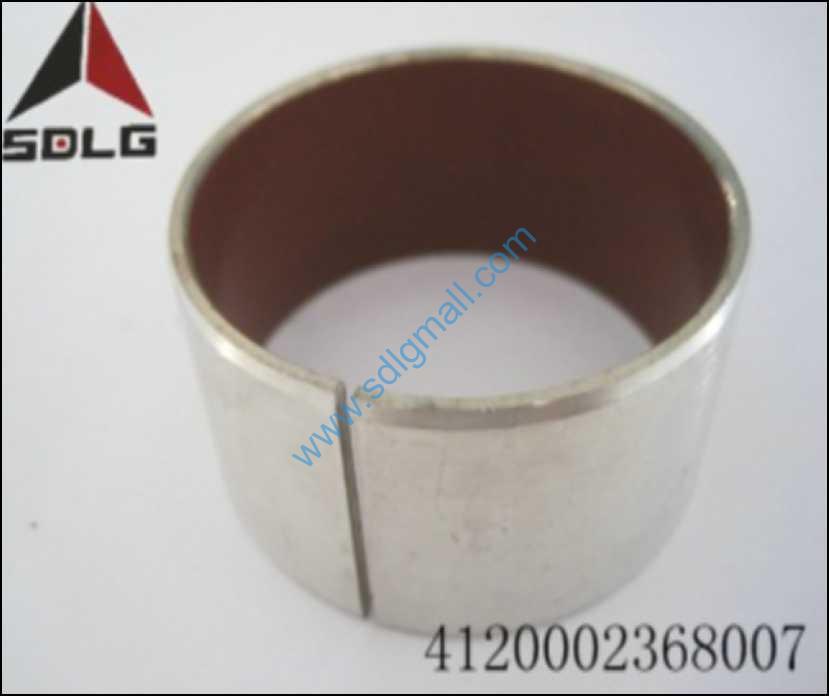

4120002368007 GUIDE SLEEVE E8415155
| C9-6210 | 回转支撑总成 | Swing system |
| 11216865 | 回转支撑 | GEAR_SLEWING RING |
| 11217247 | PIPE_WA GREASE | PIPE_WA GREASE |
| kongbai | kongbai | |
| kongbai | kongbai | |
| 11210200 | 垫圈 | plain washer |
| 11210108 | 六角螺钉 | hexagon screw |
| 11210001 | 油杯 | grease cup |
| 11210666 | 定位销 | pin |
| 11210847 | 黄油管接头 | nipple |
| 11210846 | 黄油管接头 | nipple |
| 11211654 | 管夹 | insulating clip |
| 11210036 | 法兰螺钉 | flange screw |
| 11210667 | 盖板 | cover |
| 11210668 | 密封垫 | gasket |
| 11210034 | 法兰螺钉 | flange screw |
| 11210163 | 螺栓 | hexagon screw |
| 11210200 | 垫圈 | plain washer |
| 11210884 | 密封 | sealing |
| F10-6210 | 链轮 | Sprocket |
| 11211245 | 驱动轮 | sprocket |
| 11210103 | 六角螺栓 | hexagon screw |
| 11210199 | 垫圈 | plain washer |
| F11-6210 | 脚动踏板 | Foot step |
| 11214589 | 脚踏板 | step |
| 11210103 | 六角螺栓 | hexagon screw |
| 11210199 | 垫圈 | plain washer |
| F1-6210 | 护板 | Protecting plate |
| 11216347 | 护板 | cover |
| 11210101 | 六角螺钉 | hexagon screw |
| 11210199 | 垫圈 | plain washer |
| F2-6210 | 行走马达护板 | Protective plate for travel motor |
| 11211345 | 护板 | cover |
| 11211346 | 护板 | cover |
| 11210101 | 六角螺钉 | hexagon screw |
| 11210199 | 垫圈 | plain washer |
| F3-6210 | 配重 | Counterweights |
| 26280002921 | 配重总成 | counterweight |
| 26280001572 | 护板 | attaching plate |
| 11210058 | 停用-垫圈 | washer |
| 11210063 | 弹簧垫圈 | spring washer |
| 11210118 | 法兰螺钉 | hexagon screw |
| 4011000384 | 螺栓GB5783-M24*45EpZn-8.8 | BOLT GB5783-M24*45EpZn-8.8 |
| 26360003091 | 反光警示标志 | warning decal |
| 26360003111 | 反光警示标志 | warning decal |
| 11211319 | 停用-垫片 | shim |
| 11211636 | 垫圈 | plain washer |
| 11210212 | 六角螺钉 | hexagon screw |
| 11211318 | 停用-垫片 | shim |
| F4-6210 | 履带链条 | Track chain |
| 11211234 | 链轨节 | link |
| 11211235 | 链轨节 | link |
| 11210646 | 销 | pin |
| 11210720 | 销 | pin |
| 11210647 | 套 | bushing |
| 11216581 | 履带板 | track shoe |
| 11210649 | 密封圈 | sealing ring |
| 11210719 | 垫片 | spacer |
| 11211056 | 螺栓 | bolt |
| 11211058 | 螺母 | nut |
| 11216581 | 履带板 | track shoe |
| 11211233 | 链轨总成 | link |
| F5-6210 | 底盘 履带导件 | Undercarriage，track guards |
| 11216678 | 链轨护板 | guard |
| 11210162 | 六角螺钉 | screw |
| 11210202 | 丝堵 | plain washer |
| 11211061 | 丝堵 | plug |
| F6-6210 | 底盘 弹簧套件 | Undercarriage, spring package |
| 11217670 | 缸体总成 | track adjusting cylinder |
| 11217673 | 缸体 | body |
| 11210692 | 螺杆 | rod |
| 11210123 | 六角螺钉 | hexagon screw |
| 11217671 | 涨紧弹簧 | spring tensioner |
| 11210702 | 活塞 | piston |
| 11217664 | 油杯 | lubricating nipple |
| 11217672 | 连接座 | yoke |
| 11210690 | 螺母 | nut |
| 11217661 | 油封 | lip seal |
| 11217662 | 密封环 | sealing ring |
| 11217663 | 油封 | lip seal |
| 11210682 | 安装板 | plate |
| 11210122 | 六角螺钉 | hexagon screw |
| 11210001 | 油杯 | grease cup |
| 11210064 | 弹垫 | spring washer |
| 11210693 | 挡板 | plate |
| 11217675 | 行程限位套 | stop sleeve |
| 11217674 | 涨紧装置总成 | spring tensioner |
| 4110002162 | 涨紧装置密封包 | sealing kit |
