Description

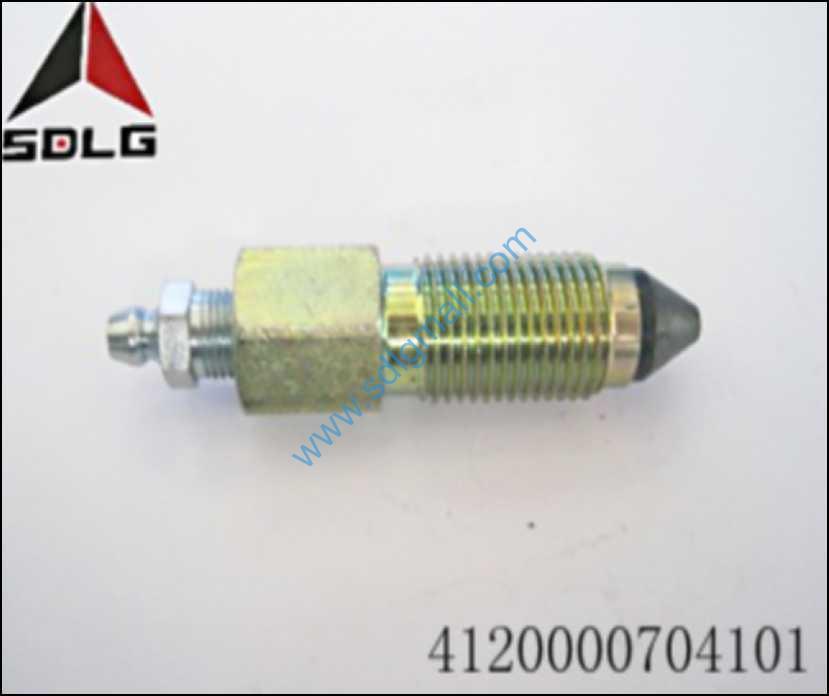

4120000704101 Check valve ZJOC-LG655-81EL-20090A
| H4-6210 | 主阀至工作装置至回转马达管路总成 | Hydraulic system, control valve to boom and swing |
| 11210151 | 内六角螺钉 | hex. socket screw |
| 11210130 | 六角螺母 | hexagon nut |
| 11211641 | 垫圈 | washer |
| 11210064 | 弹垫 | spring washer |
| 11217030 | 管 | PIPE_WA |
| 11210113 | 停用-O 形圈 | o-ring |
| 11210048 | 停用-O 形圈 | o-ring |
| 11211159 | 钢管 | pipe |
| 11211160 | 钢管 | pipe |
| 11217029 | 管 | PIPE_WA |
| 11211327 | 管夹 | clamp |
| 11211326 | 管夹 | clamp |
| 11210128 | 六角螺钉 | hexagon screw |
| 11217031 | 管 | PIPE_WA |
| 11217028 | 管 | PIPE_WA |
| 11210010 | 弯管接头 | nipple |
| 11217034 | 胶管 | HOSE_ASSY |
| 11217033 | 胶管 | HOSE_ASSY |
| 11217032 | 管 | pipe |
| 11210114 | O 形圈 | o-ring |
| H5-6210 | 液压油散管路总成 | Hydraulic system, hydraulic tank to hydraulic oil cooler |
| 11217046 | 管 | PIPE_WA RETURN |
| 11217045 | 管 | PIPE_WA |
| kongbai | kongbai | |
| 11210670 | 联接管总成 | coupling piece |
| 11210554 | 垫圈套件 | gasket kit |
| 11210782 | 阀 | valve |
| 11210671 | 阀 | valve |
| 11211290 | 钢管 | pipe |
| 11210758 | 套环 | grommet |
| 11210759 | 管夹 | clamp |
| 11210760 | 管夹 | clip |
| 11217048 | 管 | HOSE_ASSY SPECIAL |
| 11217047 | 管 | HOSE_ASSY SPECIAL |
| 11210190 | 六角螺钉 | hexagon screw |
| 11210019 | 分体法兰 | flange half |
| 11210037 | 法兰螺钉 | flange screw |
| 11210049 | 停用-O 形圈 | o-ring |
| 11214904 | O型圈 | o-ring |
| 11210051 | O 形圈 | o-ring |
| 11210064 | 弹垫 | spring washer |
| 11210065 | 弹垫 | spring washer |
| 11210034 | 法兰螺钉 | flange screw |
| 11210151 | 内六角螺钉 | hex. socket screw |
| 11210154 | 内六角螺钉 | hex. socket screw |
| 11210155 | 六角螺钉 | hex. socket screw |
| H6-6210 | 液压系统，液压油箱到液压泵 | Hydraulic system, hydraulic tank to hydraulic pump |
| 11217040 | 管 | PIPE_WA SUCTION |
| 11211700 | 堵头 | plug |
| 11210166 | O 形圈 | o-ring |
| 11217043 | 胶管 | HOSE_ASSY SPECIAL |
| 11217044 | 胶管 | HOSE_ASSY SPECIAL |
| 11217041 | 管 | PIPE_WA |
| 11217042 | 管 | PIPE_WA |
| 11211645 | 管夹 | clamp |
| 11211653 | 箍带 | strip clamp |
| 11211715 | 橡胶管 | rubber hose |
| 11210020 | 分体法兰 | flange |
| 11217685 | O型圈 | O-ring |
| 11210048 | 停用-O 形圈 | o-ring |
| 11210111 | O 形圈 | o-ring |
| 11210113 | 停用-O 形圈 | o-ring |
| 11210214 | 六角螺钉 | hexagon screw |
| 11210154 | 内六角螺钉 | hex. socket screw |
| 11210159 | 六角螺钉 | hex. socket screw |
| 11210065 | 弹垫 | spring washer |
| 11210064 | 弹垫 | spring washer |
| H7-6210 | 主阀安装附件 | Control valve with fitting parts |
| 11214527 | 控制阀总成UX28_EC210BP_VOLVO | CONTROL VALVE_ASSY UX28_EC210BP_VOLVO |
| 11210065 | 弹垫 | spring washer |
| 11210098 | 六角螺钉 | hexagon screw |
| H8-6210 | 主控阀、溢流阀和动臂保持阀 | Main control valve, relife valve and boom holding |
| 11210676 | 动臂保持阀阀体 | valve |
| 11211612 | 螺栓 | screw |
| 11211447 | 斗杆外合流接头 | cap |
| 11211435 | 单向阀 | non-return valve |
| 11211458 | 弹簧 | spring |
| 11210134 | O形圈 | o-ring |
| 11211785 | 停用-密封环 | sealing ring |
| 11211428 | 法兰块 | flange plate |
| 11211429 | 阀杆端盖 | cap |
| 11211434 | 单向阀 | valve |
| 11211438 | 弹簧座 | spring seat |
| 11210409 | 节流体 | tube fitting |
| 11211444 | 堵头 | cap |
| 11210138 | O形圈 | o-ring |
| 11211455 | 弹簧 | spring |
| 11211457 | 弹簧 | spring |
| 11211467 | 堵头 | cap |
| 11210157 | 六角螺钉 | hex. socket screw |
| 11210081 | 六角螺钉 | hex. socket screw |
| 11211610 | 螺栓 | screw |
| 11210246 | 内六角螺钉 | hex. socket screw |
| 11211625 | 停用-吊环螺栓 | eye bolt |
| 11210066 | 弹垫 | washer |
| 11211699 | 堵头 | plug |
| 11211025 | 堵头 | plug |
| 11210132 | O 形圈 | o-ring |
| 11210133 | O 形圈 | o-ring |
| 11210135 | O 形圈 | o-ring |
| 11210145 | O形圈 | o-ring |
| 11210168 | O形圈 | o-ring |
| 11210185 | 密封环 | sealing ring |
| 11211469 | 六角螺钉 | screw |
| 11210322 | 主阀密封包 | sealing kit |
| 11211288 | 主阀 | control valve |
