Description

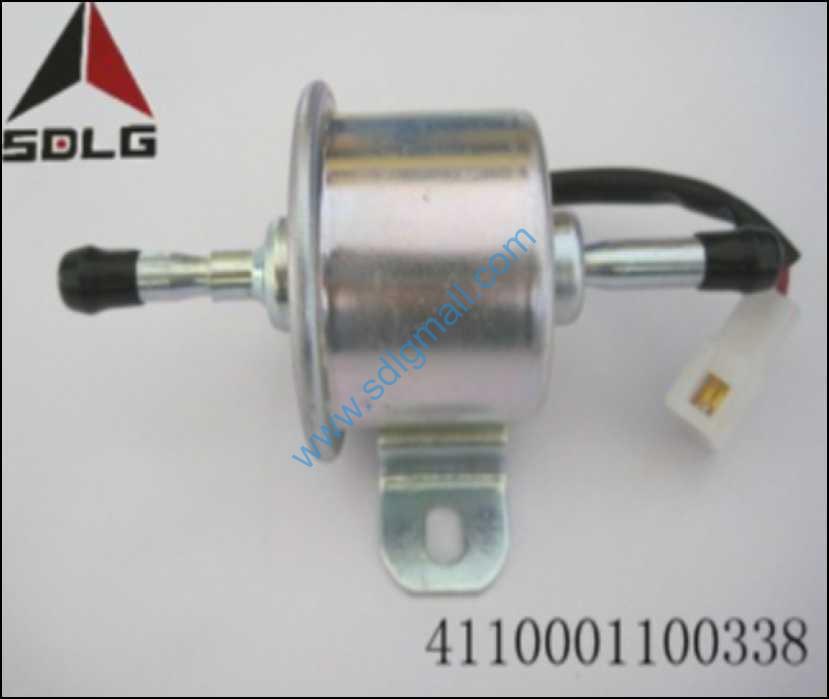

4110001100338 The Oil Pump Assembly
| 11210290 | 管夹 | clamp |
| 11210328 | 管夹 | clamp |
| 11211161 | 钢管 | pipe |
| 11211366 | 钢管 | pipe |
| 11210124 | 六角螺钉 | hexagon screw |
| 11210223 | 六角螺钉 | hexagon screw |
| 11210152 | 内六角螺钉 | hex. socket screw |
| 11210064 | 弹垫 | spring washer |
| 11210067 | 弹垫 | spring washer |
| 11211129 | 管夹 | clamp |
| 11212396 | O形圈 | o-ring |
| 11217685 | O型圈 | O-ring |
| 11210021 | 胶管 | hose assembly |
| 11210197 | 垫圈 | plain washer |
| H29-6210E | 铲斗总成 | Bucket Asm |
| 26180005922 | 铲斗总成(0.85) | bucket |
| 11217130 | 斗齿 | tooth |
| 11210768 | 固定销 | pin |
| 11210753 | 弹套 | washer |
| 11217426 | 侧齿 | PLATE_LH BLADE SIDE |
| 11217425 | 侧齿 | PLATE_RH BLADE SIDE |
| 11211607 | 六角螺栓 | hexagon screw |
| 11211626 | 螺母 | nut |
| 11217129 | 齿座 | adapter |
| 26180005941 | 主刀板 | ATTACK PLATE |
| H30-6210 | 到铲斗的连接 | Links to bucket |
| 4043000649 | 垫片LGB303-80*130*0.5 | shim LGB303-80*130*0.5 |
| 11216985 | 销轴 | PIN |
| 11216984 | 销轴 | PIN |
| 11211066 | O型防尘圈 | ring |
| 11210107 | 螺栓 | screw |
| 11210109 | 六角螺母 | hexagon nut |
| H31-6210 | 大臂连杆 | Links to boom |
| 11211266 | 销轴 | pin |
| 11211255 | 销轴 | pin |
| 11211267 | 销轴 | pin |
| 11210779 | 压板 | lock |
| 11210780 | 垫片 | shim |
| 11210781 | 垫片 | shim |
| 11210785 | 锁销 | lock pin |
| 11210806 | 垫圈 | washer |
| 11210192 | 六角螺栓 | hexagon screw |
| 11210194 | 六角螺栓 | hexagon screw |
| 11210206 | 六角螺栓 | hexagon screw |
| 11211638 | 弹簧垫圈 | spring washer |
| 11210067 | 弹垫 | spring washer |
| 11210109 | 六角螺母 | hexagon nut |
| 11216987 | 销轴 | PIN |
| 11216986 | 销轴 | PIN |
| 11210978 | 垫片 | shim |
| H32-6210E | 大臂与润滑脂配管 | Boom and grease piping |
| 11214701 | 动臂总成 | lifting arm |
| 11216818 | 轴套 | BUSHING__SINTERED_90X105XL100XC |
| 11210871 | 防尘圈 | sealing |
| 11210117 | 六角螺栓 | hexagon screw |
| 11210218 | 垫圈 | washer |
| 11211654 | 管夹 | insulating clip |
| 11211656 | 管夹 | insulating clip |
| 11211663 | 管夹 | clip |
| 11210802 | 螺纹接头 | nipple |
| 11210803 | 螺纹接头 | nipple |
| 11210001 | 油杯 | grease cup |
| 11217457 | 黄油软管 | HOSE |
| 11217447 | 黄油软管 | HOSE_ASSY GREASE |
| 11217452 | 黄油软管 | HOSE_ASSY GREASE |
| 11210187 | 六角螺栓 | hexagon screw |
| H33-6210 | 动臂油缸 | Boom cylinder |
| 11211639 | 垫圈 | lock washer |
| 11211334 | 停用-缓冲套 | rubber sleeve |
| 11211342 | 锁紧螺母 | lock nut |
| kongbai | kongbai | |
| 11211797 | 挡圈 | ring |
| 11211343 | 缓冲圈 | sealing |
| kongbai | kongbai | |
| 11210281 | 停用-防尘圈 | sealing ring |
| 11210423 | 衬套 | bushing |
| 11211769 | 停用-油杯 | nipple |
| 11210879 | 活塞杆 | piston rod |
| 11210281 | 停用-防尘圈 | sealing ring |
| 11210424 | 衬套 | bushing |
| 11211803 | 滑动轴套 | bushing |
| 11210421 | 主密封 | sealing |
| kongbai | kongbai | |
| 11211800 | 纳污环 | sealing ring |
| 11211783 | 支撑环 | wear ring |
| 11210053 | 停用-紧固螺钉 | hex. socket screw |
| 11210072 | 停用-紧固螺钉 | set screw |
| 11213788 | 停用-O形圈 | o-ring |
| 11213789 | 停用-O形圈 | o-ring |
| 11210181 | 挡圈 | retaining ring |
| 11211774 | 挡圈 | retaining ring |
| 11211776 | 密封圈 | sealing |
| 11211778 | 防尘圈 | sealing ring |
| 11211780 | 密封环 | ring |
| 11211795 | 密封环 | ring |
| 11210469 | 密封件包 | sealing kit |
| 11211283 | 动臂油缸 | boom cylinder |
