Description

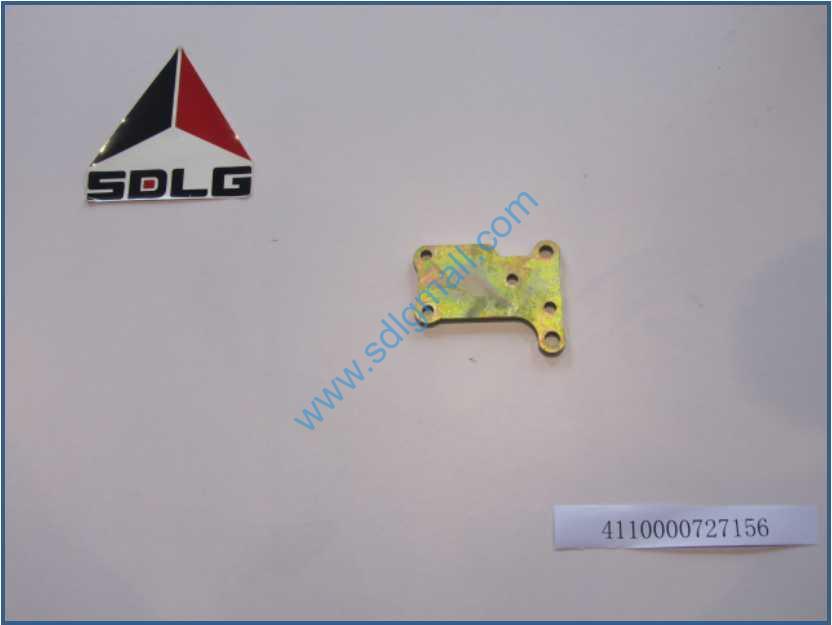

4110000727156 ENGINE FRONT SUPPORT BRACKET F04288660
| 2625000006 | 支架 | FRAME |
| 4015000168 | 垫圈 GB97.1-12EpZn-300HV | WASHER GB97.1-12EpZn-300H |
| 4011000089 | 螺栓 GB5783-M12*30EpZn-8.8 | BOLT GB5783-M12*30EpZn-8.8 |
| 4011000289 | 螺栓 GB5783-M6*16EpZn-8.8 | BOLT GB5783-M6*16EpZn-8.8 |
| 4015000207 | 垫圈 GB97.1-6EpZn-300HV | WASHER GB97.1-6EpZn-300HV |
| 2625000003 | 垫片 | SHEET |
| 2625000004 | 护板 | COVER |
| 4011000438 | 螺栓 GB5782-M16*80EpZn-10.9 | BOLT B5782-M16*80EpZn-10.9 |
| 4190000474 | 回转支承 | SWING CIRCLE ASS’Y |
| 4016000204 | 销 GB119.2-16h8*30-B | PIN GB119.2-16h8*30-B |
| 4011000095 | 螺栓 GB5783-M16*35EpZn-8.8 | BOLT GB5783-M16*35EpZn-8.8 |
| 4015000181 | 垫圈 GB97.1-16EpZn-300HV | WASHER GB97.1-16EpZn-300HV |
| 2625000007 | 固定座 | FRAME |
| 4013000011 | 螺母 GB6170-M12EpZn-8 | NUT GB6170-M12EpZn-8 |
| 4011000537 | 螺栓 GB5782-M16*90EpZn-10.9 | BOLT GB5782-M16*90EpZn-10.9 |
| 2625000002 | 锁片 | PIECE |
| 2625000008 | 油封 | SEAL |
| 2625000005 | 托油盘 | COVER |
| 2625000009 | 油封 | SEAL |
