Description

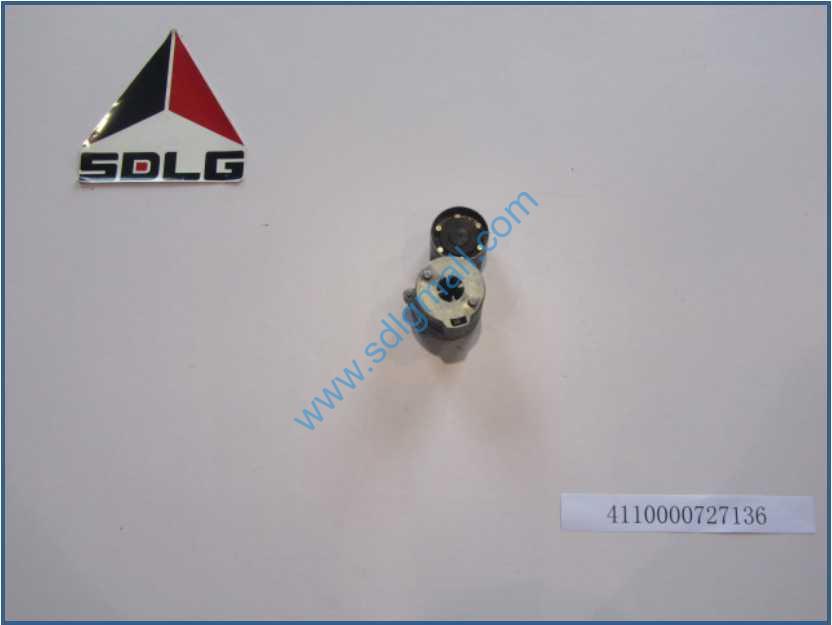

4110000727136 BELTING TIGHENER D04504262
| 19 | 2601000002 | 消音器支架 | MUFFLER BRACKET |
| 20 | 4011000085 | 螺栓 GB5783-M10*35EpZn-8.8 | BOLT GB5783-M10*35EpZn-8.8 |
| 21 | 2601000021 | 飞轮壳端盖 | FLYWHEEL CASING COVER |
| 22 | 2601000018 | 纸垫 | PAPER PILLOW |
| 23 | 4110000089 | 联轴器 | COUPLING |
| 24 | 4015000197 | 垫圈 GB96.1-10EpZn-300HV | WASHER GB96.1-10EpZn-300HV |
| 25 | 4013000007 | 螺母 GB6170-M10EpZn-8 | NUT GB6170-M10EpZn-8 |
| 26 | 4110000086 | 发动机 B3.3-C | ENGINE B3.3-C |
| 27 | 2601000017 | 发动机后支承 | ENGINE BACK HOLD |
| 28 | 4015000168 | 垫圈 GB97.1-12EpZn-300HV | WASHER GB97.1-12EpZn-300HV |
| 29 | 4016000125 | 销 GB119.2-12h8*22-B | PIN GB119.2-12h8*22-B |
| 30 | 4011000260 | 螺栓 GB5782-M12*60EpZn-8.8 | BOLT GB5782-M12*60EpZn-8.8 |
| 31 | 2601000016 | 垫管 | TUBE |
| 32 | 4011000048 | 螺栓 GB5782-M10*50EpZn-8.8 | BOLT GB5782-M10*50EpZn-8.8 |
| 33 | 4015000162 | 垫圈 GB97.1-10EpZn-300HV | WASHER GB97.1-10EpZn-300HV |
| 34 | 2601000013 | 发动机右前支承 | ENGINE RIGHT FRONT HOLD |
| 35 | 2601000015 | 后减震垫板 | BACK SHOCK MOUNT |
| 36 | 4190000435 | 减振垫 | SHOCK MOUNT |
| 37 | 2601000019 | 皮带轮 | STRAP |
| 38 | 2601000020 | 风扇垫块 | FAN PAD BLOCK |
| 39 | 4130000165 | 风扇 | FAN |
| 40 | 4014000113 | 螺钉 GB70.1-M8*25EpZn-8.8 | SCREW GB70.1-M8*25EpZn-8.8 |
| 41 | 2601000006 | 空滤器支架 | AIR CLEANER BRACKET |
| 42 | 4011000447 | 螺栓 GB16674-M10*20EpZn-8.8 | BOLT GB16674-M10*20EpZn-8.8 |
| 43 | 2601000014 | 发动机左前支承 | ENGINE LEFTFRONGT-BEARING |
