Description

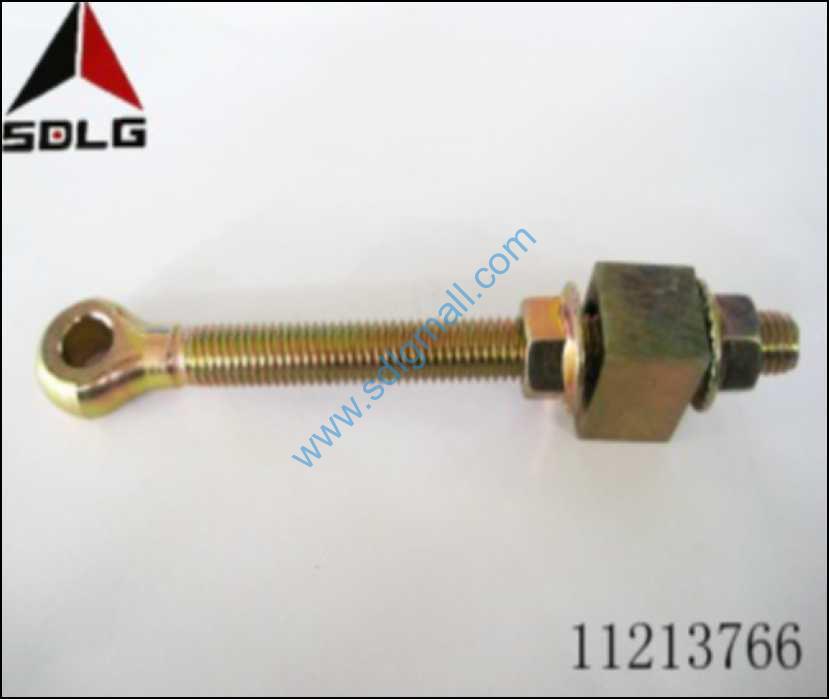

11213766 Adj Device
| 4011000095 | 螺栓GB5783-M16*35EpZn-8.8 | BOLT GB5783-M16*35EpZn-8.8 |
| 26250001631 | 管 | hose assembly |
| 26250001621 | 管 | hose assembly |
| 29250000301 | 垫片 | shim |
| 29010001111 | 接头 | nipple |
| 26250000521 | 锁片 | washer |
| E3-2626000770 | 下架总成 | LOWER FRAME ASSEMBLY |
| 26260007711 | 下架 | undercarriage frame |
| 4011000137 | 螺栓GB16674-M12*20EpZn-8.8 | bolt |
| 26260000031 | 护套 | rubber sleeve |
| 26260007221 | 板 | protecting plate |
| 26260003541 | 护套 | rubber sleeve |
| 26260000041 | 护套 | rubber sleeve |
| E4-2627000220 | 推土铲总成 | DOZER BLADE ASS’Y |
| 26270002212 | 推土铲 | dozer blade |
| 4030000676 | 压注油杯 NPT1/8-27 | lubricating nipple |
| 26270002351 | 销 | pin |
| 4013000011 | 螺母GB6170-M12EpZn-8 | nut |
| 4011000054 | 螺栓GB5782-M12*120EpZn-8.8 | bolt |
| 26270000591 | 压板 | anchor plate |
| 26270002311 | 销轴 | pin |
| 26270000581 | 垫片 | shim |
| 4190000320 | 防尘圈VAY50*60*4 | sealing ring |
| 26170010971 | 轴套 | bushing |
| 4011000089 | 螺栓GB5783-M12*30EpZn-8.8 | bolt |
| 4015000168 | 垫圈GB97.1-12EpZn-300HV | washer |
| 26170000031 | 压板 | plate |
| 26270002331 | 销轴 | pin |
| 26270000571 | 垫片 | shim |
| 26270002471 | 垫片 | shim |
