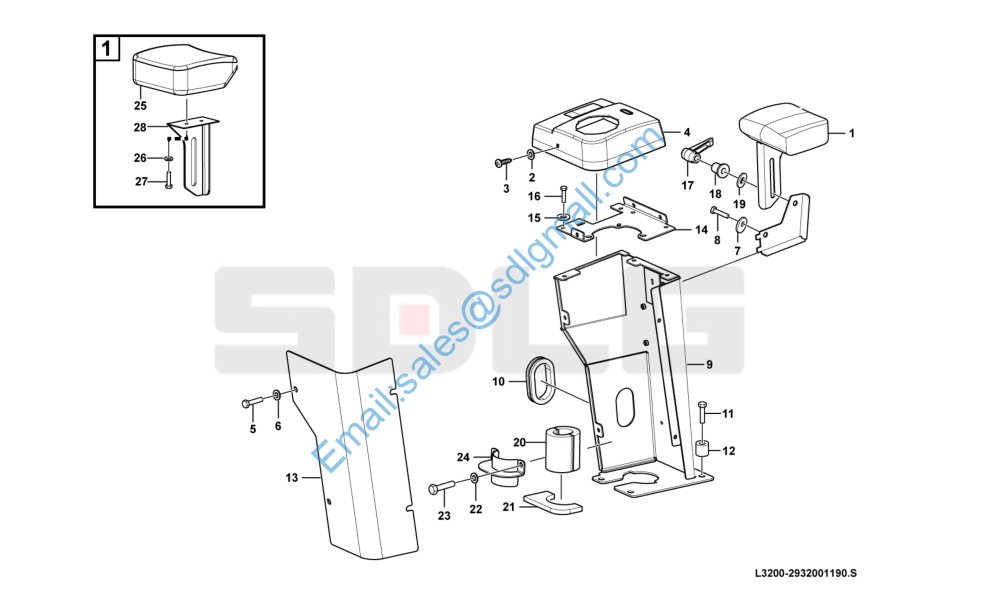

L989F L3200-2932001190 Control housing

1 29320010191 扶手总成 Hand rail Y 1

2 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 7

3 4014000524 螺钉GB818-M6*16flZnyc-8.8-480 Screw Y 3

4 29320009891 上盖 Cover Y 1

5 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 4

6 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

7 29320010301 限位块 Block Y 1

8 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 1

9 29320011831 操纵箱焊接总成 Control housing Y 1

10 26240004831 橡胶套 Rubber sleeve Y 1

11 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

12 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

13 29320011841 外侧板 Plate Y 1

14 29320009821 顶板总成 Plate Y 1

15 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 3

16 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 3

17 4019000080 手柄JB7270.12-M10*80 Control handle Y 1

18 29320009921 锁紧套 Lock washer Y 1

19 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 1

20 29320010141 海绵 Sponge Y 2

21 29320010151 海绵 Sponge Y 1

22 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

23 4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 Screw Y 2

24 29320010171 管夹 Clamp Y 1

25 29320009851 扶手 Arm rest Y 1

26 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2

27 4011000423 螺栓GB5783-M6*12EpZn-8.8 Screw Y 2

28 29320010202 扶手支架 Bracket Y 1
