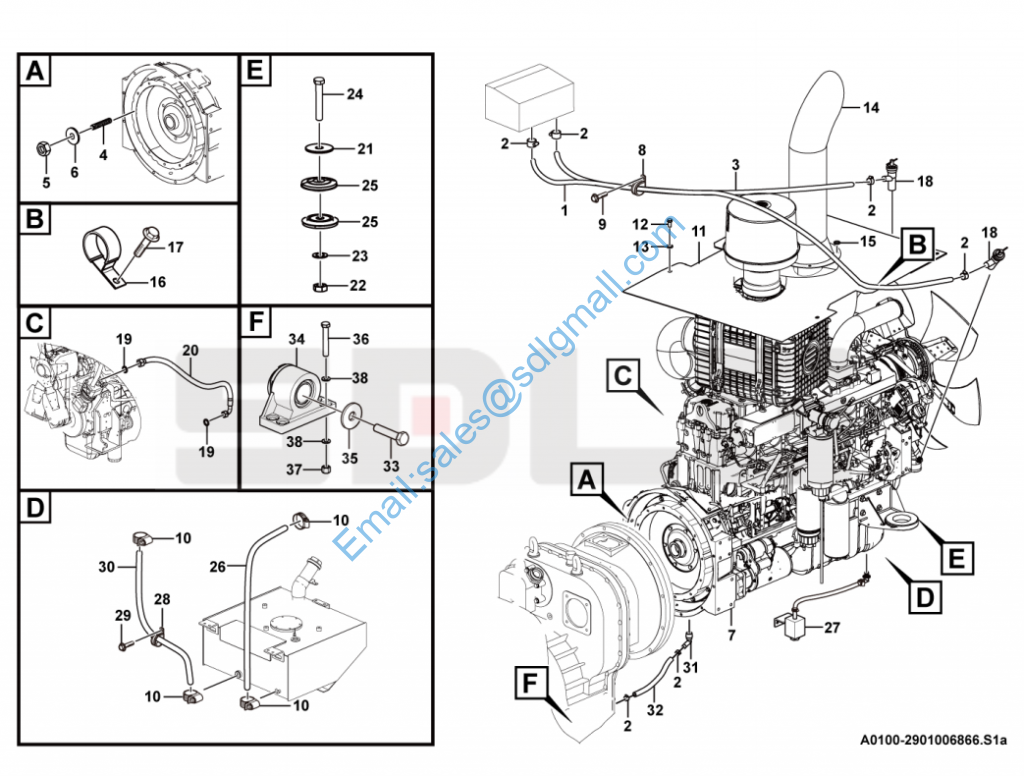

SDLG 发动机总成 Engine 2901006866

1 4090000363 胶管HG2491-163000 Hose Y 1 2 4017000024 环箍QC390-D26 Clamp Y 6 3 4090000169 胶管HG2491-162800 Hose Y 1
4 29010023401 双头螺柱 Stud Y 12
5 4013000007 螺母GB6170-M10EpZn-8 Nut Y 12
6 4015000025 垫圈GB93-10-65Mn Spring washer Y 12
7 4110003068 发动机总成 Engine Y 1
8 29030010811 管夹 Clamp Y 2
9 4011000461 螺栓GB16674-M816EpZn-8.8 Bolt Y 2 10 4017000010 喉箍JB8870-d20 Clamp Y 4 11 29010059971 上盖板 Cover plate Y 1 12 4011001238 螺栓GB5783-M1020flZnyc-8.8-480 Screw Y 10
13 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6
14 4110001754 排气尾管 Pipe Y 1
15 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
16 4041002384 管夹LGB169-A2512.5 Clamp Y 2 17 4011000137 螺栓GB16674-M1220EpZn-8.8 Bolt Y 2
18 4120000067 暖风机水阀LG12-NFJSF Valve Y 2
19 29220000171 垫圈 Washer Y 2
20 4120000750 金属软管 Tube Y 1
21 29010024431 垫圈124 Washer Y 2
22 4013000160 螺母GB889.2-M201.5EpZn-8 Lock nut Y 2 23 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2 24 4011000918 螺栓GB5785-M201.5125EpZn-8.8 Bolt Y 2 25 4110001528 减震器CBB120 Absorber Y 4 26 4043002350 软管LGB334-131200E Hose Y 1
27 29010068671 发动机放油模块 Block N 1
28 4041002412 管夹LGB169-A2010 Clamp Y 1 29 4011000488 螺栓GB16674-M1016EpZn-8.8 Bolt Y 1
30 4043002683 软管LGB334-13*1800E Hose Y 1

31 29010000121 回油接头 Nipple Y 1
32 4030001061 胶管JB8406-B16380 Hose Y 1 33 4011000835 螺栓GB5783-M2040EpZn-10.9 Screw Y 2
34 4110000943 减震器总成 Absorber Y 2
35 29050017851 垫圈 Washer Y 2
36 4011000951 螺栓GB5785-M181.575EpZn-10.9 Screw Y 8
37 4013000252 螺母GB889.2-M18*1.5EpZn-10 Nut Y 8
38 4015000182 垫圈GB97.1-18EpZn-300HV Washer Y 16
