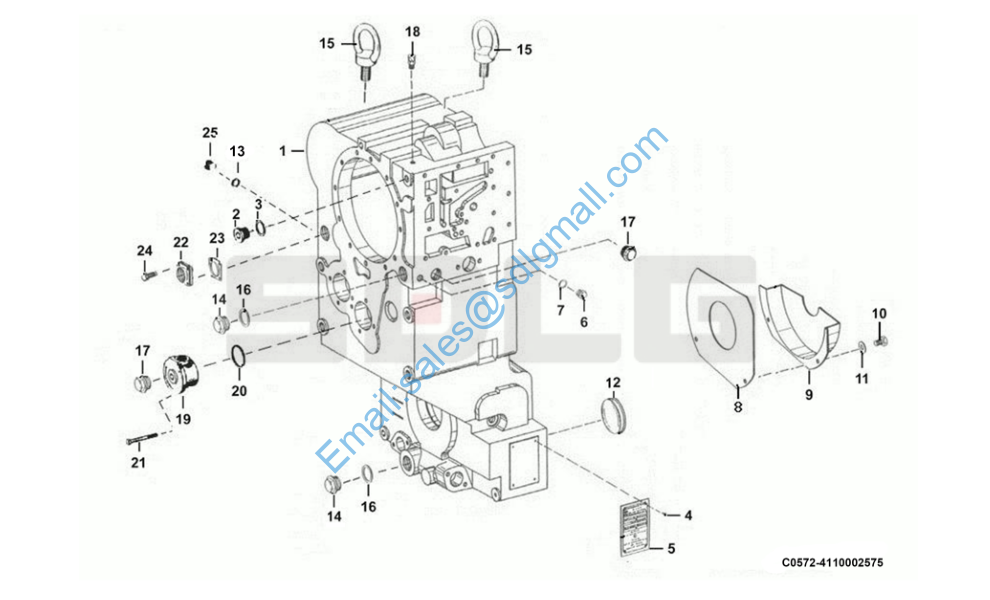

G9165 4110002575 箱体部件YD13-101 Case parts

1 4110000076351 箱体 YD13 301 001 (500) Housing Y 1

2 7200001445 螺塞(AM26*1.5)0636305019 Plug Y 1

3 4110002575002 垫片 0634 801 165 Plain washer N 1

4 4110000076284 变速器铭牌 403091A Decal N 1

5 4019000091 抽芯铆钉GB12618.1-3.2*7-10 Rivet N 4

6 4110000076237 螺塞 AM14*1.50636305007 Plug Y 1

7 4110001905009 紫铜垫圈14Q20-03A-04 Washer N 1

8 4110000076297 挡板 YD13 301 002 Baffle plate Y 1

9 4110000076300 挡油盘 YD13 301 003 Baffle plate Y 1

10 4011000632 螺栓GB5783-M8*16-8.8 Bolt Y 2

11 4110002575003 垫圈 Washer 8 140HV GB/T848-2002 Plain washer N 2

12 4110000076333 密封罩 4466 351 081Φ80 Cover plate Y 2

13 4110001905032 A型密封垫圈18 Q20-08-06 Sealing washer N 1

14 4110000076240 螺塞 M30*1.50636305023 Plug Y 2

15 4014000486 螺钉GB825-M16 Screw Y 1

16 4110001905003 A型密封垫圈30Q20-08-11 Sealing washer N 2

17 4110000076331 螺塞 0637 510 206 M30*1.5 Plug Y 2

18 4110000076157 通气帽 0750 131 027 Vent cover Y 1

19 4110000076337 润滑进油盖 YD13 301 004 Cover Y 1

20 4030000611 PO形圈GB1235-63*3.1 O-ring Y 1

21 4011000591 螺栓GB5782-M8*70EpZn-8.8 Bolt Y 4

22 4110000076277 进油端盖 YD13 301 007 Cover Y 1

23 4110000076018 纸垫 YD13 301 008 Gasket N 1

24 4120000675407 螺栓M8X20GB/T5783-2000 Screw Y 4

25 4110000076332 螺塞 0636 305 011 AM18*1.5 Plug Y 1
