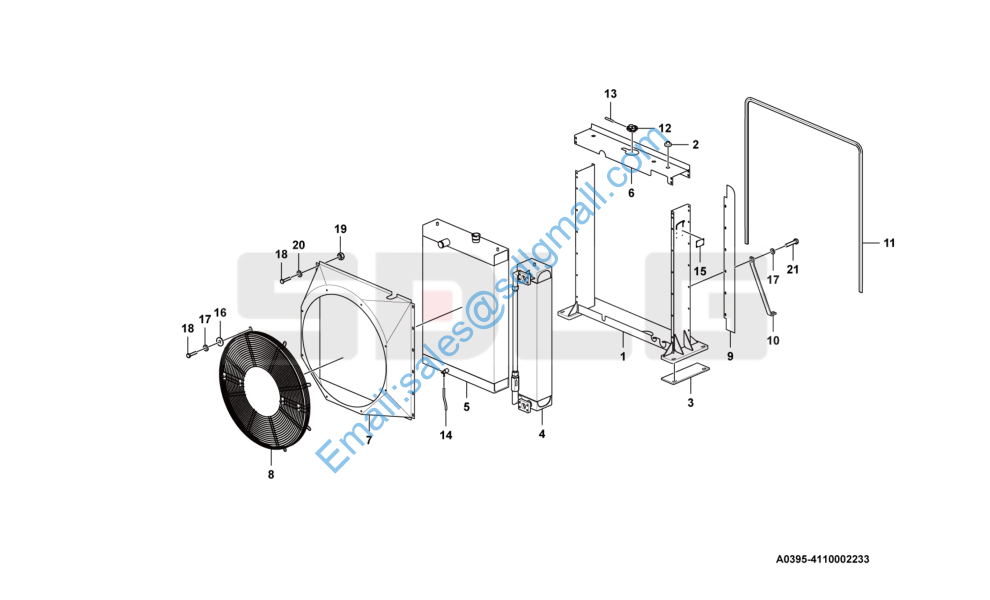

LG953 4110002233 水油散热器总成(370725) Radiator assembly

1 4110002233301 框架总成LY-LG953N-2A-1303100 Framework Y 1
2 4110002233302 通用减震垫PY160G-ZJD Absorber N 8
3 4110002233303 减震垫LY-LG953N-2A-1303137 Vibration damper N 2
4 4110002233304 液压油散LY-LG953N-2A-1301000 Hydraulic oil cooler Y 1
5 4110002233305 水散热器总成LY-LG953N-2A-1301100 Radiator Y 1
6 4110002233306 上框架总成LY-LG953N-2A-1303120 Bracket N 1
7 4110002233307 导风罩LY-LG953N-2A-1303132 Fan shroud Y 1
8 4110002233308 风扇护网LY-LG953N-2A-1303133 Fan guard Y 2
9 4110002233309 侧挡风板LY-LG953N-2A-1303131 Wind deflector Y 2
10 4110002233310 斜支撑LY-LG953N-2A-1303134 Bracket N 2
11 4110002233311 密封胶条LY-LG953N-2A-1303138 Sealing strip N 1
12 4110001929 Ⅱ型90Kpa复式加水口盖FG2 Cap Y 1
13 4110002233313 泄气管XQG-10 Hose N 1
14 4110002233314 导水管DSG-08 Hose N 1
15 4110002233315 标牌LGBP-01 Name plate N 1
16 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8
17 4015000036 垫圈GB93-8-65Mn Spring washer Y 44
18 4011001526 P-螺栓GB5781-M825EpZn-4.8 Screw N 42 19 6399002732 螺母GB/T41 M8 Nut N 44 20 4015000494 P-垫圈GB95-8EpZn-100HV Washer N 36 21 4011001535 P-螺栓GB5781-M835EpZn-4.8 Screw N 2
