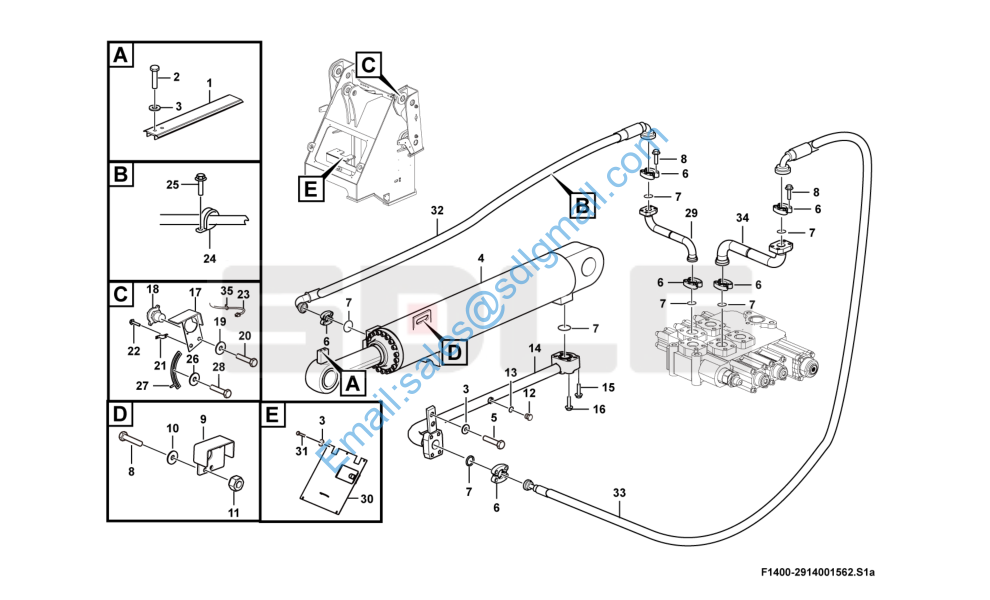

LG953 2914001562 转斗缸总成 Cylinder assembly

1 29140012861 放平护板 Indicator plate Y 1

2 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 4

3 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 11

4 4120005032 转斗油缸HSGF-190*90*545-1040A Tilt cylinder Y 1

5 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 2

6 4041000056 分体法兰LGB117-312550 Flange half Y 6

7 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 7

8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 26

9 29140012881 放平限位支架 Bracket Y 1

10 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2

11 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2

12 4041000774 螺塞LGB135-01422 Plug Y 1

13 4041000767 O形圈LGB168-11124 O-ring Y 1

14 29140012161 转斗缸大腔钢管 Pipe Y 1

15 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2

16 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2

17 29140016461 举升限位支架 Bracket Y 1

18 4130001028 接近开关J7-D10B1/DC Position switch Y 2

19 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

20 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

21 4130001006 CLIP 1027-003-1200 Clip Y 2

22 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

23 29410000391 接近开关过渡线束 Cable harness Y 1

24 29140011871 管夹 Clamp Y 4

25 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 8

26 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

27 29140016451 动臂指示板 Indicator plate Y 1

28 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2

29 29140011831 转斗联右小腔钢管 Pipe Y 1

30 29140012191 前盖板 Cover plate Y 1

31 4011000081 螺栓GB5783-M1020EpZn-8.8 Bolt Y 5 32 4041000178 软管LGB106-012138 Hose assembly Y 1 33 4041001638 软管LGB106-012137 Hose assembly Y 1 34 29140011851 转斗联左大腔钢管 Pipe Y 1 35 4190000020 扎丝LG13-ZS4250 Cable tie Y 3
