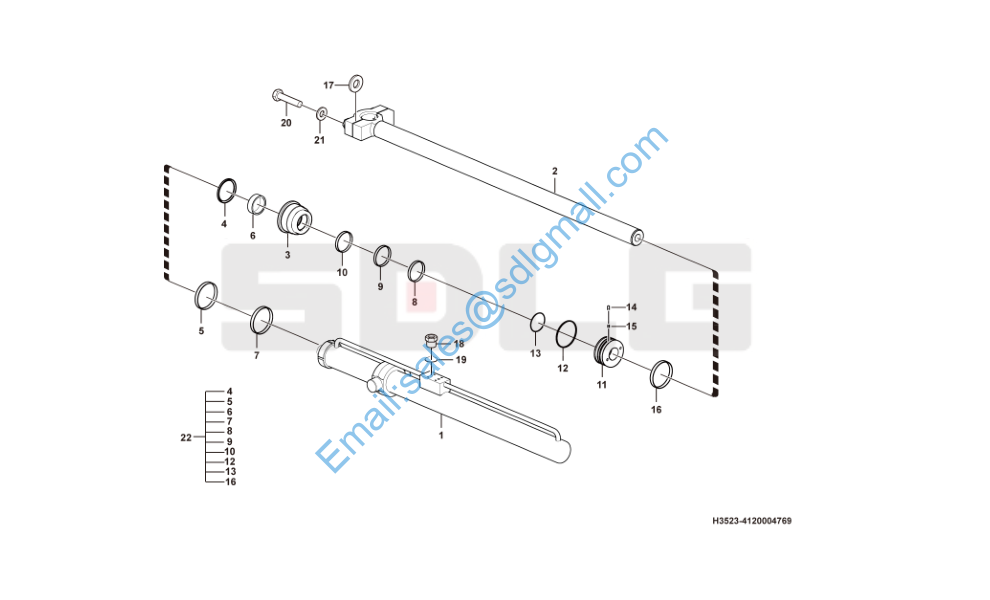

G9190 4120004769 铲刀升降油缸(3713CH) Hydraulic cylinder

1 4120004769004 缸筒总成 24A630340 Cylinder tube Y 1
2 4120004769005 活塞杆总成 24A610300 Piston rod Y 1
3 4120004788012 缸盖24A170200 Cover Y 1
4 4120005168009 斯特封24F905001 Sealing ring N 1
5 4120005963003 密封件-活塞杆24F405053 Sealing ring N 1
6 4120005963004 支承环24G305041 Sealing ring N 1
7 4120004762008 密封件-防尘24DA05002 Sealing ring N 1
8 4120005963006 O形圈24K308511 O-ring N 1
9 4120006118012 挡圈-O形圈24M30911A Sealing ring N 1
10 4120006118013 O形圈24K309001 Sealing ring N 1
11 4120005963007 活塞24A680040 Piston Y 1
12 4120005168012 密封件-活塞24P409014 Sealing ring N 1
13 4120005168014 O形圈24K305021 O-ring N 1
14 4120005331006 钢球24U004501 Ball N 1
15 4120005834006 螺钉-内六角圆柱头24T506141 Screw Y 1
16 4120006118017 支承环24G209041 Sealing ring N 2
17 4120004768015 调整垫片24A650150 Shim Y 8
18 4120004769007 螺堵 24C006090 Plug Y 2
19 4120004769008 O形圈 24K606401 O-ring N 2
20 4120004769009 螺栓-六角头24TA20909 Screw Y 2
21 4120004489010 弹性垫圈24T402002 D20 Spring washer Y 2
22 4120004769010 密封件包24A600120S Sealing ring kit Y 1
