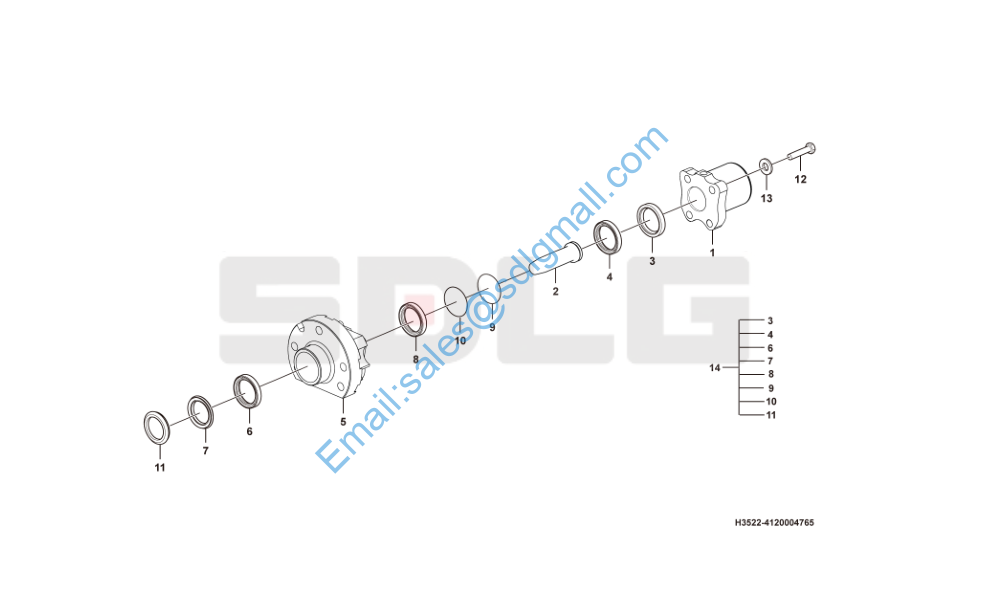

G9190 4120004765 锁紧油缸(3713CH) Hydraulic cylinder

1 4120004765006 缸筒总成 24A630310 Cylinder tube Y 1
2 4120004765007 活塞杆 24A610230 Piston rod Y 1
3 4120005559010 密封件-活塞24P408014 Sealing ring N 1
4 4120005020024 支承环80759.5 24G208011 Sealing ring N 1
5 4120004765008 缸盖 24A670060 Cover Y 1
6 4120005022020 密封件-活塞杆607310 24F006011 Sealing ring N 1
7 4120004765009 密封件-防尘 24DA06002 Sealing ring N 1
8 4120004765010 支承环 24G306041 Sealing ring N 1
9 4120005559008 O形圈24K307311 O-ring N 1
10 4120006310009 O形圈24K308001 O-ring N 1
11 4120004765011 销边防尘 24R306012 Sealing ring N 1
12 4120004765012 螺钉-内六角圆柱头24T512553 Screw Y 1
13 4120006030007 垫圈-标准型弹簧24T401202 Washer Y 1
14 4120004765013 密封件包24A600100S Sealing ring kit Y 1
