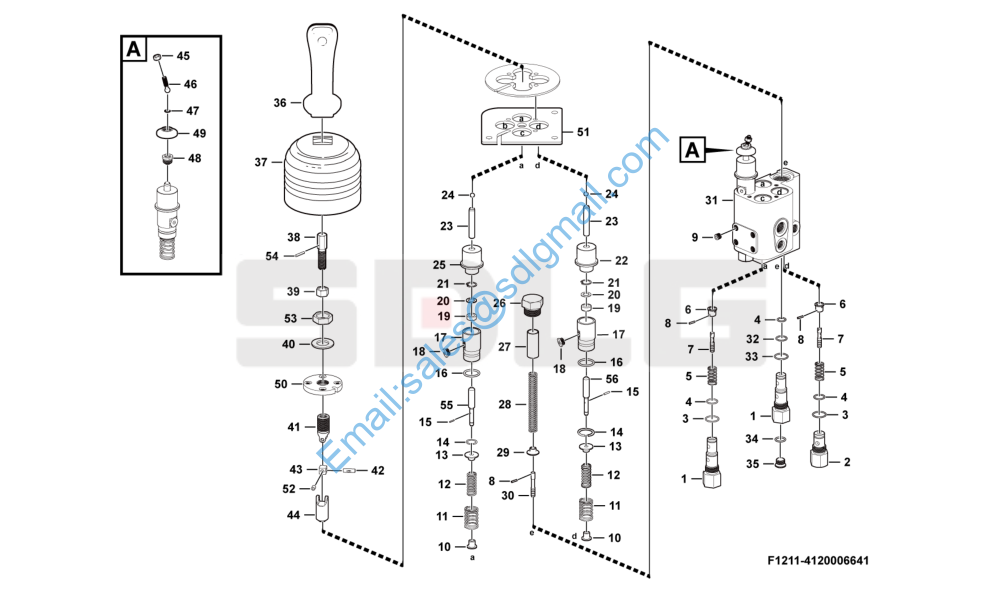

LG956L 4120006641 先导阀总成(331005) Control lever assembly

1 4120002027005 顺序阀座DXS-18-01 Valve seat Y 2

2 4120002027006 计量阀座DXS-16-04 Valve seat Y 3

3 4120002027007 O型圈18X1.8GB3452.1-82 O-ring Y 3

4 4120002027008 O型圈12.5X1.8GB3452.1-82 O-ring Y 3

5 4120002027009 弹簧DXS-16-01 Spring Y 3

6 4120002027010 阀芯座DXS-16-02 Seat Y 3

7 4120002027011 计量阀芯DXS-16-03 Valve rod Y 3

8 4120002027012 销φ2.5X12GB879-86 Pin Y 4

9 4120002027013 R1/8螺堵DXS-22 Plug Y 4

10 4120002027014 弹簧座DXS-10-05 Spring seat Y 4

11 4120002027015 弹簧DXS-17 Spring Y 4

12 4120002027016 计量弹簧DXS-10-04 Spring Y 4

13 4120002027017 弹簧座DXS-10-06 Spring seat Y 4

14 4120002027018 钢丝挡圈DXS-10-03 Retaining ring Y 4

15 4120002027019 弹性圆柱销φ2X10GB879-86 Pin Y 4

16 4120002027020 O型圈22.4X2.8GB3452.1-82 O-ring Y 4

17 4120002027021 盖DXS-10-02-01 Cover Y 4

18 4120002027022 塑料塞DXS-10-02-02 Plastic plug Y 4

19 4120002027001 C1型密封件10X16X6 C1 10 Sealing ring Y 4

20 4120002027023 密封圈盖DXS-10-07 Sealing cover Y 4

21 4120002027024 弹性挡圈17GB893.1-86 Retaining ring Y 4

22 4120006641001 电磁铁DXS-13d Magnet Y 3

23 4120002027025 压销DXS-05-01 Pin Y 4

24 4120002027026 钢球9/32”GB308-84 Ball Y 4

25 4120000370018 轴套DXS-11 Bushing Y 1

26 4120002027027 螺塞DXS-21 Plug Y 1

27 4120002027028 导向套DXS-19 Guide ring Y 1

28 4120002027029 弹簧DXS-20 Spring Y 1

29 4120002027031 弹簧座DXS-18-03 Spring seat Y 1

30 4120002027032 顺序阀芯DXS-18-02 Valve spindle Y 1

31 4120000370013 阀体DXS-08 Valve body Y 1
32 4120002027034 O型圈16X1.8GB3452.1-82 O-ring Y 2
33 4120002027033 O型圈20X1.8GB3452.1-82 O-ring Y 2
34 4120002027035 O型圈11.8X1.8GB3452.1-82 O-ring Y 1
35 4120002432424 螺塞DXS-18-04 Plug Y 1
36 4120002027002 手柄组件DXS-01 Control kit Y 1
37 4120000370014 橡胶罩DXS-09 Cover Y 1
38 4120000370005 手柄接头DXS-02 Nipple Y 1
39 4120002027036 螺母M12GB6170-86 Nut Y 1
40 4120002027037 小垫圈-20-140HVGB848-85 Washer Y 1
41 4120002027038 铰座DXS-07-01 Seat N 1
42 4120002027048 长销DXS-07-06 Pin Y 1
43 4120002027040 铰接DXS-07-02 Attaching link N 1
44 4120004305001 铰座DXS-07-07 Bracket Y 1
45 4110001321160 螺母GB6170-86 M6 DIN934 8 0637 Nut N 4
46 4120002027042 压销DXS-03-01 Pin N 4
47 4120002027043 挡圈8GB895.1-86 Retaining ring N 4
48 4120002027044 压销座DXS-03-03 Pin N 4
49 4120002027045 压板DXS-03-02 Cover Y 4
50 4120000370009 固定板DXS-04 Plate Y 1
51 4120004305002 安装板DXS-07-03b Fixation plate Y 1
52 4120002027047 短销DXS-07-04 Pin N 2
53 2810000357004 螺母M20-04（GB6172-86） Nut Y 1
54 4110001321157 弹性圆柱销GB879-86 6×30 DIN1481 Spring pin Y 1
55 4120002027049 压杆1DXS-10-01 Plate Y 2
56 4120002027050 压杆2DXS-12-01 Plate Y 2
