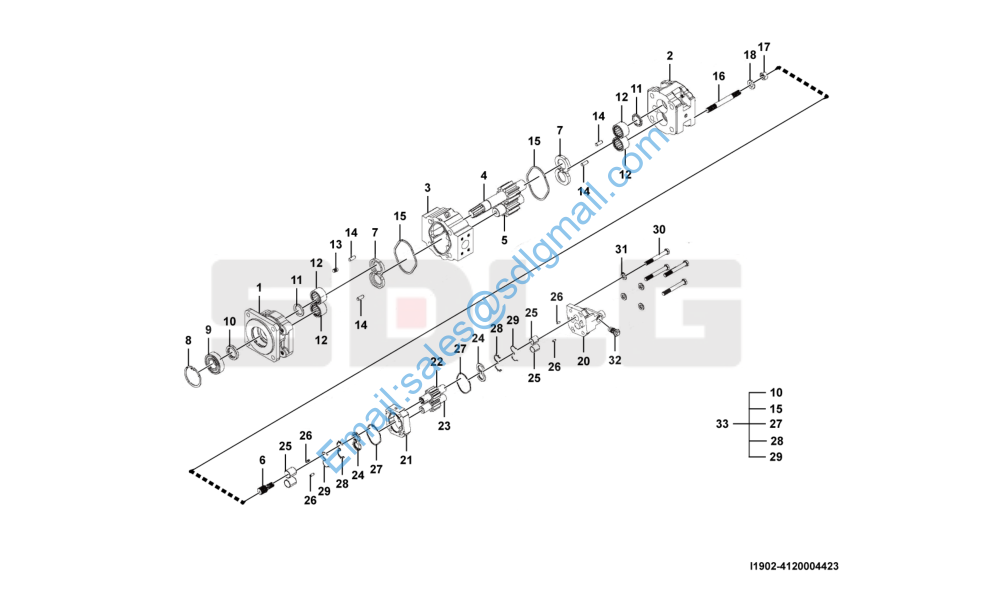

LG956L 4120004423 转向泵总成(120104) Steering pump assembly

1 4120004423201 前盖574C-D0009 Cover N 1

2 4120004423202 中间体592C-D0009-1 Centering block N 1

3 4120004423203 一级泵体LZ-0577-25-027D Pump body N 1

4 4120004423204 一级主齿024C-D0108-25DR Drive shaft gear N 1

5 4120004423205 一级从齿JZ-0996L-25ID Shaft N 1

6 4120004423206 接轴022C-D0004 Shaft N 1

7 4120004423207 侧板X-0947-TC Side board N 2

8 4120004423208 孔用弹性挡圈W023-283 Retaining ring N 1

9 4120004423209 外置轴承W58-47 Bearing N 1

10 4120004423210 油封W62-26-17 Sealing ring Y 1

11 4120004423211 二次密封环MA-0558-1XS Sealing ring N 2

12 4120004423212 滚针轴承R-0921 Needle bearing N 4

13 4120005082214 堵油螺钉S-0280 Screw N 1

14 4120004423213 圆柱销280C-00002 Pin N 4

15 4120004423214 方型密封圈TA-2995-244 Sealing ring N 2

16 4120004423215 双头螺柱ZD-0391-6.5 Stud N 4

17 4120004423216 螺母W3-65 Nut N 4

18 4120005082221 垫圈W033-2 Washer N 4

19 4120004423217 卸油口堵W0-19 Plug N 1

20 4120004423218 后盖592C-L0015-2063 Cover N 1

21 4120004423219 二级泵体577-01109-05 Pump body N 1

22 4120004423220 二级主齿996C-L0039-05DR Drive shaft N 1

23 4120004423221 二级从齿996-01103-05ID Shaft N 1

24 4120005081210 侧板947-01105 Side board N 2

25 4120005081211 滑动轴承921-01108 Plain bearing N 4

26 4120005081212 圆柱销280-1971-071 Pin N 4

27 4120005081213 方型密封圈TA-2995-152 Sealing ring N 2

28 4120005081214 Ｅ型密封圈947-01107 Sealing ring N 2

29 4120005081215 Ｅ型挡圈947-01106 Retaining ring N 2

30 4120004423222 螺栓W1-88 Screw N 4

31 4120005081217 垫圈W033-1 Washer N 4
32 4120004423223 溢流阀5514C-00001-035 Valve Y 1
33 4120004423224 密封件包 Sealing ring kit Y 1
