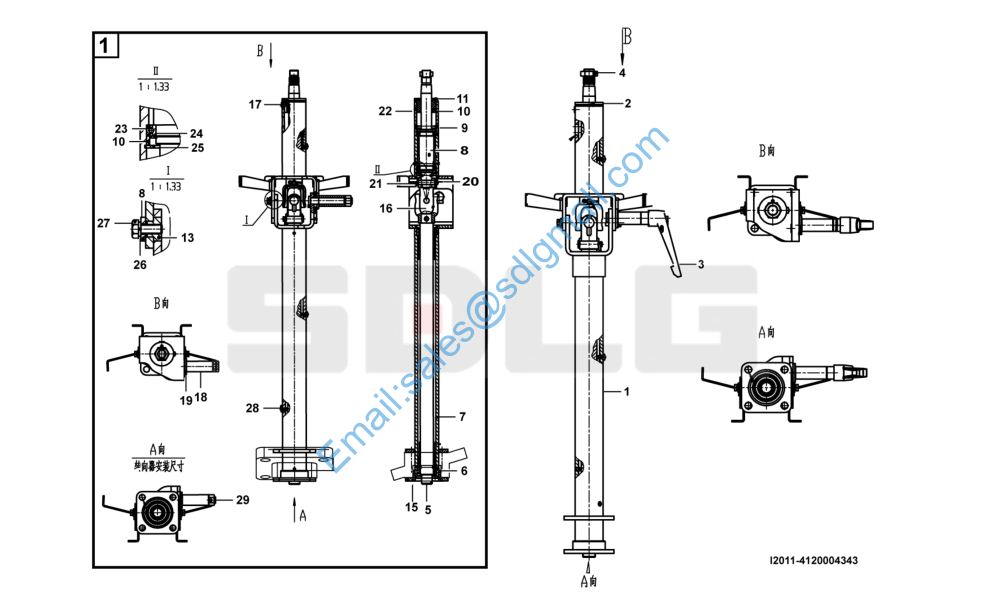

LG956L 4120004343 可调向转向柱02 Steering column

1 4120004343001 可调向转向柱LG-ZXZ02G Steering shaft N 1

2 4190000831012 导电环KCT1.2-11 Ring N 1

3 4130000896 锁紧手柄JB/T270.12-94 Switch Y 1

4 4120008528002 螺母M16 GB/T61721-2000 Nut N 1

5 4120004343002 转向器连接轴LG-ZXZ02G-1 Steering shaft N 1

6 4120008528004 尼龙套一LG-ZXZ02G-7 Nylon sleeve N 2

7 4120004343003 固定支架 LG-ZXZ02G.2 Attachment bracket N 1

8 4120008528006 方向盘连接轴LG-ZXZ02G-3 Shaft N 1

9 4120004343004 移动支架LG-ZXZ02G.4 Bracket N 1

10 4120008528008 尼龙套二LG-ZXZ02G-10 Nylon sleeve N 1

11 4190000831012 导电环KCT1.2-11 Ring N 1

12 4120008528009 垫圈LG-ZXZ02-7 Washer N 2

13 4120008528010 转动套LG-ZXZ02-8 Sleeve N 2

14 4120008528011 挡圈LG-ZXZ02-9 Retaining ring N 2

15 4120008528012 固定座LG-ZXZ02.10 Seat N 1

16 4120001703101 万向节 WXJ-03 Cross axle N 1

17 4190000831010 堵头KCT1.2-12 Plug N 1

18 4120008528013 锁紧轴LG-ZXZ02-11 Pin N 1

19 4120008528014 锁紧套LG-ZXZ02-12 Sleeve N 1

20 4120004343005 销轴GB882B 8*36 Control shaft N 2

21 4120004343006 开口销GB91-86 3.2*15 Split pin N 2

22 4120004343007 锁定螺钉GB72-88 M4*5 Set screw N 3

23 4120001703068 深沟球轴承61805-27GB/T276-1994 Bearing N 2

24 4120001703073 A型轴用弹性挡圈25GB/T894.1-1986 Spring washer N 2

25 4120004343008 轴用弹性挡圈37 Stop washer N 2

26 4120000904213 弹垫Φ18GB93-87 Washerφ18gb93-87 N 2

27 4120004343011 六角头螺栓M6*16 Hexagon screw N 2

28 4120004343009 十字盘头螺钉GB/T818-2000 M5*8 Screw N 3

29 4120004343010 I形六角螺母GB/T6170-2000 M12 Hexagon nut N 1
