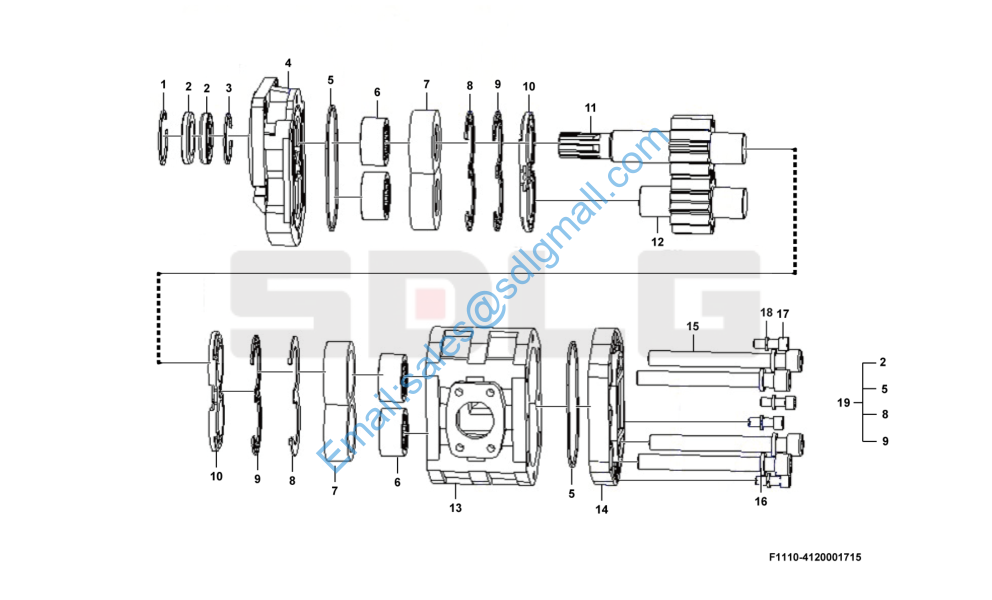

LG956L 4120001715 齿轮泵(370142 ) Working hydraulic pump assembly

1 4120001715001 挡圈41060100400 Retaining ring Y 1
2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2
3 4120001715003 挡圈41060100300 Retaining ring Y 1
4 4120001715004 前盖21050200110 Cover Y 1
5 4120005081002 环形密封圈44020100700 Sealing ring Y 2
6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4
7 4120001715007 定位套21050900110 Spacer sleeve Y 4
8 4120001715008 耳形挡片21050800110 Retaining ring Y 2
9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2
10 4120001715010 侧板21050600110 Side board Y 2
11 4120001715011 主动齿轮轴21050117010 Drive shaft Y 1
12 4120001715012 从动齿轮轴21050417010 Shaft Y 1
13 4120001715013 泵体21050317010 Pump body Y 1
14 4120001715014 后盖21050500110 Cover Y 1
15 4120001715015 螺钉44010103080 Screw Y 4
16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4
17 4120001715017 螺钉41010101780 Screw Y 4
18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
19 4120001715019 密封件包 Sealing ring kit Y 1
