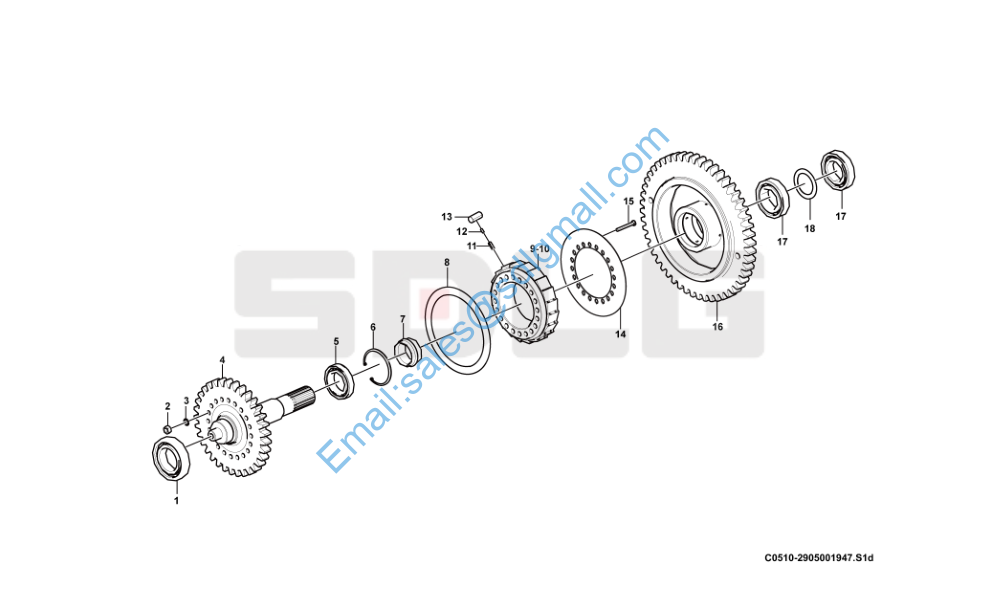

LG956L 2905001947 超越离合器总成 Clutch assembly

1 4021000020 滚动轴承GB276-6211 Ball bearing Y 1

2 4013000036 螺母GB6171-M10*1EpZn-8 Nut Y 20

3 4015000025 垫圈GB93-10-65Mn Spring washer Y 20

4 29050019581 中间输入轴 Input shaft Y 1

5 4021000055 滚动轴承GB276-6010E Ball bearing Y 1

6 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1

7 29050019561 隔离套 Sleeve N 1

8 29050019491 挡环 Retaining ring N 1

9 29050019501 内环凸轮 Cam N 1

10 29050019601 内环凸轮 Cam N 1

11 29050024291 弹簧 Spring Y 40

12 29050024301 柱销 Pin Y 40

13 29050019541 滚柱Φ15*32 Roller Y 20

14 29050019511 挡板 Plate N 1

15 29050019481 螺栓 Screw N 20

16 29050019571 外环齿轮 Gear N 1

17 4021000057 滚动轴承GB276-6210E Ball bearing Y 2

18 29050019551 间隔环 Spacer ring N 1
