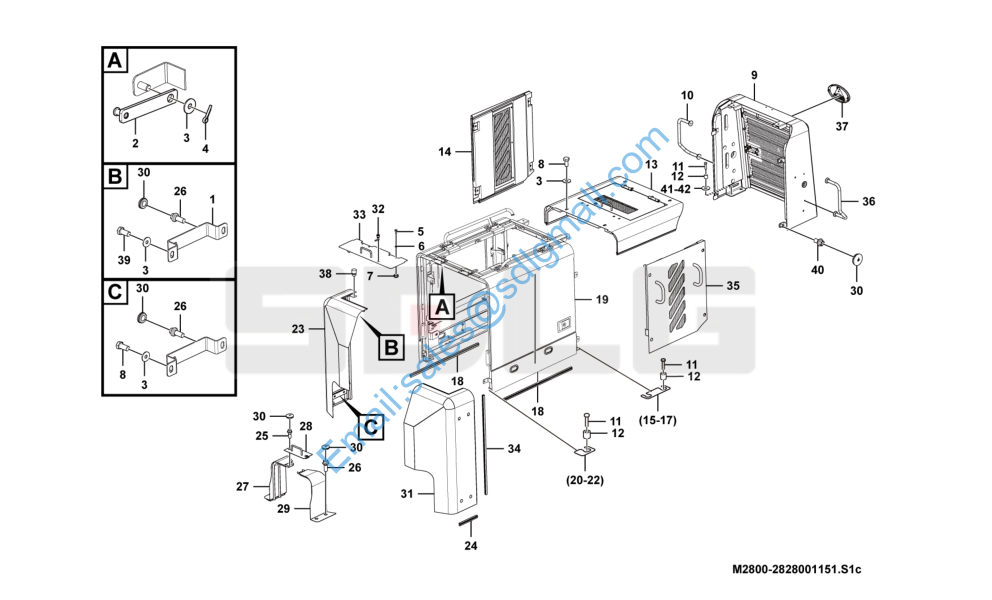

G9190 2828001151 发动机罩总成 Bonnet

1 28280006391 安装座 Housing Y 4

2 28280007901 拉杆焊合 Guide member Y 1

3 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 17

4 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 1

5 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 4

6 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4

7 4013000007 螺母GB6170-M10EpZn-8 Nut Y 4

8 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 12

9 28280011521 后罩总成 Cover Y 1

10 29330041871 右后扶手 Hand rail Y 1

11 4011000150 螺栓GB16674-M16*55EpZn-8.8 Screw Y 10

12 4043002121 防松套LGB331-16*30*30EpZn-45 Attaching sleeve Y 10

13 28280011561 上罩总成 Cover Y 1

14 28280011681 右后侧门总成 Door Y 1

15 28280010251 调整垫片II Shim Y 2

16 28280010291 调整垫片II Shim Y 2

17 28280010281 调整垫片I Shim Y 2

18 4043001012 卡子胶条LGB320-S900 Sealing strip Y 2

19 28280011782 机罩 Cover Y 1

20 28280010241 调整垫片I Shim Y 2

21 28280010261 调整垫片I Shim Y 2

22 28280010271 调整垫片II Shim Y 2

23 28280010751 液压油箱右盖板 Cover plate Y 1

24 4043001384 卡子胶条LGB320-S230 Sealing strip Y 2

25 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

26 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 16

27 28280007051 右挡板焊接 Plate Y 1

28 28280007381 盖板焊接 Plate Y 1

29 28280006741 左挡板焊接 Plate Y 1

30 29330000201 橡胶盖 Rubber plug Y 22

31 28280010741 液压油箱左盖板 Cover plate Y 1

32 4190000916 门锁NBS5013A Door lock Y 1

33 28280007801 盖板焊合 Cover plate Y 1

34 4043000849 卡子胶条LGB320-U1000 Sealing strip Y 2

35 28280011791 左后侧门总成 Door Y 1

36 29330041891 左后扶手 Hand rail Y 1

37 29360015191 后标志 Emblem Y 1

38 29330022651 橡胶垫 Rubber plug Y 2

39 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 4

40 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 4

41 28280013861 开口垫片16*0.5 Shim Y 8

42 28280013871 开口垫片16*1 Shim Y 8
