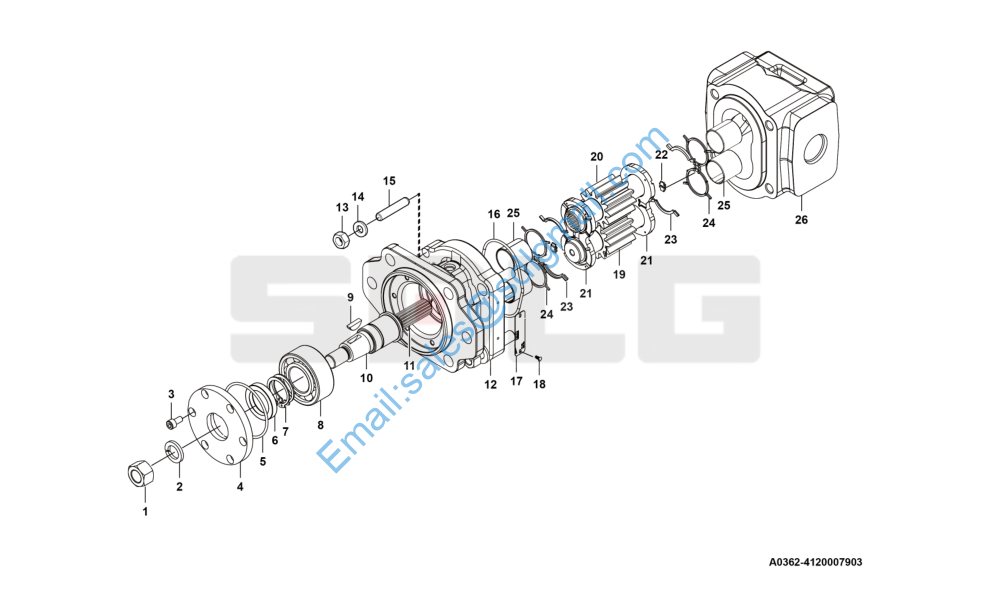

G9190 4120007903 齿轮马达PGM620A037(120101) Hydraulic motor

1 4013000096 螺母GB6171-M16*1.5EpZn-8 Nut Y 1

2 4120003294020 垫片GB7425-16 Spring washer N 1

3 4014000120 螺钉GB70.1-M6*12EpZn-8.8 Screw Y 6

4 4120003294012 端盖3919997076C Cover N 1

5 4120003294013 O型圈020143N0674 O-ring Y 1

6 4120007903001 油封464888 Sealing ring N 1

7 4015000220 挡圈GB894.2-30-65Mn Retaining ring N 2

8 4120003294010 轴承3910381127 Bearing N 1

9 4022000039 键GB1099.1-5*7.5*19 Woodruff key N 1

10 4120003294009 前轴CN103000003 Front axle Y 1

11 4120003294008 连接轴3241133001 Shaft Y 1

12 4120007903002 前盖CN103000101 Cover N 1

13 4013000150 螺母GB6170-M12EpZn-10 Nut Y 4

14 4120003294017 垫圈CL9222-575-009 Spring washer Y 4

15 4012000096 螺柱GB900-AM12*38-12.9 Stud N 4

16 4120003294015 O型圈CL9312-641-004 O-ring Y 1

17 4120007903003 标牌DF50-133 Name plate N 1

18 4120003294019 铆钉3911432004 Rivet N 2

19 4120003294002 被动齿轮CN103000014 Gear N 1

20 4120003294001 主动齿轮CN103000013 Drive shaft N 1

21 4120003294003 侧板CL8782-058-00C Plate Y 2

22 4120003294004 密封件CL8782-013-00P Sealing ring Y 2

23 4120003294005 密封件CL8782-014-01K Sealing ring Y 2

24 4120003294006 支撑件CL8782-015-00F Gear Y 4

25 4120003294007 衬套CL8682-018-00C Bushing Y 4

26 4120007903004 泵体CN103000077-37 Pump body N 1
