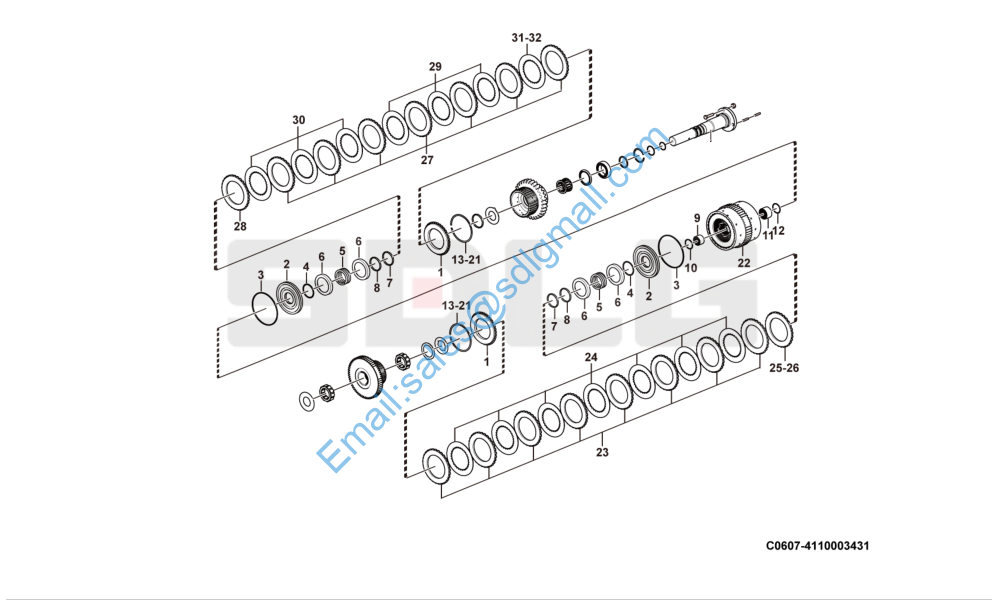

G9190 4110003431 离合器4644.151.104(450201) Clutch

1 7200001546 端垫4644308071 Washer Y 2
2 7200001547 活塞4644351070 Piston Y 2
3 7200001590 密封环0750112139 Sealing ring Y 2
4 7200001551 密封环0750112140 Sealing ring Y 2
5 7200001552 压力弹簧0732041183 Spring Y 2
6 7200001553 导向环4642308083 Guide ring Y 4
7 7200001554 V形杯AV550630531346 Lock ring Y 2
8 7200001555 导向环4642308084 Guide ring Y 2
9 7200001556 滚针轴承0635303203 Needle bearing Y 1
10 7200001557 挡圈0730513610 Retaining ring Y 1
11 7200001558 滚针轴承0635303205 Needle bearing Y 1
12 7200001559 挡圈0730513611 Retaining ring Y 1
13 4110001742011 调整垫片 0730 513 181,433-437,457-459 Shim Y 1
14 4110002230023 调整垫圈A=2.45 0730 513 437 Washer Y 1
15 4110000042023 挡圈A= 2.40 0730 513 436 Retaining ring Y 1
16 4110002230024 调整垫圈A=2.35 0730 513 435 Washer Y 1
17 4110000042020 挡圈A= 2.30 0730 513 434 Retaining ring Y 1
18 4110002230025 调整垫圈A=2.25 0730 513 433 Washer Y 1
19 4110000042018 挡圈A= 2.20 0730 513 459 Retaining ring Y 1
20 4110002230026 调整垫圈A=2.15 0730 513 458 Washer Y 1
21 4110000042015 挡圈A= 2.10 0730 513 457 Retaining ring Y 1
22 4110002230027 摩擦片支架4644 251 047 Bracket Y 1
23 4110002230031 外摩擦片0501 309 541 Friction disc Y 8
24 7200001572 内摩擦片4644308330 Friction disc Y 7
25 4110002230029 外摩擦片4644 308 014 Friction disc Y 1
26 4110002230030 外摩擦片4644 308 115 Friction disc N 1
27 4110002230031 外摩擦片0501 309 541 Friction disc Y 7
28 4110002230032 外摩擦片0501 312 283 Friction disc Y 1
29 7200001571 内摩擦片4644308329 Friction disc Y 3
30 7200001572 内摩擦片4644308330 Friction disc Y 3

31 7200001571 内摩擦片4644308329 Friction disc Y 1
32 7200001572 内摩擦片4644308330 Friction disc Y 1
