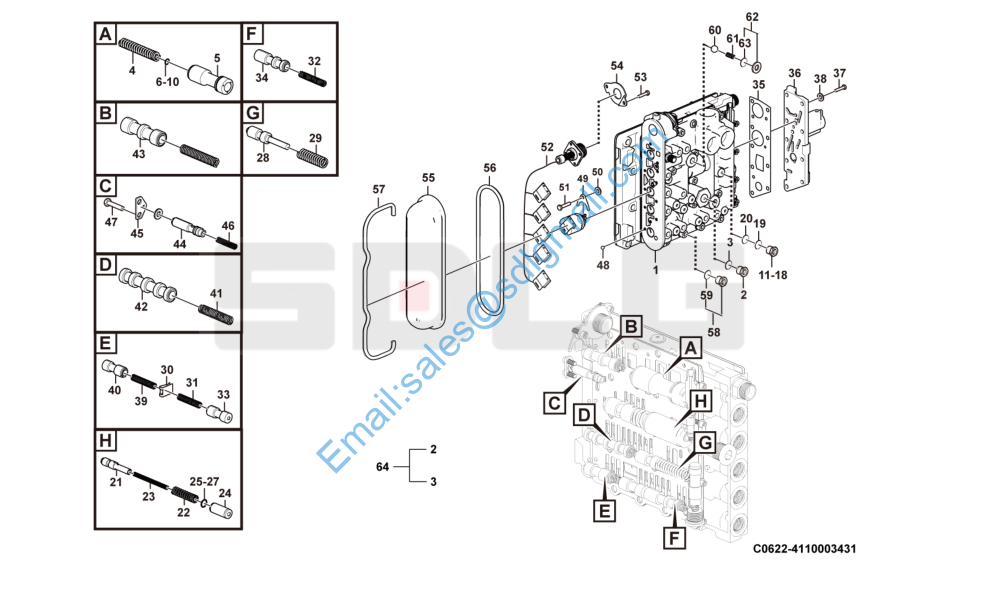

G9190 4110003431 变速阀总成4644.159.348(450201) Control valve

1 7200001707 阀体4644306558 Valve Y 1

2 4110000042117 旋入式管接头4644 306 566 Nipple Y 1

3 7200001709 O型圈(15*2)0634306524 O-ring Y 1

4 7200001710 压力弹簧0732042314 Spring Y 1

5 7200001711 阀杆4644306597 Valve rod Y 1

6 4110001742024 挡圈 0630 000 185，164,148，0630 004 Shim Y 1

7 4110002230056 调整垫圈0630 000 164 Shim Y 1

8 4110002230057 调整垫圈0630 000 148 Shim Y 1

9 4110002230058 调整垫圈0630 004 038 Shim Y 1

10 7200001712 调整垫圈(10*16*1)0630004037 Shim Y 1

11 7200001713 透气塞4644306401 A=0.6 Plug Y 1

12 4110000042100 节流堵头A=0.7 4644 306 402 Plug Y 1

13 4110000042102 节流堵头A=0.8 4644 306 403 Plug Y 1

14 4110000042099 节流堵头A=0.65 4644 306 521 Plug Y 1

15 4110000042101 节流堵头A=0.75 4644 306 522 Plug Y 1

16 4110000042103 节流堵头A=0.85 4644 306 404 Plug Y 1

17 4110000042104 节流堵头A=0.90 4644 306 531 Plug Y 1

18 4110000042105 节流堵头A=0.95 4644 306 554 Plug Y 1

19 7200001705 O形圈(8*1.5)0634303280 O-ring Y 1

20 7200001715 O型圈(6*1.5)0634306170 O-ring Y 1

21 7200001716 阀杆4644306376 Valve rod Y 1

22 7200001717 压力弹簧0732042315 Spring Y 1

23 7200001718 压力弹簧0732042316 Spring Y 1

24 7200001719 阀杆4644306377 Valve rod Y 1

25 4110002230059 调整垫圈0630 004 091 Shim Y 1

26 4110002230060 调整垫圈0630 004 081 Shim Y 1

27 4110002230061 调整垫圈0630 004 136 Shim N 1

28 7200001720 阀杆4644306509 Valve rod Y 1

29 7200001721 压力弹簧0732042317 Spring Y 1

30 7200001722 卡板4644306379 Lock plate Y 1

31 7200001723 压力弹簧0770060648 Spring Y 1

32 7200001723 压力弹簧0770060648 Spring Y 1

33 7200001725 阀杆4644306381 Valve rod Y 1

34 7200001726 阀杆4644306380 Valve rod Y 1

35 4110003064018 密封垫4644 306 584 Sealing washer Y 1

36 4110002230062 阀盖4644 306 512 Cover Y 1

37 7200001760 螺钉(M6*20)0636101012 Screw Y 9

38 7200001761 垫圈(6.4)0630003004 Washer Y 9

39 7200001723 压力弹簧0770060648 Spring Y 1

40 7200001725 阀杆4644306381 Valve rod Y 1

41 7200001723 压力弹簧0770060648 Spring Y 1

42 7200001731 阀杆4644306383 Valve rod Y 1

43 7200001733 阀杆4644306384 Valve rod Y 1

44 4110000042098 减压阀4644 306 578 Pressure reducing valve Y 1

45 7200001736 卡板4644306580 Lock plate Y 1

46 7200001737 压力弹簧0732042024 Spring Y 1

47 7200001743 螺钉(M5*12)0636101129 Screw Y 2

48 7200001739 钢球 0635460005 Ball Y 10

49 7200001741 卡板1043326045 Lock plate Y 5

50 4110002230063 垫圈0730 004 292 Washer Y 5

51 7200001743 螺钉(M5*12)0636101129 Screw Y 5

52 4110003064019 线束4644 206 035 Cable stem Y 1

53 7200001745 螺钉(M6*14)0636101478 Screw Y 2

54 7200001746 卡板4644306399 Lock plate Y 1

55 4110003064020 端盖4644 206 039 Cover Y 1

56 4110000042006 O形圈0634 349 606 O-ring Y 1

57 7200001749 箍圈4644306388 Clamp Y 1

58 4110002230064 螺塞4475 280 197 Plug N 8

59 7200001705 O形圈(8*1.5)0634303280 O-ring Y 1

60 7200001752 钢球0635460027 Ball Y 2

61 4110000042118 压力弹簧0732 041 226 Spring N 2
62 4110001742028 垫圈 4475 280 011 Washer N 2
63 7200001709 O型圈(15*2)0634306524 O-ring Y 1
64 4110003431001 螺塞4475 280 037 Plug N 1
