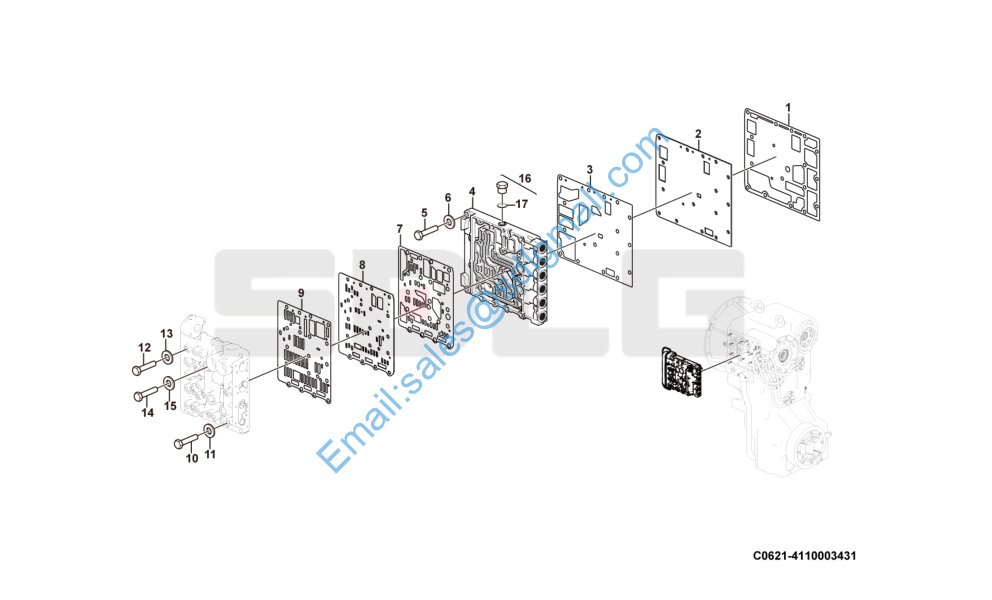

G9190 4110003431 变速阀安装4644.106.325(450201) Control valve

1 7200001692 密封4644306362 Gasket Y 1
2 7200001693 盖板4644306363 Cover plate Y 1
3 7200001694 密封4644306364 Gasket Y 1
4 7200001695 油道板4644306365 Oil distributor plate Y 1
5 4110000042119 圆柱头螺钉0636 102 173 Screw Y 11
6 7200001697 垫圈(8.4)0630003006 Washer Y 11
7 7200001698 密封4644306497 Gasket Y 1
8 7200001699 盖板4644306508 Cover plate Y 1
9 4110000042110 密封垫4644 306 370 Gasket Y 1
10 4110000042123 圆柱头螺钉0736 101 205 Screw Y 5
11 7200001697 垫圈(8.4)0630003006 Washer Y 5
12 4110000042121 圆柱头螺钉0736 101 203 Screw Y 11
13 7200001697 垫圈(8.4)0630003006 Washer Y 11
14 4110000042122 圆柱头螺钉0736 101 204 Screw Y 1
15 7200001697 垫圈(8.4)0630003006 Washer Y 1
16 4110002230064 螺塞4475 280 197 Plug N 1
17 7200001705 O形圈(8*1.5)0634303280 O-ring Y 1
