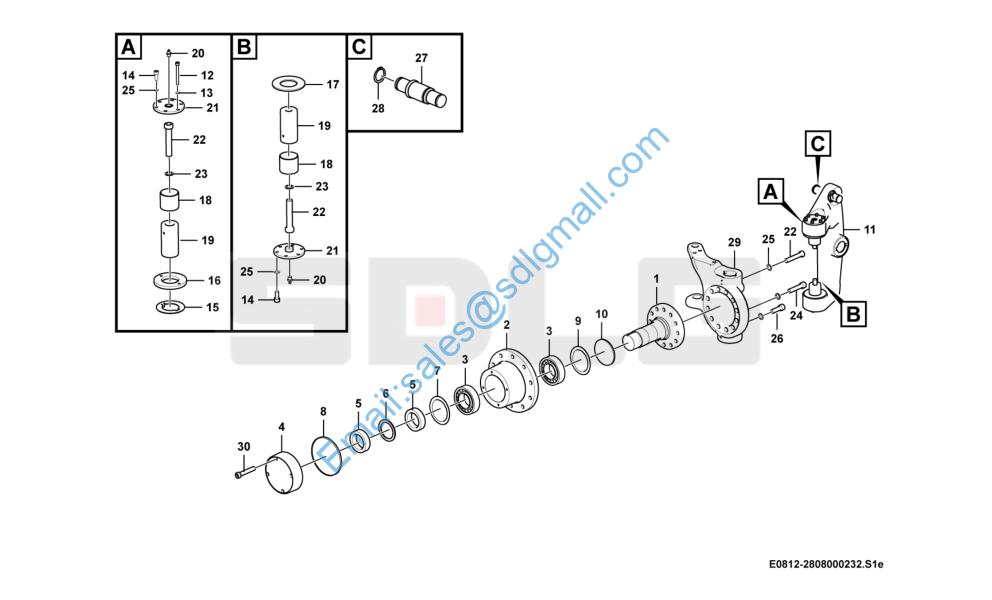

G9190 2808000232 右转向总成 Right axle member

1 28080001952 车轮轴 Shaft Y 1

2 28080002962 轮毂 Hub Y 1

3 4021000278 圆锥滚子轴承 Roller bearing Y 2

4 28080001971 轮毂盖 Wheel cap Y 1

5 4013000307 螺母GB812-M85*2 Nut Y 2

6 4015000367 止动垫圈GB858－85 Lock washer Y 1

7 28080002471 垫片 Washer Y 1

8 4030000954 O型圈154.5*3GB3452.1-82 O-ring Y 1

9 4110003062 密封圈BAUSLX2-110×170×15 Sealing ring Y 1

10 4030000950 V型密封圈VA-110 V-ring Y 1

11 28080001981 右转向节 Steering knuckle Y 1

12 4014000382 螺钉GB70.1-M8*80EpZn-8.8 Screw Y 2

13 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 12

14 4014000211 螺钉GB70.1-M8*20EpZn-8.8 Screw Y 10

15 28080002241 垫片 Washer Y 1

16 28080002261 锁止垫片 Thrust bearing Y 1

17 28080002251 垫片 Washer Y 1

18 28080002141 复合轴承 Bearing Y 2

19 28080002301 销轴 Guide moulding Y 2

20 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 2

21 28080002271 盖板 Cover plate Y 2

22 4014000388 螺钉GB70.1-M20*1.5*110EpZn-12.9 Screw Y 6

23 4015000030 垫圈GB93-20-65Mn Spring washer Y 2

24 4014000390 螺钉GB70.1-M20*1.5*90EpZn-12.9 Screw Y 1

25 28080002401 垫圈 Washer Y 12

26 4014000389 螺钉GB70.1-M20*1.5*60EpZn-12.9 Screw Y 7

27 28080002331 轴 Guide moulding Y 1

28 4015000046 挡圈GB894.1-50-65Mn Retaining ring Y 1

29 28080002011 右转向架 Spindle Y 1

30 4014000144 螺钉GB70.1-M10*70EpZn-8.8 Screw Y 4
