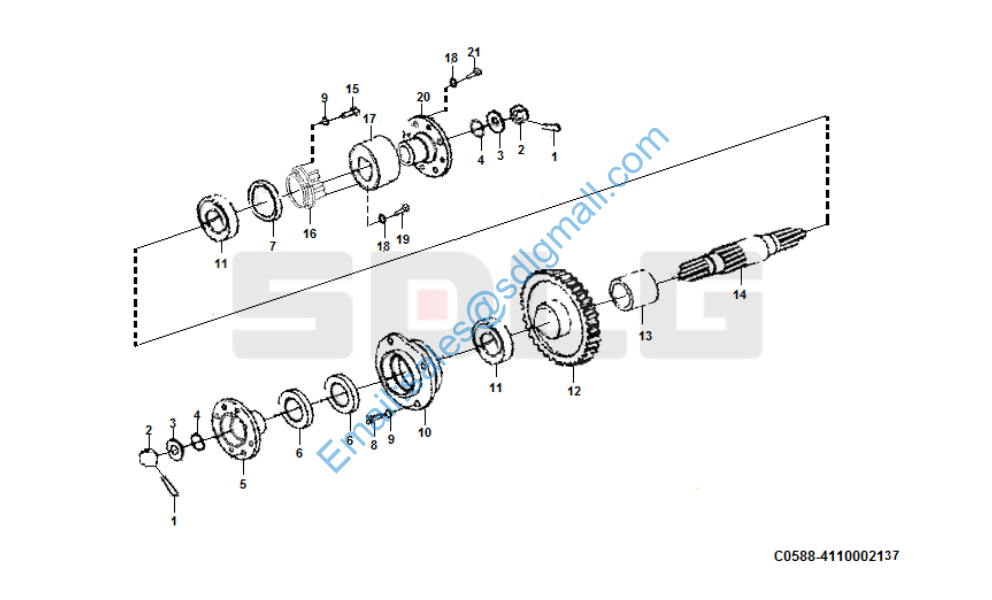

LG916 4110002137 输出轴部分(370710) Output shaft part

1 4110002137087 开口销GB91-4*40 Split pin Y 2

2 4110002137042 螺母M20*1.5 ZL15.5-8 Nut Y 2

3 4110002137043 垫圈ZL15.5-12B Washer Y 2

4 4030000178 O形圈GB3452.1-30.0*3.55G O-ring Y 2

5 4110002137044 输出法兰ZL15F-05 Flange Y 1

6 4110002137088 油封GB13871-50*80*12 Sealing ring Y 2

7 4110002137089 油封GB13871-46*80*10 Sealing ring Y 2

8 4011000747 螺栓GB5783-M12*30EpZn-10.9 Screw Y 8

9 4015000026 垫圈GB93-12-65Mn Spring washer Y 8

10 4110002137045 输出轴承座ZL15.5-9 Bearing seat Y 1

11 4021000171 P轴承GB297-30308 Roller bearing Y 2

12 4110002137046 输出齿轮ZL15.5-16 Gear Y 1

13 4110002137047 隔套ZL15.5-15 Spacer sleeve Y 1

14 4110002137048 输出轴ZL15F-10 Shaft Y 1

15 4011000090 螺栓GB5783-M12*35EpZn-8.8 Bolt Y 4

16 4110002137049 制动器座ZL15F-06.01 Seat Y 1

17 4110002137050 制动器总成DFX.2-15A Drum brake Y 1

18 4015000025 垫圈GB93-10-65Mn Spring washer Y 4

19 4011000763 螺栓GB5783-M10*30EpZn-10.9 Bolt Y 4

20 4110002137051 输出法兰 ZL15F-04 Flange Y 1

21 4011000993 螺栓GB5783-M10*25EpZn-10.9 Bolt Y 8
