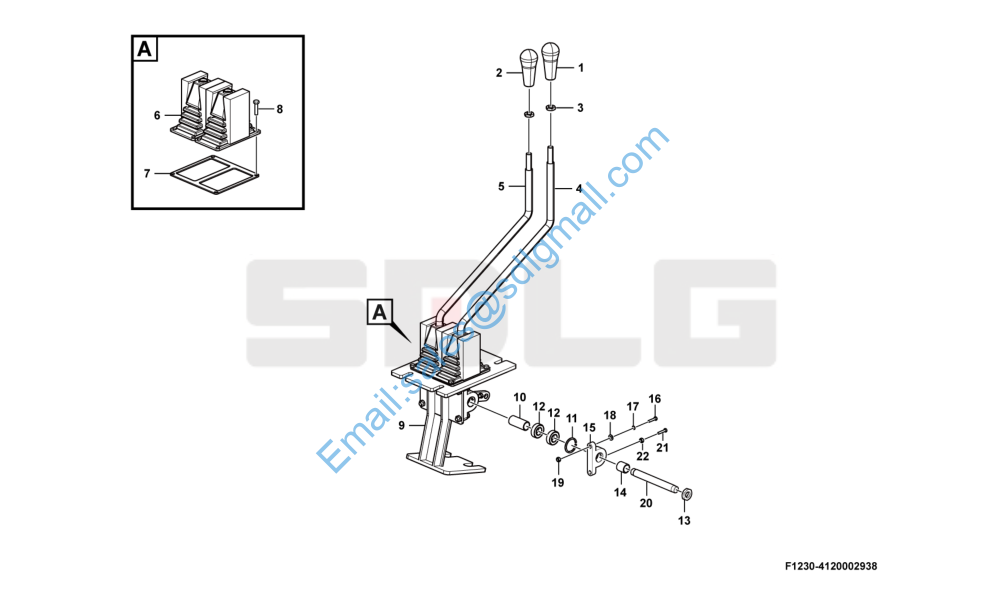

LG920 4120002938 操纵机构(130501) Hydraulic control mechanism

1 4120002148001 动臂手球LGC9530001 Handle ball Y 1
2 4120002148002 铲斗手球LGC9530002 Handle ball Y 1
3 4120002148003 M12螺母RM-007 Nut Y 2
4 4120002938001 动臂杆焊合件LGC9180012 Control lever Y 1
5 4120002938002 铲斗杆焊合件LGC9180013 Control lever Y 1
6 4120002046001 防尘套LGC9530005 Rubber sleeve Y 1
7 4120002046002 防尘套垫LGC9530006 Rubber mat Y 1
8 4120005364001 螺栓M6-12 LGC9530014 Screw Y 1
9 4120002046005 操纵支架焊合件LGC9180003 Bracket Y 1
10 4120002148007 中间轴套LGC9530013 Bushing Y 1
11 4120002148008 内卡簧KH-002 Lock ring Y 4
12 4120002148009 6003轴承ZC-002 Bearing Y 4
13 4120002148010 M16薄螺母LGC9530011 Nut Y 2
14 4120002148011 轴套LGC9530010 Bushing Y 2
15 4120002148012 轴座LGC9530008 Seat Y 2
16 4110000172029 M8×1.25-30螺栓LGH9530009 Screw Y 1
17 4110002042020 弹垫Φ8 TD-002 Washer Y 1
18 4110002042019 平垫Φ8 PD-002 Washer Y 1
19 4120002148013 M8螺母RM-001 Nut Y 4
20 4120002148014 轴LGC9530012 Shaft Y 1
21 4120002148015 M6-20螺栓LGC9530009 Screw Y 2
22 4120002148016 M6螺母RM-002 Nut Y 2
