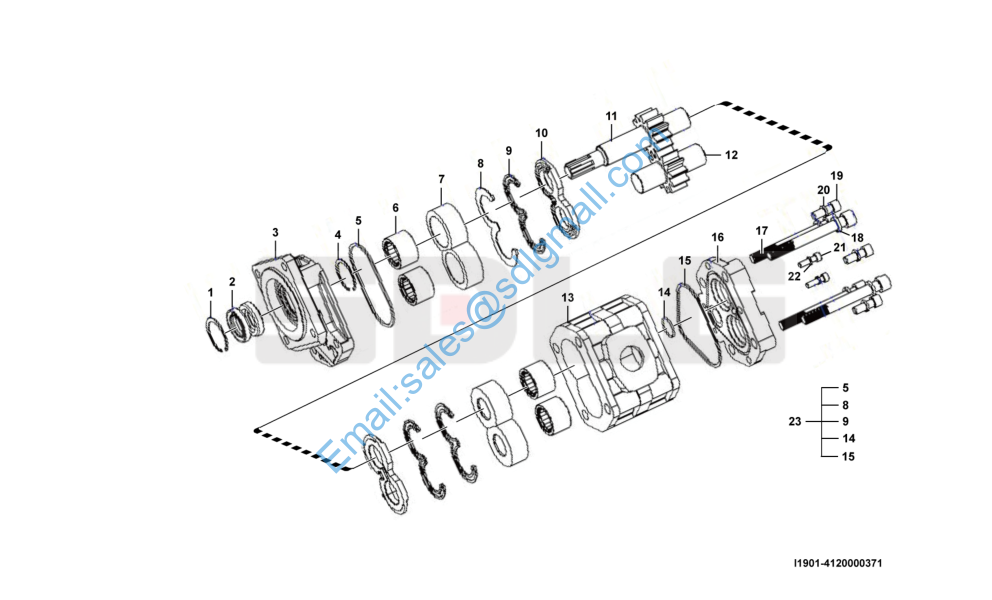

LG920 4120000371 齿轮泵(370142) Gear pump

1 4120000171044 挡圈41060100200 Retaining ring Y 1
2 4120000171045 旋转轴唇形密封圈43020200100 Sealing ring Y 2
3 4120002117001 前盖21020200110 Cover Y 1
4 4015000245 挡圈GB893.1-52-65Mn Retaining ring Y 1
5 4120000171048 环形密封圈 44020100300 Sealing ring Y 1
6 4120000171049 滚针轴承42010100100 Needle bearing Y 4
7 4120000171050 定位套21020900110 Spacer sleeve Y 4
8 4120000171051 耳形挡片21020800110 Retaining ring Y 2
9 4120000171052 耳形密封垫21020700110 Sealing washer Y 2
10 4120000171053 侧板21020600110 Side board Y 2
11 4120000371001 主动齿轮轴HGP2050矩 21020109010 Drive shaft N 1
12 4120001084004 从动齿轮轴21020409010 Shaft Y 1
13 4120000371002 泵体HGPa2050B 21030309010 Pump body N 1
14 4120005048014 O型圈43010101500 O-ring N 1
15 4120005048013 环形密封圈 44020100400 Sealing ring N 1
16 4120000371003 后盖HGPa2050B 21030509010 Cover N 1
17 4120000371005 螺钉M16x142 01017-11642 Screw Y 4
18 4015000098 垫圈GB93-16-65Mn Spring washer Y 4
19 4014000110 螺钉GB70.1-M1235EpZn-8.8 Screw Y 3 20 4015000026 垫圈GB93-12-65Mn Spring washer Y 3 21 4014000560 E-螺钉GB70.1-M830EpZn-12.9 Screw Y 2
22 4015000036 垫圈GB93-8-65Mn Spring washer Y 2
23 4120000371004 密封件包 Sealing ring kit Y 1
