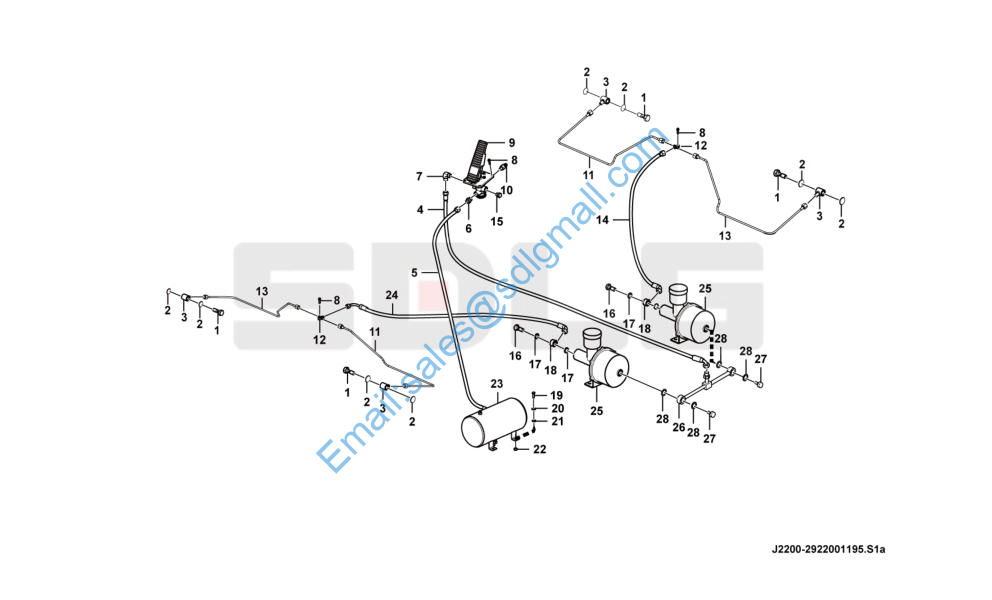

LG920 2922001195 Travel brake system

1 29220001251 制动器管接头 Nipple Y 4

2 4030000552 O形圈 O-ring Y 8

3 29220001261 制动器接头块 Block Y 4

4 4041001205 软管LGB144-105110 Hose assembly Y 1

5 4041001214 软管LGB145-205155 Hose assembly Y 1

6 29220001191 直接头 Nipple Y 2

7 29220001201 弯接头总成 Nipple Y 1

8 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 6

9 4120001795 气制动阀LY60F Brake valve Y 1

10 4120003757 制动灯开关YK209KLA Pressure switch Y 1

11 29220011181 桥油管 Brake pipe Y 2

12 29220000131 三通接头 Three-way nipple Y 2

13 29220011191 桥油管 Brake pipe Y 2

14 4041000964 软管LGB153-202170 Hose assembly Y 1

15 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 1

16 29220001231 加力泵管接头 Bolt Y 2

17 4030000551 O形圈 O-ring Y 4

18 29220001241 加力泵接头块 Nipple Y 2

19 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 8

20 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8

21 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

22 4013000007 螺母GB6170-M10EpZn-8 Nut Y 8

23 29220006611 储气罐 Air tank Y 1

24 29220006891 制动油管 Hose assembly Y 1

25 4120001985 空气加力泵SL20 Air cylinder N 2

26 29220006871 三通管 Three-way nipple Y 1

27 29010000041 螺栓 Screw Y 2

28 29220000811 垫圈 Washer Y 4
