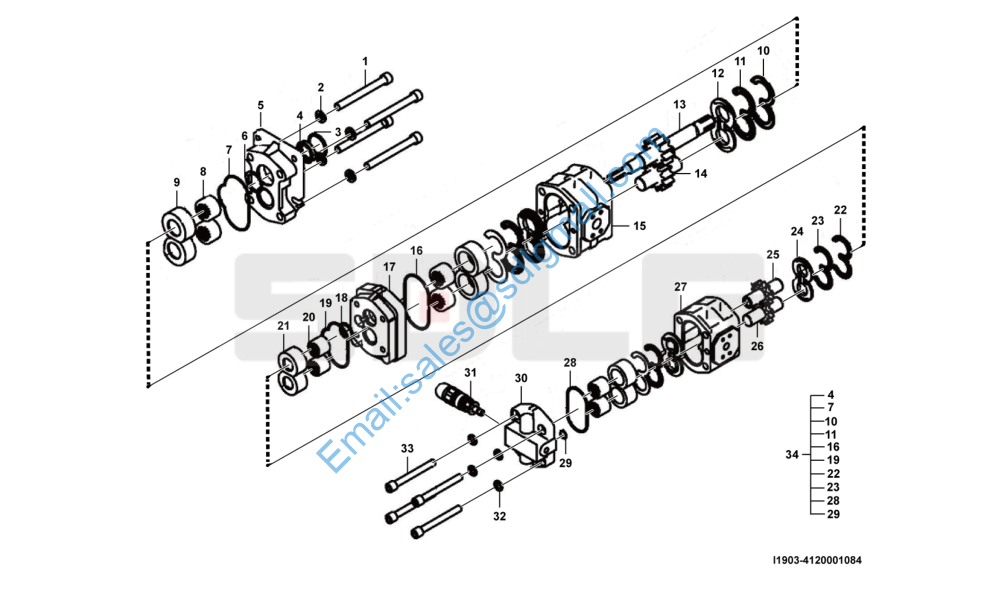

LG918 4120001084 转向泵总成(370101) Steering pump assembly

1 4120000171101 内六角圆柱头螺钉CBGj2/1-04 Screw Y 1

2 4120001969016 垫圈M16GB93-87 Washer Y 1

3 4120000171005 挡圈56 GB893.1-86 Retaining ring Y 1

4 4120000171004 旋转轴唇形密封圈GB9877.1-88 B35*56*12 Sealing ring Y 1

5 4120000171103 前盖CBGj2/1-02 Cover Y 1

6 4120000171104 挡圈GB893.1-86-52 Retaining ring Y 1

7 4120000171105 矩形密封圈CBGj2/1-T1 Sealing ring Y 1

8 4120000171002 滚针轴承644907 Needle bearing Y 1

9 4120000171106 轴套CBGj2-08 Bushing Y 1

10 4120000171107 耳形挡片CBGj2-05 Retaining ring Y 1

11 4120000171108 耳形密封CBGj2-03 Sealing washer Y 1

12 4120000171109 侧板CBGj2-07 Side board Y 1

13 4120000171110 主动齿轮轴ⅠCBGj2/1-01 Drive shaft Y 1

14 4120005357010 从动齿轮轴CBGj1-06 Shaft Y 1

15 4120000171111 泵体ⅠCBGj2/1-05 Pump body Y 1

16 4120000171112 矩形密封圈CBGj2-T1 Sealing ring Y 1

17 4120000171113 中间体CBGj2/1-03 Centering block Y 1

18 4120000171114 挡圈GB893.1-86-40 Retaining ring Y 1

19 4120000171115 矩形密封圈CBGj1/1-T1 Sealing ring Y 1

20 4120002486003 轴承 644906 Bearing Y 1

21 4120002486004 轴套 CBGj1-10 Sleeve Y 1

22 4120005357006 耳形挡片CBGj1-09 Retaining ring Y 1

23 4120005357007 耳形密封CBGj1-08 Sealing ring Y 1

24 4120005357008 侧板CBGj1-07 Side plate Y 1

25 4120005357009 主动齿轮轴II CBGj1/1-02 Drive shaft Y 1

26 4120005357010 从动齿轮轴CBGj1-06 Shaft Y 1

27 4120000171116 泵体ⅡCBGj2/1-XF-01 Pump body Y 1

28 4120002486010 矩形密封圈 CBGj1-T1 Sealing ring Y 1

29 4030000493 O形圈GB3452.1-15.0*2.65G O-ring Y 1

30 4120001969033 溢流阀DBDS10K10/5.0 Valve Y 1

31 4120000171117 后盖CBGj2/1-XF-02 Cover Y 1

32 4120000171119 弹簧垫圈GB93-87-14 Spring washer Y 1

33 4120002486014 螺栓M14*133.5 CBGj1-01 Screw Y 1

34 4120000171120 密封件包 Sealing ring kit Y 1
