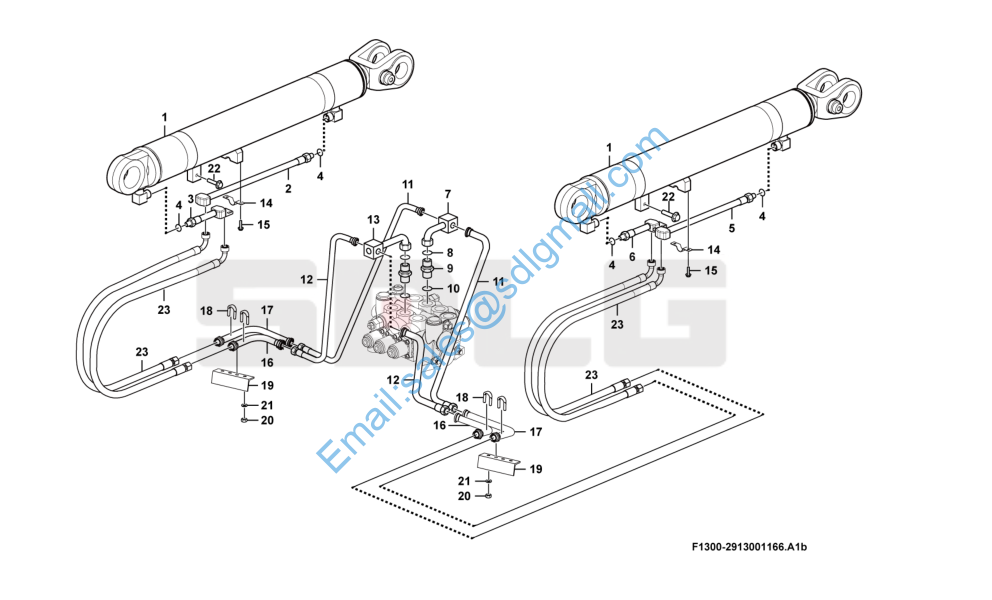

LG918 2913001166 Lifting cylinder system

1 4120001153 动臂油缸HSGL-90*50*640-965 Lifting cylinder Y 2

2 29130006521 左动臂缸小腔钢管 Pipe Y 1

3 29130006531 左动臂缸大腔钢管 Pipe Y 1

4 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 4

5 29130006541 右动臂腔小腔钢管 Pipe Y 1

6 29130006551 右动臂缸大腔钢管 Pipe Y 1

7 29130008271 动臂联三通钢管 Pipe Y 1

8 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

9 4041000582 直接头LGB120-02630 Nipple Y 2

10 4041000685 O形圈LGB168-12631 O-ring Y 2

11 4041000827 软管LGB128-406080 Hose assembly Y 2

12 4041001375 软管LGB128－406070 Hose assembly Y 2

13 29130006561 动臂联三通钢管 Pipe Y 1

14 29130009681 管夹 Clamp Y 2

15 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

16 29130006571 动臂联大腔二通钢管 Pipe Y 2

17 29130006581 动臂联小腔二通钢管 Pipe Y 2

18 4041001225 U形螺栓LGB159-11826 U-bolt Y 4

19 4041001226 底板LGB160-1826 Bracket Y 4

20 4013000028 螺母GB6170-M6EpZn-8 Nut Y 8

21 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 8

22 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2

23 29130006591 动臂缸胶管 Hose assembly Y 4
