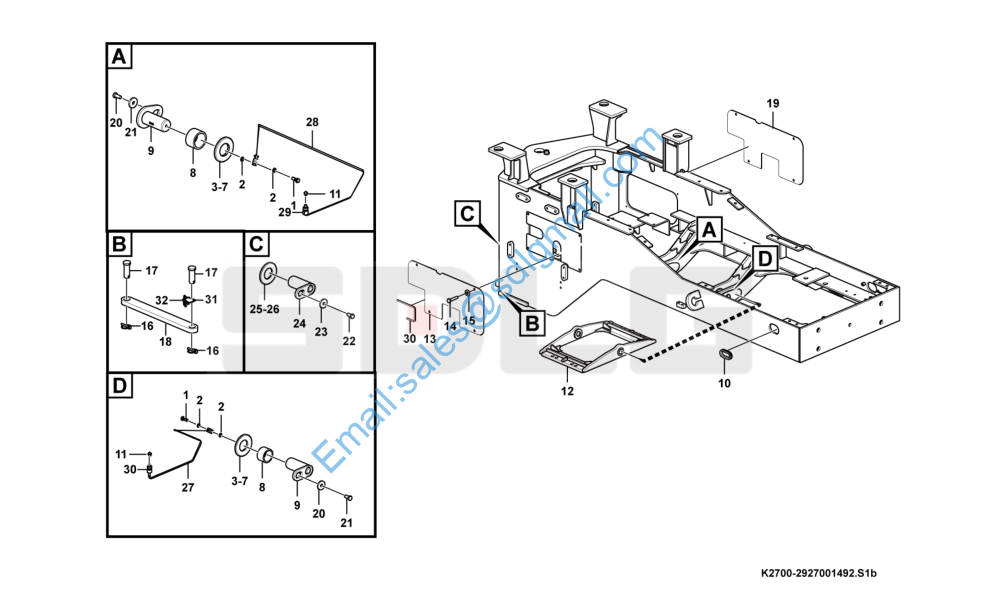

LG933L K2700-2927001492 Rear frame and accessories

1 29250000291 通油螺栓 Bolt Y 2

2 29250000301 垫片 Shim Y 6

3 29270009321 调整垫片 Shim Y 2

4 29270009311 调整垫片 Shim Y 2

5 29270001071 调整垫片 Shim Y 2

6 29270001061 调整垫片 Shim Y 2

7 29270001051 调整垫片 Shim Y 2

8 29270007831 套 Bushing Y 2

9 29270016001 焊接销轴 Pin Y 2

10 29270009101 走线胶套 Rubber sleeve Y 2

11 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

12 29270007841 副车架 Rear axle bridge Y 1

13 29270014941 右盖板 Cover plate Y 1

14 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 8

15 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8

16 29270000081 卡环 Lock ring Y 2

17 29270013881 锁定销轴 Pin Y 2

18 29270013891 锁定杆 Lock lever Y 1

19 29270014931 左盖板 Cover plate Y 1

20 4040000001 垫圈LGB001-12 Washer Y 2

21 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

22 4011000089 螺栓GB5783-M12*30EpZn-8.8 Bolt Y 2

23 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

24 29270018131 后转向销轴 Pin Y 2

25 4043000064 垫片LGB303-40*70*1 Shim Y 4

26 4043000325 垫片LGB303-40*70*2 Shim Y 4

27 29270014501 后输油管 Lubricating pipe Y 1

28 29270014521 前输油管 Lubricating pipe Y 1

29 29250014121 接头 Nipple Y 2

30 29270011261 橡胶套 Rubber sleeve Y 2

31 29280010021 挂钩 Tensioning hook Y 1
32 29270013901 链条 Chain Y 1
