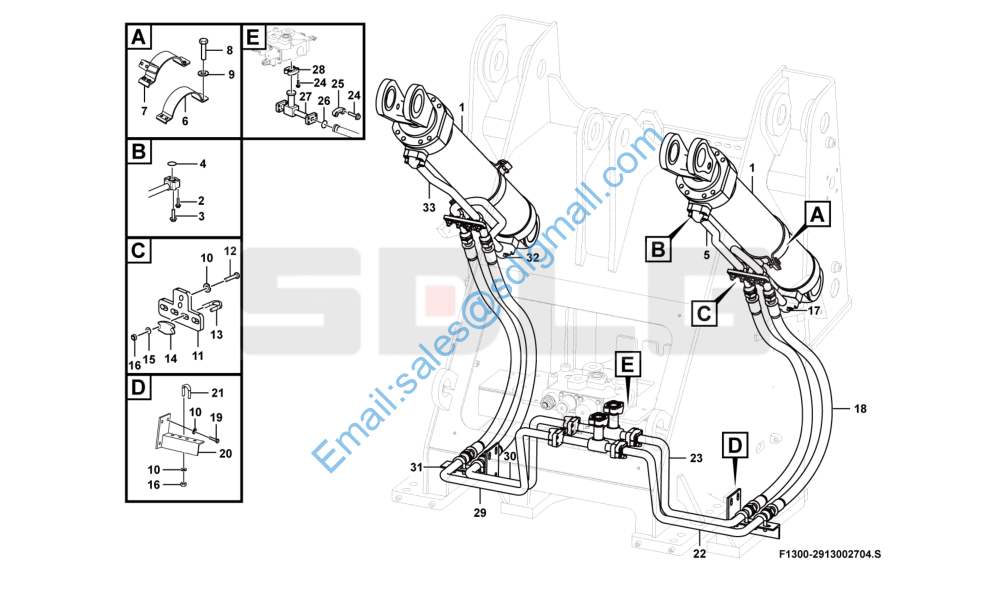

LG933L F1300-2913002704 举升缸总成 Lifting cylinder system

1 4120005979 动臂油缸HSGF-125*70*771-1240 Lifting cylinder Y 2

2 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 8

3 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 8

4 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 8

5 29130021561 左动臂小腔钢管 Pipe Y 1

6 29130022011 管夹 Clamp Y 2

7 29130022001 管夹 Clamp Y 2

8 4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 Screw Y 4

9 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4

10 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 18

11 29130021651 固定板 Plate Y 2

12 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

13 4041001000 U形螺栓LGB159-12535 U-bolt Y 4

14 4041001001 底板LGB160-2535 Plate Y 4

15 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

16 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 16

17 29130021581 左动臂大腔钢管 Pipe Y 1

18 4041000908 软管LGB127-012120 Hose Y 4

19 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 6

20 29130004091 固定支架A Bracket Y 1

21 4011000490 U形螺栓JB/ZQ4321-25Zn-Q235A.F U-bolt Y 4

22 29130016271 阀至举升缸左大腔钢管 Pipe Y 1

23 29130016291 阀至举升缸左小腔钢管 Pipe Y 1

24 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 24

25 4041000137 分体法兰LGB117-306400 Flange half Y 4

26 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2

27 29130008611 动臂联三通钢管 Pipe Y 2

28 4041000043 分体法兰LGB117-310490 Flange half Y 2

29 29130016311 阀至举升缸右大腔钢管 Pipe Y 1

30 29130016331 阀至举升缸右小腔钢管 Pipe Y 1

31 29130004111 固定支架B Bracket Y 1
32 29130021621 右动臂大腔钢管 Pipe Y 1
