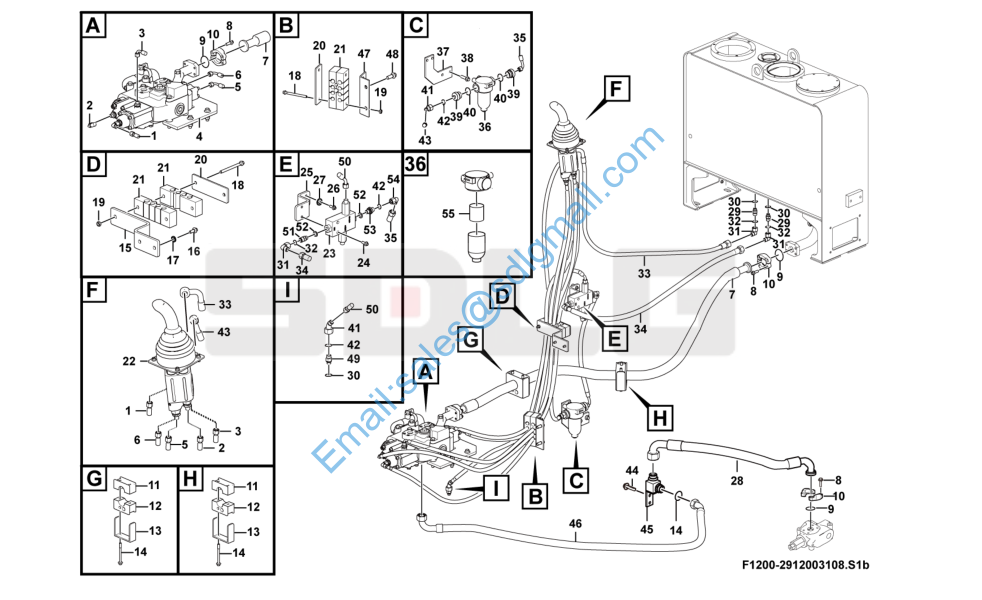

LG933L F1200-2912003108 液压操纵总成 Hydraulic control system

1 4041002009 软管LGB124-004297 Hose assembly Y 1

2 4041001927 软管LGB125-003290 Hose assembly Y 1

3 4041001435 软管LGB125-003280 Hose assembly Y 1

4 29120031091 多路阀DFSY-25-16部装 Control valve N 1

5 4041002010 软管LGB125-003233 Hose assembly Y 1

6 4041002348 软管LGB125-003240 Hose assembly Y 1

7 4041002007 软管LGB163-012194 Hose assembly Y 1

8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 12

9 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 3

10 4041000056 分体法兰LGB117-312550 Flange half Y 3

11 29120030951 橡胶管夹 Hose clamp Y 2

12 29120030961 橡胶管夹 Hose clamp Y 2

13 29120030971 压板 Plate Y 2

14 4011000797 螺栓GB5782-M10*110EpZn-8.8 Bolt Y 4

15 29120020071 弯板 Plate Y 1

16 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

17 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2

18 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 4

19 4013000033 螺母GB6170-M8EpZn-8 Nut Y 4

20 29120016351 固定板 Anchor plate Y 2

21 29120016741 管夹 Clamp Y 4

22 29120031101 先导阀总成GDXS2-DT部装 Control lever N 1

23 4120005063 压力选择阀SF8-D Valve Y 1

24 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2

25 29120031111 压力选择阀固定板 Plate Y 1

26 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 2

27 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

28 29120005071 优先阀EF口胶管 Hose assembly Y 1

29 4041000150 直接头LGB120-01814 Nipple Y 2

30 4041000767 O形圈LGB168-11124 O-ring Y 3

31 4041001063 组合接头LGB143-01810 Nipple Y 3

32 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 3

33 29120031261 先导阀回油胶管 Hose assembly Y 1

34 4041002008 软管LGB164-005109 Hose assembly Y 1

35 4041000576 软管LGB125-004065 Hose assembly Y 1

36 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

37 29120016021 固定板 Anchor plate Y 1

38 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 4

39 29120015081 接头 Nipple Y 2

40 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

41 4041001521 组合接头LGB143-11608 Nipple Y 2

42 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 3

43 29120022931 先导进油管 Hose assembly Y 1

44 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 2

45 29120005081 二通接头 Nipple Y 1

46 29120024011 多路阀进油胶管 Hose assembly Y 1

47 29120016371 固定弯板 Plate Y 1

48 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 2

49 4041000604 直接头LGB120-01614 Nipple Y 1

50 4041001187 软管LGB125-004230 Hose Y 1

51 29120007661 接头 Nipple Y 1

52 29120014931 垫圈 Washer Y 2

53 29120007651 接头 Nipple Y 1

54 4041001023 组合接头LGB143-01608 Nipple Y 1

55 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
