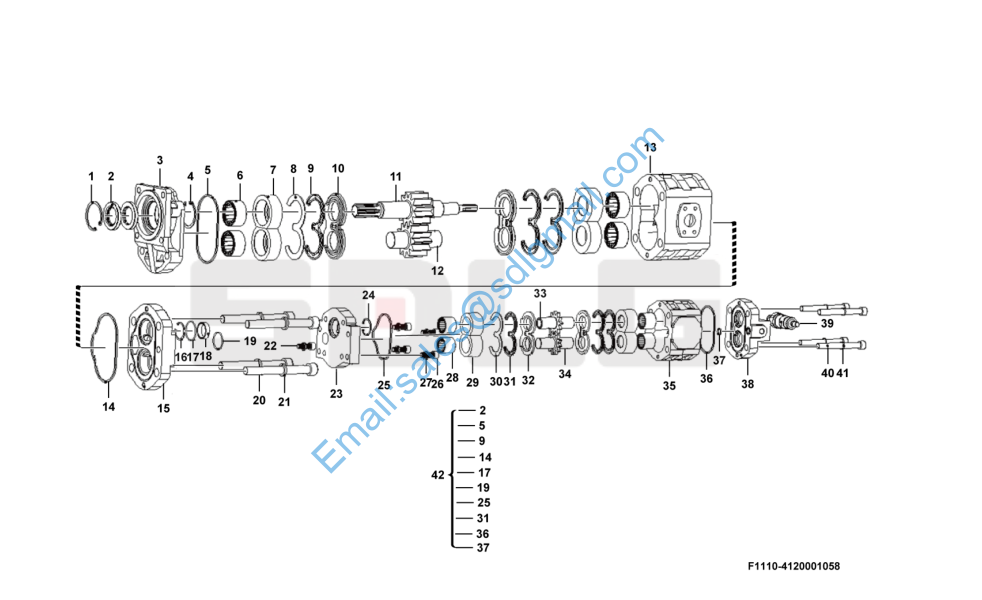

LG933L F1110-4120001058 工作液压泵总成(370142) Working hydraulic pump assembly

1 4120001715001 挡圈41060100400 Retaining ring Y 1
2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2
3 4120001715004 前盖21050200110 Cover Y 1
4 4120001715003 挡圈41060100300 Retaining ring Y 1
5 4120005081002 环形密封圈44020100700 Sealing ring Y 1
6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4
7 4120001715007 定位套21050900110 Spacer sleeve Y 4
8 4120001715008 耳形挡片21050800110 Retaining ring Y 2
9 4120005666001 耳形密封垫21050700010 Sealing washer N 2
10 4120001715010 侧板21050600110 Side board Y 2
11 4120001058207 主动齿轮轴ⅠHGP3100矩21081012010 Drive shaft Y 1
12 4120000903043 从动齿轮轴21050412010 Shaft Y 1
13 4120001059002 泵体21081712010 Pump body Y 1
14 4120005081005 环形密封圈 44020100800 Sealing ring Y 1
15 4120001058208 中间体ⅠHGP3/1左旋21081300210 Centering block Y 1
16 4120005081007 挡圈41060100700 Retaining ring Y 1
17 4120005081008 O形密封圈43010102600 O-ring Y 1
18 4120005081009 连接套21081600110 Engaging sleeve Y 1
19 4120005081010 O形圈43010102500 O-ring Y 1
20 4120000903045 螺钉44010102580 Screw Y 4
21 4120001715016 弹簧垫圈41050200700 Spring washer Y 4
22 4120005081011 螺钉41010102680 Screw N 1
23 4120001058209 中间体ⅡHGP3/1左旋21081400210 Centering block Y 1
24 4120000171059 挡圈41060100600 Retaining ring Y 1
25 4120000171060 环形密封圈 44020100200 Sealing ring Y 1
26 4120001715017 螺钉41010101780 Screw Y 4
27 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
28 4120000171061 滚针轴承42010100300 Needle bearing Y 4
29 4120000171062 定位套21010900110 Spacer sleeve Y 4
30 4120000171063 耳形挡片21010800110 Retaining ring Y 2

31 4120000171064 耳形密封垫21010700110 Sealing washer Y 2
32 4120000171065 侧板21010600110 Side board Y 2
33 4120000171066 主动齿轮轴21061101010 Drive shaft Y 1
34 4120000171067 从动齿轮轴21010401010 Shaft Y 1
35 4120000171068 泵体21071801010 Pump body Y 1
36 4120005081016 环形密封圈 44020100100 Sealing ring Y 1
37 4120000171069 O形圈43010102400 O-ring Y 1
38 4120000171070 后盖21070500110 Cover Y 1
39 4120000171071 直动式溢流阀46000000100 Valve Y 1
40 4120000171072 螺钉44010100180 Screw Y 4
41 4120000171073 弹簧垫圈41050200800 Spring washer Y 5
42 4120005666007 密封件包 Sealing ring kit N 1
