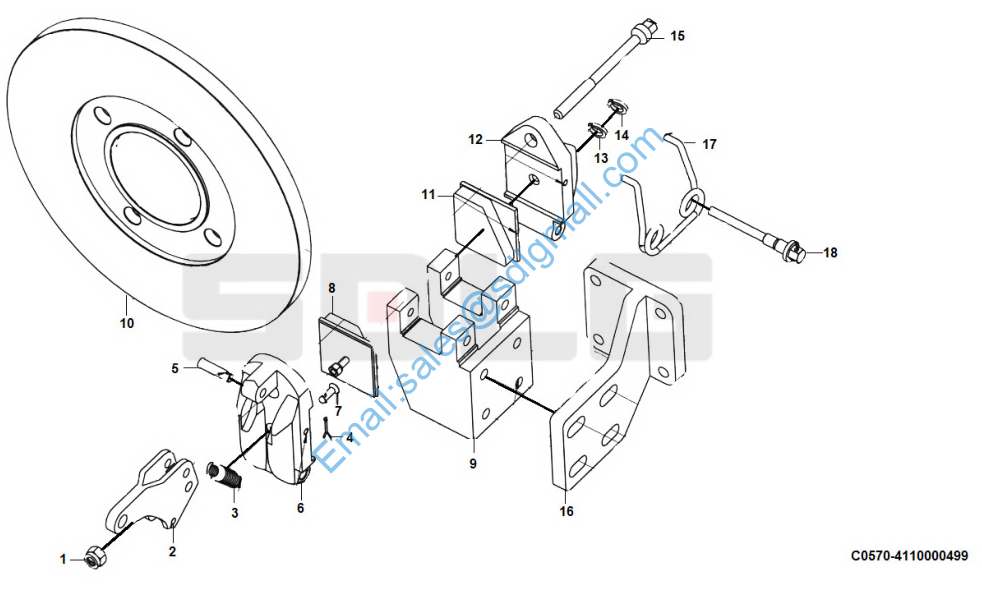

LG933L C0570-4110000499 驻车制动器总成（330101） Handbrake

1 4110000499274 锁紧螺母ZL16.15.2A-5 Nut N 1
2 4110000499202 拉柄ZL30.03L-4-0 Handle N 1
3 4110000499277 弹簧ZL16.15.2A-6 Spring N 1
4 4110000499283 开口销GB91-76 Pin N 1
5 4110000499272 销轴ZL16.15.2A-7 Pin N 1
6 4110000499271 大托架ZL16.15.2AF-3 Bracket N 1
7 4110000499276 拉销ZL16.15.2A-8 Spring pin N 1
8 4110000499280 制动片ⅠZL16.15.2A-11 Brake plate Y 1
9 4110000499286 支座ZL30.03-13 Bracket N 1
10 4110000499288 制动盘ZL30.03-15 Brake disc N 1
11 4110000499282 制动片ⅡZL16.15.2A-12 Brake plate Y 1
12 4110000499281 小拖架ZL16.15.2A-1 Bracket N 1
13 4110000499203 弹簧垫圈5 GB93-87 Spring washer N 2
14 4110000499204 螺母M5 GB41-86 Nut N 2
15 4110000499205 调整螺栓ZL16.15.2A-2 Adjusting screw N 1
16 4110000499287 支架ZL30.03-14 Bracket N 1
17 4110000499284 回位弹簧ZL30.03-9 Spring N 1
18 4110000499285 固定轴ZL16.15.2A-10 Shaft N 2
