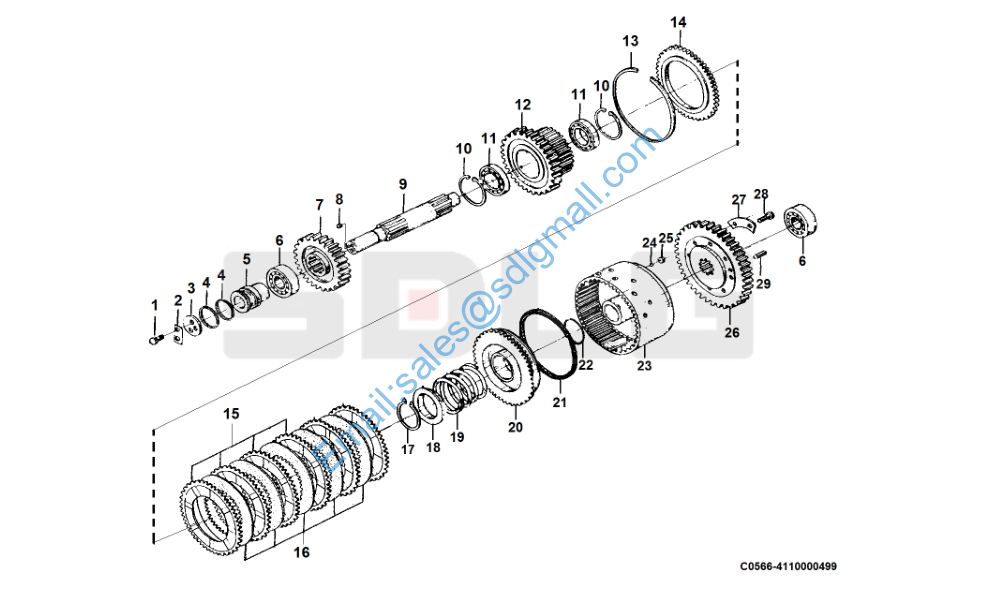

LG933L C0566-4110000499 中间轴总成（330101） Drive shaft

1 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 2

2 4110000038203 止动垫 ZL20-032001 Spacer Y 1

3 4110000038199 轴端档板 Zl20-032002A Cover plate Y 1

4 4110000038198 活塞环(Φ52)CA10-350914-A Piston ring Y 2

5 4110000038197 内封油套 ZL20-032003 Bushing Y 1

6 4021000167 P轴承GB297-32207 Bearing Y 2

7 4110000499255 齿轮ZL20-033001X1 Gear Y 1

8 4110000038175 闷塞 ZL20-032009 9 Plug Y 1

9 4110000499256 中间轴ZL20-032002 Shaft N 1

10 4015000289 挡圈GB893.1-75-65Mn Retaining ring Y 2

11 4021000010 滚动轴承GB276-6009 Ball bearing Y 2

12 4110000038213 齿轮 ZL20-033004X1 Z=41 Gear Y 1

13 4110000038179 挡圈 ZL20-032101 Retaining ring Y 1

14 4110000038180 外端盖 ZL20-032102 Cover plate Y 1

15 4110000038181 外摩擦片 1201-0007A Friction disc Y 6

16 4110000038182 内摩擦片 ZL20-032103 Friction disc Y 5

17 4015000284 挡圈GB894.2-60-65Mn Retaining ring Y 1

18 4110000038184 弹簧座 ZL20-032110 Spring seat Y 1

19 4110000038185 弹簧 ZL20-032108 Spring Y 1

20 4110000499278 活塞ZL20-032106A Piston rod Y 1

21 4110000038187 封油圈 ZL20-032107 Sealing ring Y 1

22 4030000638 O形圈GB1235-60*3.1 O-ring Y 1

23 4110000038189 离合器壳体总成 ZL20-032105 Housing Y 1

24 4090000168 钢球GB308-5-GCr6 Ball Y 1

25 4110000038191 阀座 ZL20-032109 Seat Y 1

26 4110000499257 齿轮 (Z = 54) ZL20-033005X1 Gear Y 1

27 4110000038193 止动垫 ZL20-032006 Spacer Y 4

28 4011001164 螺栓GB5783-M10*25-8.8 Screw Y 8

29 4110000499258 圆柱销 8m6×22 GB/T110-1986 Pin N 2
