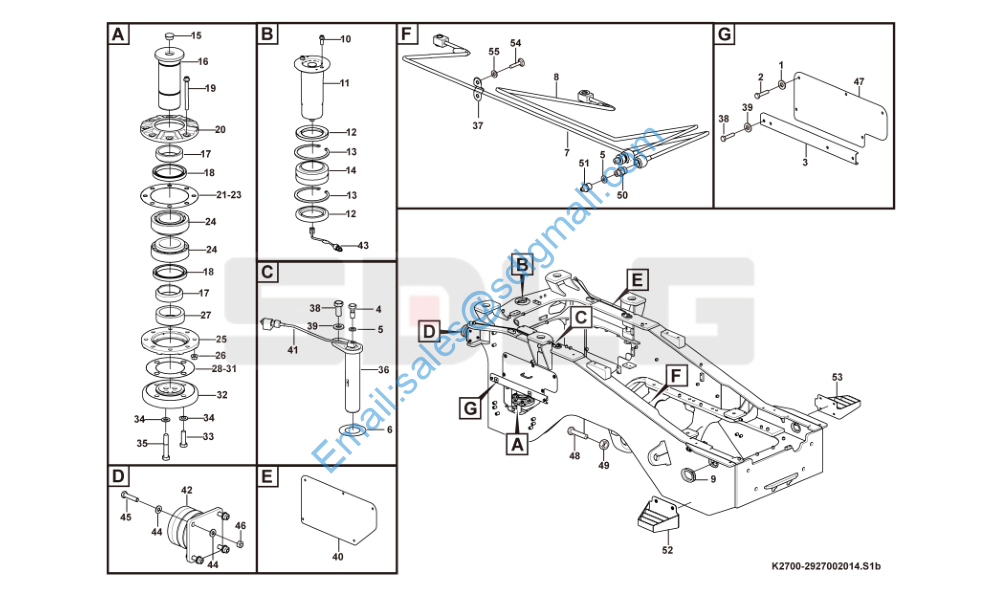

L956F K2700-2927002014 后车架附件 Rear frame system

1 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10

2 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 10

3 29270021461 固定弯板 Plate Y 1

4 29250000291 通油螺栓 Bolt Y 5

5 29250000301 垫片 Shim Y 15

6 4043000374 垫片LGB303-45*80*1 Shim Y 4

7 29270020201 油管 Lubricating pipe Y 1

8 29270020221 油管 Lubricating pipe Y 1

9 29270009101 走线胶套 Rubber sleeve Y 2

10 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

11 29270010071 上铰接销 Pin Y 1

12 29270010081 防尘圈 Sealing ring Y 2

13 4015000270 挡圈GB893.1-120-65Mn Retaining ring Y 2

14 4021000243 关节轴承GB9163-GE80ES Spherical plain bearing Y 1

15 29270009421 塑料塞 Plastic plug Y 2

16 29270010881 下铰接销 Pin Y 1

17 29270010131 套 Bushing Y 2

18 4030000260 旋转轴唇形密封圈GB9877.1-B100*125*12 Sealing ring Y 2

19 4011001316 螺栓GB16674.1-M12*120flZnyc-8.8-480 Screw Y 8

20 29270010181 盘 Flange Y 1

21 29270010161 垫片 Shim Y 1

22 29270010151 垫片 Shim Y 2

23 29270010171 垫片 Shim Y 1

24 4021000244 滚动轴承GB297-33216 Roller bearing Y 2

25 29270010141 盘 Flange Y 1

26 4013000385 螺母GB6177.1-M12flZnyc-10-480 Nut Y 8

27 29270010891 套 Grommet Y 1

28 29270010241 垫片 Shim Y 1

29 29270010251 垫片 Shim Y 1

30 29270010231 垫片 Shim Y 1

31 29270010221 垫片 Shim Y 1

32 29270010261 盘 Flange Y 1

33 4011001328 螺栓GB5783-M16*50flZnyc-8.8-480 Screw Y 4

34 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 8

35 4011001267 螺栓GB5782-M16*90flZnyc-8.8-480 Screw Y 4

36 29270010271 转向销轴 Pin Y 2

37 29250000311 管夹 Clamp Y 1

38 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 13

39 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 12

40 29270012871 右盖板 Plate Y 1

41 29270020181 油管 Lubricating pipe Y 2

42 4190001829 缓冲器 Absorber Y 2

43 29270014461 油管 Lubricating pipe Y 1

44 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 16

45 4011001304 螺栓GB5783-M10*45flZnyc-8.8-480 Screw Y 8

46 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8

47 29270012232 左盖板 Cover plate Y 1

48 4011000220 螺栓GB5783-M20*55EpZn-8.8 Bolt Y 4

49 4013000020 螺母GB6170-M20EpZn-8 Nut Y 4

50 29250014121 接头 Nipple Y 5

51 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 6

52 29270010781 左踏脚 Foot step Y 1

53 29270010821 右踏脚 Foot step Y 1

54 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 2

55 4015000035 垫圈GB93-6-65Mn Spring washer Y 2
