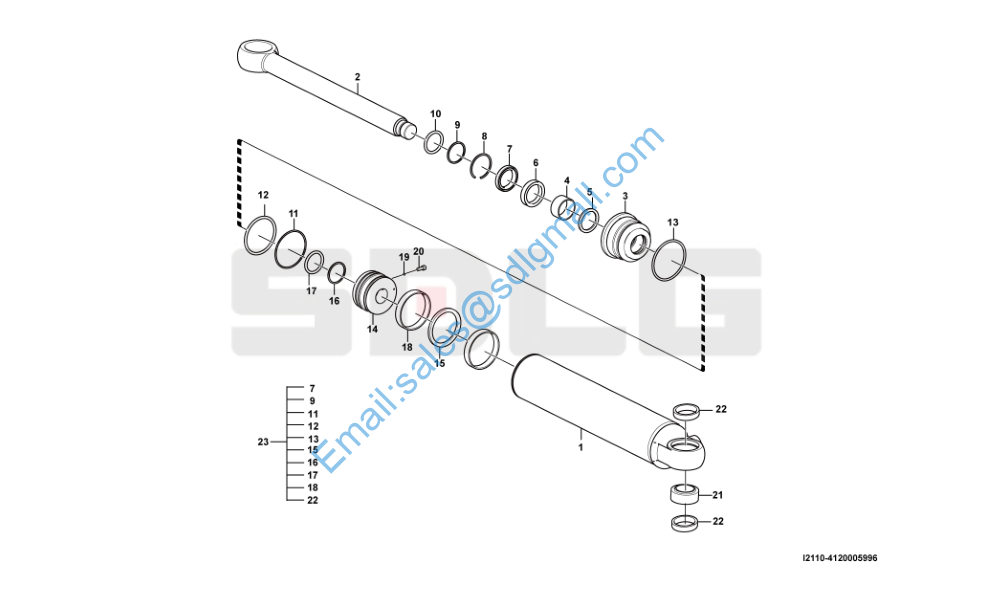

L956F I2110-4120005996 右转向油缸(3731CH) Steering cylinder

1 4120005996001 缸筒总成-右24A139150 Cylinder tube Y 1
2 4120005996002 活塞杆总成24A114170 Piston rod N 1
3 4120006629003 缸盖24C105110 Cover Y 1
4 4120006629004 衬套24S250251 Bushing Y 1
5 4120006629005 钢丝挡圈-孔用24C090100 Retaining ring Y 1
6 4120006629006 密封件-缓冲24H005004 Sealing ring N 1
7 4120005996004 密封件-活塞杆24F205003 Sealing ring N 1
8 4120006629008 挡圈-U形圈24E005025 Retaining ring Y 1
9 4120005996005 密封件-防尘24D205002 Sealing ring N 1
10 4120006629009 钢丝挡圈-孔用24C090130 Retaining ring Y 1
11 4120005996006 O形圈24K10850A Sealing ring N 1
12 4120005996007 挡圈-O形圈24M10900D Sealing ring N 1
13 4120006118013 O形圈24K309001 Sealing ring N 1
14 4120006629010 活塞24C106100 Piston Y 1
15 4120006118016 密封件-活塞24P209002 Sealing ring N 1
16 4120005996008 O形圈24K10500A Sealing ring N 1
17 4120005996009 挡圈-O型圈24M30550A Sealing ring N 1
18 4120006118017 支承环24G209041 Sealing ring N 2
19 4120006603018 钢球24U004001 Ball Y 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw Y 1
21 4120005996003 轴套24C116070 Bushing Y 1
22 4120005996010 销边防尘24R304530 Sealing ring Y 2
23 4120005995003 密封件包 Sealing kit Y 1
