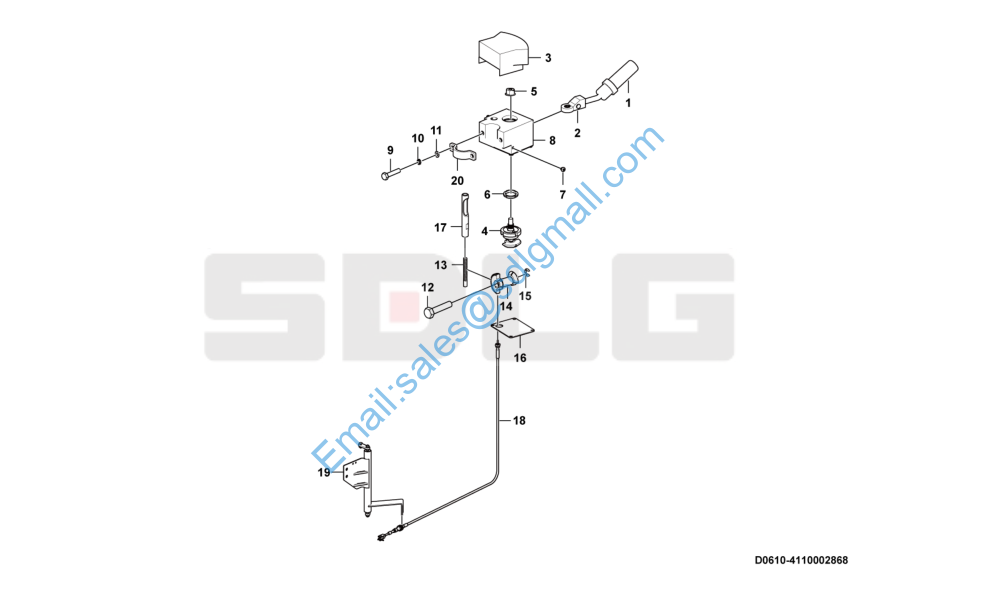

L956F D0610-4110002868 变速操纵机构(3713CH) Shift mechanism

1 4110001680001 手球LGH953N0001 Handle ball Y 1
2 4110001488001 手柄组件 LGH953N0002 Handle Y 1
3 4110001680003 盒罩焊合件LGH953N0003 Cover Y 1
4 4110001680004 轴组件LGH9530004 Shaft Y 1
5 4110000172026 M10螺母RM-006-01 Nut Y 1
6 4110000172027 M36螺母LGH9530005 Nut Y 1
7 4110000746004 M5螺栓LGH9530006 Bolt Y 7
8 4110001680005 953N铝盒LGH953N0004 Cover Y 1
9 4190002767014 M8×1.25-25螺栓LGH9180010 Bolt Y 2
10 4110002042020 弹垫Φ8 TD-002 Washer Y 2
11 4110002042019 平垫Φ8 PD-002 Washer Y 2
12 4110000172030 六方头销轴LGH9530010 Pin Y 1
13 4110000172031 齿条LGH9530012 Gear rack Y 1
14 4110001680006 齿轮套组件LGH9530011 Gear sleeve Y 1
15 4110000172032 卡簧（∮10）KH-003 Retaining ring Y 1
16 4110001680007 盒盖LGH9530013 Cover Y 1
17 4110001680008 齿条筒LGH9530014 Rack sleeve Y 1
18 4110001488002 软轴总成 LGHR956N0001 Control cable Y 1
19 4110002868001 软轴支架LGH9530001 Bracket Y 1
20 4110002868002 固定板4110001488-01 Plate Y 1
