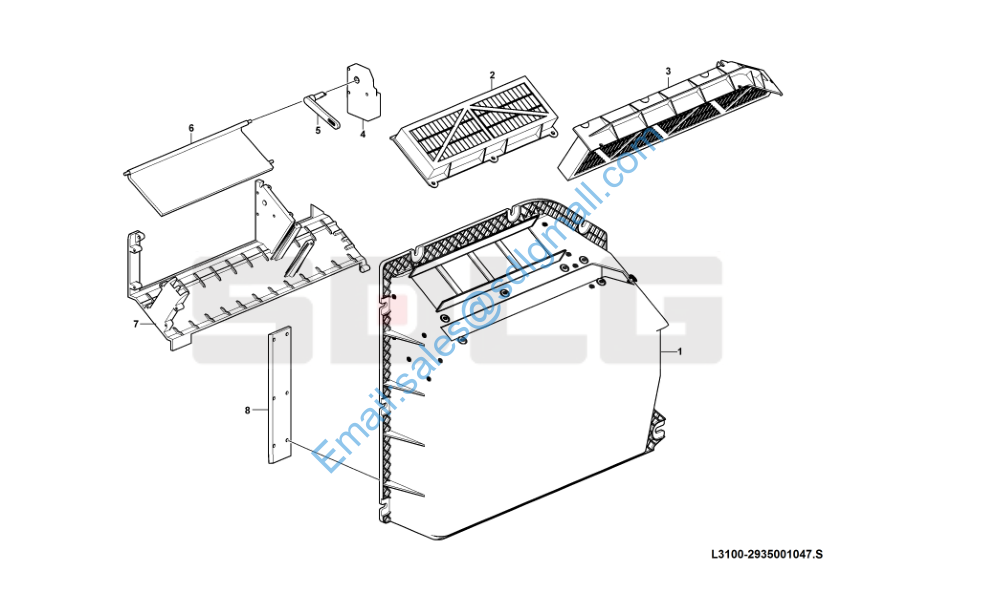

LG936L L3110-2935001047 进风系统 Fresh air inlet syetem
LG936L L3110-2935001047 进风系统 Fresh air inlet syetem
1 29350010481 进风框架 Frame Y 1
2 29350010491 新风滤网 Filter netting Y 1
3 29350010501 回风滤网 Filter netting Y 1
4 29350010541 风门电机 Control motor Y 1
5 29350010551 转轴 Rotor shaft Y 1
6 29350010561 风门 Air shield Y 1
7 29350010571 隔板 Bracket Y 1
8 29350010581 进风挡板 Air shield Y 1
