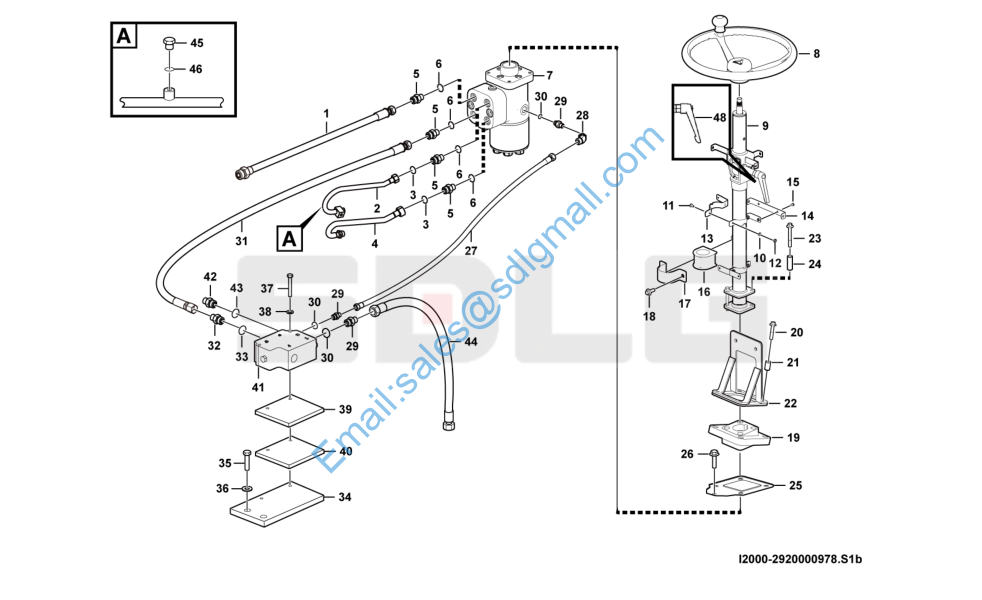

LG936L I2000-2920000978 转向器总成 Steering gear system

1 4041000516 软管LGB164-010150 Hose assembly Y 1

2 29200009671 转向器出油钢管A Pipe Y 1

3 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2

4 29200009691 转向器出油钢管B Pipe Y 1

5 4041000564 直接头LGB120-02620 Nipple Y 4

6 4041000783 O形圈LGB168-11724 O-ring Y 4

7 4120003948 转向器BZZ6-500A Control valve Y 1

8 4120003680 方向盘FXP-953 Steering wheel Y 1

9 4120004343 可调转向柱-02 Steering column Y 1

10 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 4

11 4011000194 螺钉GB818-M6*12EpZn-4.8 Screw Y 4

12 4013000028 螺母GB6170-M6EpZn-8 Nut Y 4

13 29200009431 管夹 Clamp Y 4

14 29200009421 管夹 Clamp Y 1

15 4014000048 螺钉GB818-M5*12EpZn-4.8 Screw Y 2

16 29200009081 橡胶套 Rubber sleeve Y 1

17 29200009091 管夹 Clamp Y 1

18 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 2

19 29200009361 橡胶块 Rubber mat Y 1

20 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 4

21 29200009321 钢管 Pipe Y 4

22 29200009371 固定支架 Bracket Y 1

23 4011000282 螺栓GB16674-M10*75EpZn-8.8 Screw Y 4

24 29200009311 钢管 Pipe Y 4

25 29200009561 盖板 Cover plate Y 1

26 4011000164 螺栓GB16674-M10*35EpZn-8.8 Bolt Y 1

27 4041001049 软管LGB128-003085 Hose assembly Y 1

28 4041001047 组合接头LGB143-01406 Nipple Y 1

29 4041000131 直接头LGB120-01412 Nipple Y 3

30 4041000784 O形圈LGB168-10924 O-ring Y 3

31 4041000970 软管LGB127-410155 Hose assembly Y 1

32 4041000187 直接头LGB120-02622 Nipple Y 1

33 4041000771 O形圈LGB168-11924 O-ring Y 1

34 29200008461 固定板 Anchor plate Y 1

35 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2

36 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

37 4011000536 螺栓GB5782-M8*95EpZn-8.8 Screw Y 2

38 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

39 29200009841 橡胶板 Rubber mat Y 1

40 29200010071 板 Plate Y 1

41 4120000709 优先阀VLE-150 Priority valve Y 1

42 4041000188 直接头LGB120-03028 Nipple Y 1

43 4041000779 O形圈LGB168-12331 O-ring Y 1

44 4041000514 软管LGB165-003121 Hose assembly Y 1

45 4041000774 螺塞LGB135-01422 Plug Y 1

46 4041000767 O形圈LGB168-11124 O-ring Y 1

47 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1

48 4130000896 锁紧手柄JB/T270.12-94 Switch Y 1
