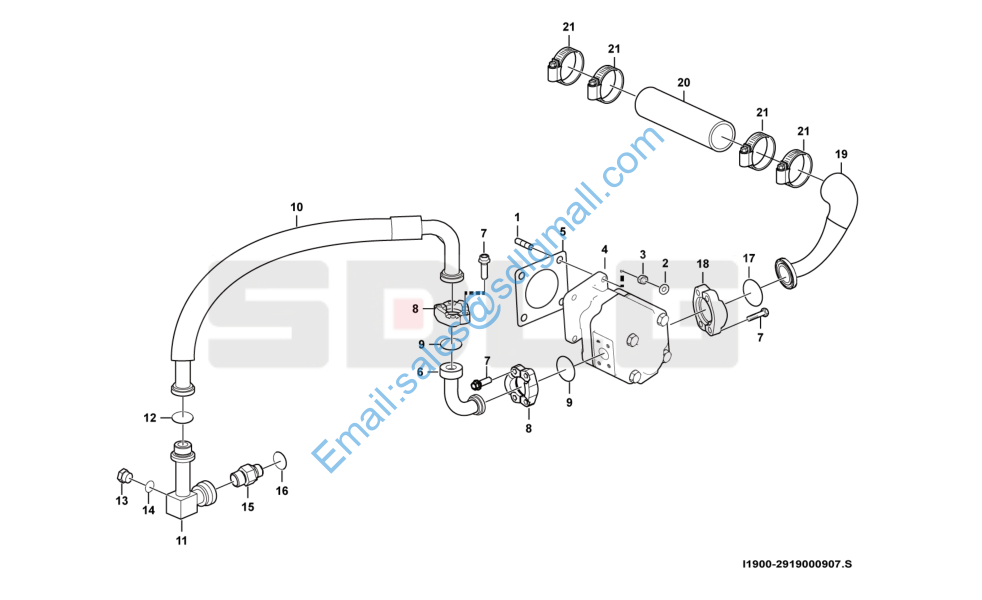

LG936L I1900-2919000907 转向泵总成 Steering pump system

1 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4

2 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4

3 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4

4 4120002117 齿轮泵CBGj2063A Gear pump Y 1

5 29110000043 泵用密封垫 Gasket Y 1

6 29190004121 转向泵出油钢管 Pipe Y 1

7 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 12

8 4041000026 分体法兰LGB117-310491 Flange half Y 2

9 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2

10 29190004131 转向泵至优先阀胶管 Hose assembly Y 1

11 29190004141 优先阀进油钢管 Pipe Y 1

12 4030000241 O形圈GB3452.1-20.0*1.80G O-ring Y 1

13 4041000774 螺塞LGB135-01422 Plug Y 1

14 4041000767 O形圈LGB168-11124 O-ring Y 1

15 4041000188 直接头LGB120-03028 Nipple Y 1

16 4041000779 O形圈LGB168-12331 O-ring Y 1

17 4030000028 O形圈GB3452.1-36.5*3.55G O-ring Y 1

18 4041000056 分体法兰LGB117-312550 Flange half Y 1

19 29190004051 转向泵吸油钢管 Pipe Y 1

20 4090000043 吸油胶管 HG4-763-45*450 Hose assembly Y 1

21 4017000007 喉箍JB8870-d60 Clamp Y 4
