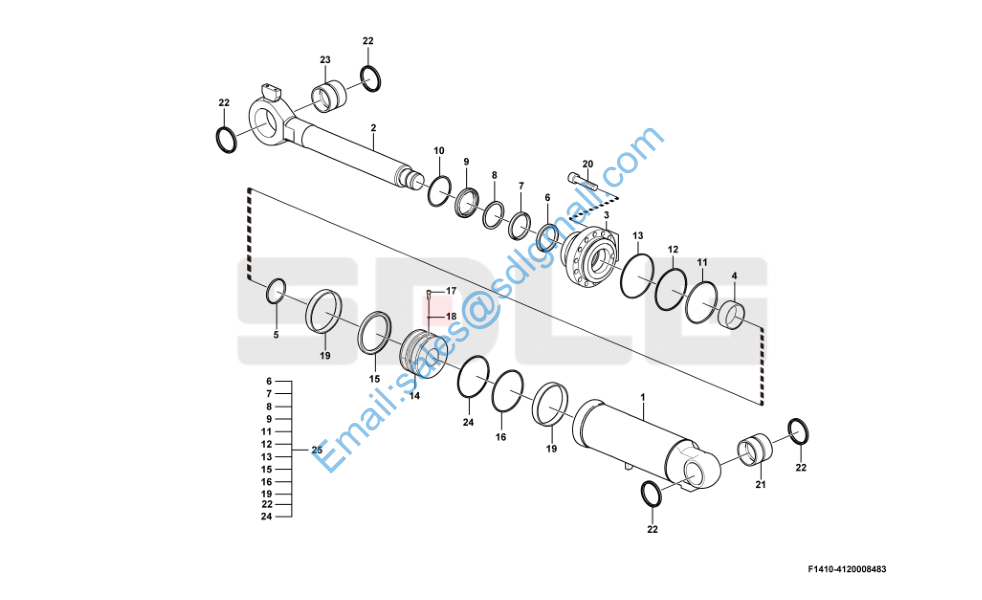

LG936L F1410-4120008483 转斗油缸(3713CH) Tilt cylinder

1 4120008483001 缸筒总成24A138980 Cylinder tube Y 1
2 4120008483002 活塞杆总成24A116220 Piston rod Y 1
3 4120008483003 缸盖24C101050 Cover Y 1
4 4120008483004 衬套24S280401 Bushing Y 1
5 4120007051007 钢丝挡圈-孔用24C090200 Retaining ring Y 1
6 4120000868034 密封件-缓冲24H008004 Sealing ring N 1
7 4120000868035 密封件-活塞杆24F208003 Sealing ring N 1
8 4120008483005 挡圈-U形圈24E00800C Retaining ring N 1
9 4120000868037 密封件-防尘24D208002 Sealing ring N 1
10 4120005980008 钢丝挡圈-孔用24C090220 Retaining ring Y 1
11 4120008483006 O形圈24K01300A O-ring N 1
12 4120008483007 挡圈-O形圈24M01400C O-ring N 1
13 4120008483008 O形圈24K314001 O-ring N 1
14 4120008483009 活塞24A181080 Piston Y 1
15 4120000868042 密封件-活塞24P214002 Sealing ring N 1
16 4120006574001 O形圈24K10800A O-ring N 1
17 4120005685008 螺钉-内六角凹端紧定24T908161 M816L Screw Y 1 18 4090000168 钢球GB308-5-GCr6 Ball Y 1 19 4120008483011 支承环24G214041 Sealing ring N 2 20 4120006000010 螺钉-内六角圆柱头24T514555 M1455L Screw Y 12
21 4120005071004 轴套 24C116300 Bushing Y 1
22 4120007051016 销边防尘24R306040 Sealing ring N 4
23 4120007777007 轴套 24C116310 Bushing Y 1
24 4120008483010 挡圈-O形圈24M10850C O-ring N 1
25 4120008483012 密封件维修包24A104640S Sealing kit Y 1
